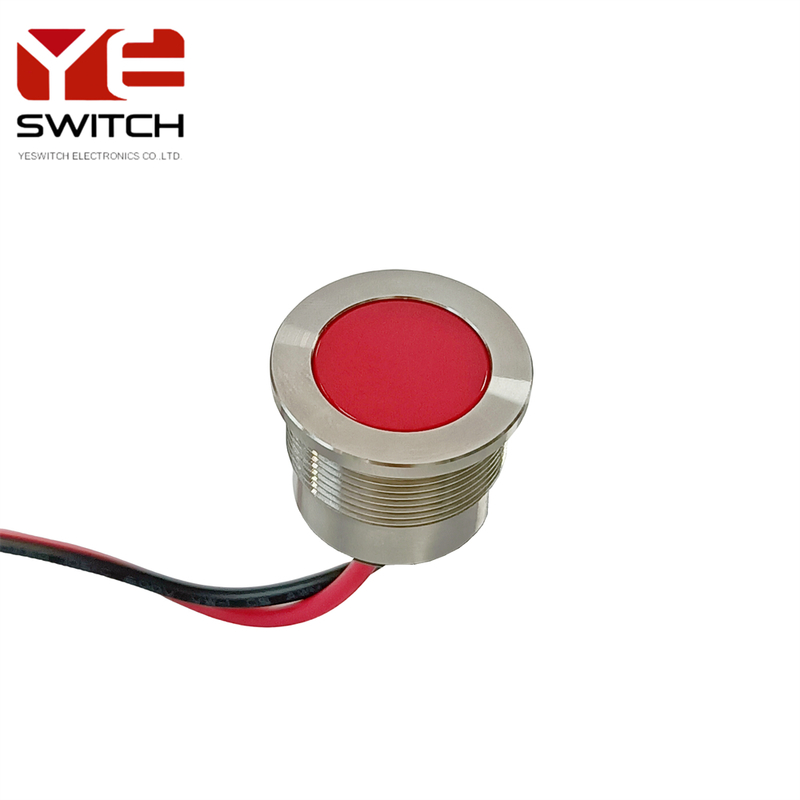

0.8cm Spst Momentary Push Button Switch 30VDC Led Push Button Switch

Name: 0.8cm Spst Momentary Push Button Switch 30VDC Led Push Button Switch
Brand: Dongguan Yeswitch Electronics Co.,Ltd
SKU: PBM-22l11
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: RoHS

Model Number: PBM-22l11

Payment & Shipping Terms

Price: Negotiable

Packaging Details: Packaging

Payment Terms: T/T

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                30vdc led push button switch, spst momentary push button switch 30vdc, 8mm led push button switch


Model NO.:	PBM-22l11	Mounting Hole:	22mm
Lamo Color:	Red	Lamp Voltage:	1.8V,3V,6V,12V,24V,110V,220V
Lamp Type:	LED	Rated Current:	2mA～20mA
Torque:	About1.2Nm	Panel Thickness:	1~10mm
Operating Temperature:	-20℃~+85℃	Solder Heat Resistance:	320℃(or 30W Soldering Iron) No More Than 2 Seconds)
Detection Method:	Nickel-plated Brass/Black-plated Brass/stainless Steel	Base Material:	PA66

Model NO.:	PBM-22l11
Mounting Hole:	22mm
Lamo Color:	Red
Lamp Voltage:	1.8V,3V,6V,12V,24V,110V,220V
Lamp Type:	LED
Rated Current:	2mA～20mA
Torque:	About1.2Nm
Panel Thickness:	1~10mm
Operating Temperature:	-20℃~+85℃
Solder Heat Resistance:	320℃(or 30W Soldering Iron) No More Than 2 Seconds)
Detection Method:	Nickel-plated Brass/Black-plated Brass/stainless Steel
Base Material:	PA66

Product Description

8mm Momentary Spst LED Round Push Button Switch

The PBL Series illuminated switches come in multiple LED colors:blue,green,red,white and yellow.Besides,the push button switch have double color LED:blue+green. The distinctive features are small size,long electrical life and high brightness LED.Button surface are illuminated.The push button switch types operate in temperatures ranging from -40 to 85°C and can be stored within that same range. These LED illuminated switches have an electrical and mechanical life expectancy of 50,000 cycles.

The PBL Series illuminated round push button switch performs momentary contact pushbutton functions with a single-pole,single-throw (SPST) circuit.The push button switch is a panel mount pushbutton meant for a round cutout sized 8mm in diameter.And the push button switch rating is 30VDC 0.1A.

The 8mm Illuminated Round Momentary SPST Push Button Switch is widely used in computer servers/peripherals,performance audio,instrumentation,telecommunications,networking and more.

POLE-POSITION :	Momentary Type, SPST with LED
CONTACT RATING :	30V DC, 0.1A
CONTACT RESISTANCE :	50mΩ max. 1.5V DC; 100mA by Method of Voltage DROP.
INSULATION RESISTANCE :	100MΩ min. 500V DC.
DIELECTRIC STRENGTH :	500V AC for 1 Minute.
OPERATING FORCE :	250± 100gf.
OPERATING LIFE :	50, 000 cycles.
OPERATING TEMPERATURE RANGE :	-40°C ~ 85°C.
TOTAL TRAVEL :	1.2± 0.3mm.
