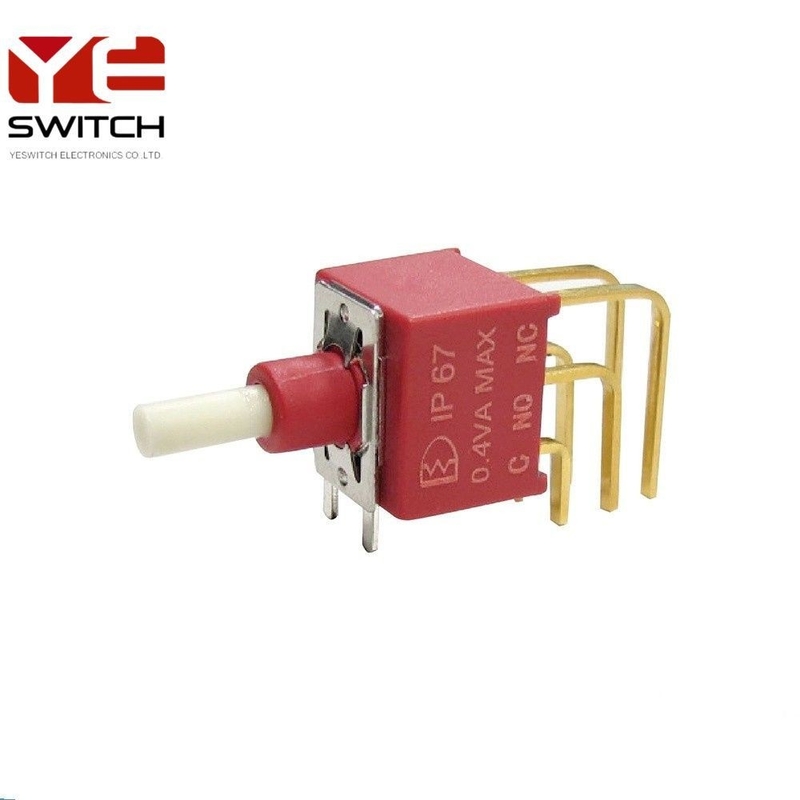

Durable Sealed Waterproof Reset Push Button Switch for Auto Parts
| Specifications |
| Contact Rating |
Dependent upon contact material see page 110 |
| Cap Installation Force |
10 lbs,max.permissible |
| Insulation Resistance |
1,000 Mfi min |
| Contact Resistance |
100mΩmax. Initial |
| Dielectric Strenngth |
1,000 Vrms min. @sea level |
| Mechanical Life |
50,000 make-and-break cycles |
| Operating Temperature |
-30°C to 85°C |
| Materials |
| Case & Bushing |
Glass filled Nylon 6/6, flame retardant,
heat stabilized (UL 94v-0) |
| Switch Support |
Brass or steel, tin plate |
| Contacts |
Phosphor bronze with silver coin |
| Terminal Seal |
Epoxy |
This high-quality push button switch is designed for automotive applications, offering durable performance, waterproof protection, and reliable reset functionality. Built to withstand harsh environments, it ensures long-lasting operation in vehicles, machinery, and other demanding settings.
Key feature
Durable Construction
Engineered with high-grade materials, our product features a rugged construction that withstands the test of time. Crafted from industrial-strength polymers and reinforced metals, it exhibits exceptional resistance to abrasion, ensuring minimal surface degradation even after prolonged use. Its robust build also excels at dampening vibrations and absorbing impacts, safeguarding internal components from damage caused by rough handling, heavy machinery operations, or transportation jolts. Whether deployed in a construction site or a high-traffic automotive application, this durable design guarantees long-term reliability.
Waterproof & Sealed (IP Rated)
Designed with a watertight seal and an IP rating that meets or exceeds industry standards, our product creates an impenetrable barrier against moisture, dust, and debris. The advanced sealing technology prevents water ingress, protecting sensitive electrical components from corrosion and short circuits. This feature makes it an ideal choice for marine applications, outdoor equipment, and automotive undercarriage installations where exposure to rain, splashes, or muddy terrain is common. With its dustproof capabilities, it maintains optimal performance in dusty industrial environments, reducing maintenance requirements and extending service life.
Reset Function
The intuitive push-to-reset function simplifies circuit management, offering a user-friendly solution for automotive and electrical systems. This convenient operation allows for quick and easy activation and deactivation, enabling seamless control over power flow. Whether used to reset safety mechanisms, restore system functions after a fault, or manage power distribution, the push-to-reset feature ensures precise and efficient operation. Its tactile feedback and responsive design provide operators with immediate confirmation of action, enhancing overall system usability and reliability.
Wide Compatibility
Engineered with versatility in mind, our product is compatible with a broad range of auto parts, control panels, marine equipment, and industrial machinery. Its adaptable design and standardized interfaces ensure seamless integration into existing systems, eliminating the need for custom modifications. In the automotive industry, it can be integrated into engine control units, lighting systems, and safety devices. For marine applications, it is suitable for navigation equipment, bilge pumps, and onboard electrical systems. In industrial settings, it works efficiently with conveyor systems, robotic arms, and automation controls, making it a go-to choice for engineers and technicians across various sectors.
Easy Installation
Featuring a compact and lightweight design, our product simplifies the installation process without sacrificing performance. Its secure mounting options, including screw holes, snap-fit connectors, and adhesive backing, allow for flexible installation on different surfaces and within confined spaces. The clear installation instructions and intuitive design enable quick setup, reducing downtime and labor costs. Whether you're a professional installer or a DIY enthusiast, the hassle-free integration ensures a smooth and efficient experience, getting your system up and running in no time.
Stable Electrical Performance
Our product is engineered to deliver unwavering electrical performance, ensuring consistent contact and minimal resistance during operation. Advanced contact materials and precision manufacturing techniques guarantee reliable switching, reducing the risk of electrical arcing, signal interference, and power loss. This stable performance is crucial for maintaining the integrity of electrical circuits, especially in applications where precise power control and signal transmission are essential. Whether in high-frequency switching scenarios or continuous power supply systems, our product provides the stability and reliability needed for optimal system performance.
ABOUT US
Yeswitch Electronics Co .,ltd., found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including Metal Push Button Switches, Automotive Switches, key switches, Push button Switches, toggle switches, Rocker switches,etc.
Yeswitch have supply all kinds of switches to global market with the good quality and Competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.
To maintain competitive edge in the global market, Yeswitch has various testing equipment and ISO 9001 quality system, it is a remarkable manufacturer with outstanding product design and development. Yeswitch products also comply with the ROHS and UL standard and meet the special demands of our customers.
Yeswitch maintains a corporate culture of integrity and honesty and we are always adhere to the three principles for better serve our customers around the globe, ie, meeting global standard, accurate operation, on time delivery.
Our Advantages
From the purchase of raw materials to the finished product, all production process (product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.) are completed in the factory. Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application. And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products. Yeswitch Electronics Co., Ltd., whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel. In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality. Therefore, our long-term customers/partners, get the best quality of the switches.
