Highlight:
push button switch 2a
, black push button switch
, black emergency stop push button
Model NO.: |
PMD16 Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Wire |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Rating: |
2A 24VDC |
Electrical Life: |
Min. 10,000 Cycles. |
Mechanical Life: |
1,000,000 Cycles. |
Insulation Resistance: |
100mΩ Min. At 500VDC |
Operating Temperature Range: |
-20°c ~ 65°c |
Travel: |
1.5(0.59inch)±0.3mm |
Ingress Protection: |
IP67 (in House Test) |
Case & Bushing: |
Nylon 6/6 |
Cap: |
Polyurethane |
Button: |
Stainless Steel |
Actuator: |
POM |
Nut: |
SPCC(Nickel Plated) |
O-Ring: |
Silicone(Translucent) |
Transport Package: |
Carton |
Specification: |
16mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Silicone Buttion |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

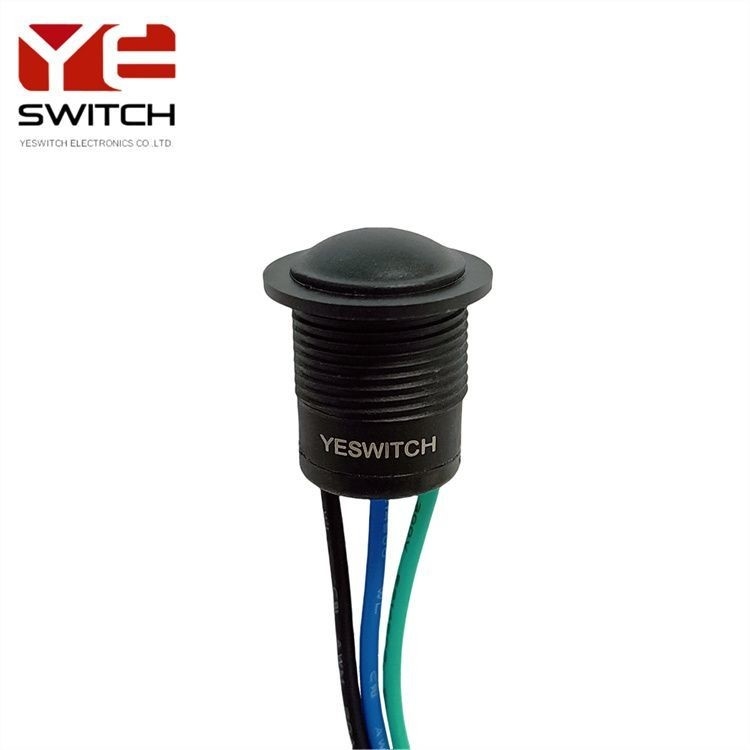

16mm Momentary Anti-vandal Push Button Switch With Wire
Description:
YESWITCH 16mm waterproof push button switch with wire harness and momentary function,which can avoid mistouch.Push button switches only reveals about 4mm, the mechanical life is up to 1,000,000 times, rating is 2A/24VDC, and automotive push button switch travel is only 1.5mm.
16mm automotive switches with whole water proof,which can reach IP67 according to our internal testing,and push button switch also has excellent anti-fouling protection.Low profile push button switches are compact and easy to operate,making them ideal for use on small devices.
16mm waterproof switch has a black plastic case bushing and button color diversity, white,black,red,yellow,green and blue options.The 16mm push button switch has SPDT,SPST-NO,SPST-NC three functions.The insulation resistance can reach 100mΩ min. at 500VDC and the torque is 0.5 to 1 Nm max.The push-button switch can adapt to ambient temperatures from -20 to 65 degrees,and has a wide range of applications.
The push button switch types is especially suitable in harsh environment,such as industrial control,lighting device,computer peripherals,communication equipment,medical equipment,marine equipment and crane equipment etc.
Specification:
| RATING: |
2A 24VDC |
| ELECTRICAL LIFE: |
Min. 10,000 cycles. |
| MECHANICAL LIFE: |
1,000,000 cycles. |
| INSULATION RESISTANCE : |
100mΩ min. at 500VDC |
| OPERATING TEMPERATURE RANGE: |
-20°C ~ 65°C |
| TRAVEL: |
1.5(0.59inch)±0.3mm |
| INGRESS PROTECTION: |
IP67 (In house test) |
Material:
| CASE & BUSHING: |
Nylon 6/6 |
| CAP: |
Polyurethane |
| Polyurethane |
Stainless steel |
| ACTUATOR: |
POM |
| NUT: |
SPCC(Nickel Plated) |
| O-RING: |
Silicone(Translucent) |
