Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: ISO, RoHS, CE
Payment & Shipping Terms
Price: Negotiable
Payment Terms: T/T
Model NO.: |
Energency Switch |
Structure: |
2-Point Contact |
Package: |
SMT Chip Package |
Application: |
Digital Products |
Shape: |
Square |
Shrapnel: |
Silver |
Function: |
Energercy Stop |
Dimension: |
19/22/25 Mm |
Color: |
Red |
Transport Package: |
50PCS/Box |
Specification: |
UL, CE, ROHS, SGS, CQC |
Trademark: |
Yeswitch |
Origin: |
Dongguan, China |
HS Code: |
853650000 |
Supply Ability: |
50, 0000/Month |
Package Size: |
16.00cm * 12.00cm * 6.00cm |
Package Gross Weight: |
0.500kg |
Model NO.: |
Energency Switch |
Structure: |
2-Point Contact |
Package: |
SMT Chip Package |
Application: |
Digital Products |
Shape: |
Square |
Shrapnel: |
Silver |
Function: |
Energercy Stop |
Dimension: |
19/22/25 Mm |
Color: |
Red |
Transport Package: |
50PCS/Box |
Specification: |
UL, CE, ROHS, SGS, CQC |
Trademark: |
Yeswitch |
Origin: |
Dongguan, China |
HS Code: |
853650000 |
Supply Ability: |
50, 0000/Month |
Package Size: |
16.00cm * 12.00cm * 6.00cm |
Package Gross Weight: |
0.500kg |
IP67/IK08 19mm/22mm/25mm metal emergency switch SPECIFICATIONS Panel Thickness: Ø19.20mm Contact Rating: lth 5A/250VAC resistive load 3A/250VAC Electrical Life: 50,000 make-and-break cycles at full load Torque: 5~14Nm Travel: About 3.0mm Operation Pressure: 1Pole 2.5±1N / 2Poles 3.5±1N Dielectric Strength: 2,000 Vrms @sea level.
MATERIALS BUSHING : Aluminum alloy BASE : PBT, PA66 ACTUATOR : Aluminum alloy INNER ASSEMBLY : POM / PA66. SPRING : Spring steel. SEALING : Sillicone. O-Ring : Sillicone TERMINAL : Brass,with silver or gold plated. HEX NUT : Nickel plated brass |
Specifications | |
Circuit | SPST.SPDT.DPST.DPDT |
Contact Rating | 1~50mA @ 5V~24VDC (resistive load) |
Insulation Resistance | 100MΩmin |
Contact Resistance | 100mΩmax. initial |
Dielectric Strenngth | 500 RMS @ sea level |
Operating Temperature | -25°C to 70°C |
Materials |
|
Housing | PBT(UL94V-0) |
Actuator | PC |
Terminal/Contact | Brass,Silver plated |

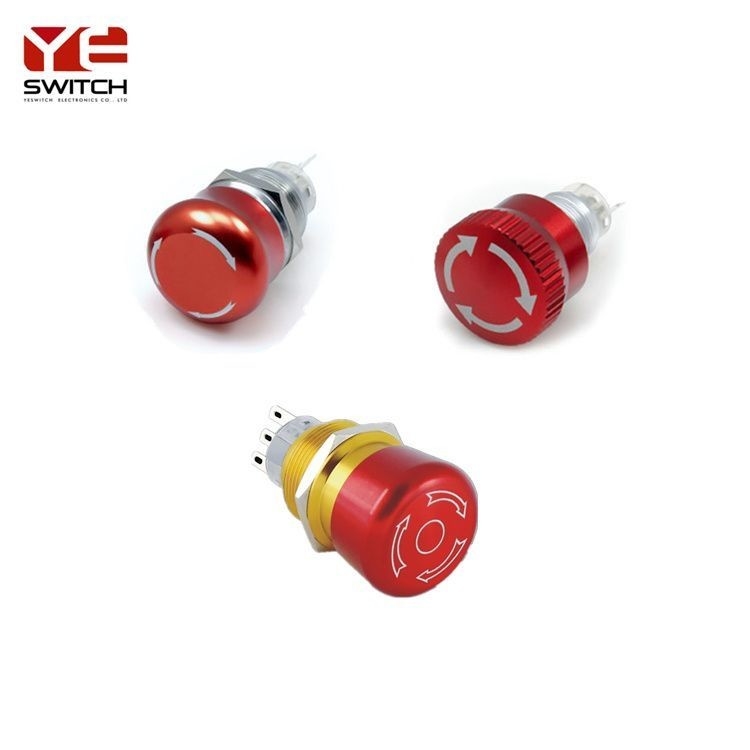

Waterproof Emergency Switch Push Button Switch
Introducing our Waterproof Emergency Switch Push Button Switch, a robust and reliable safety solution for various demanding environments. Engineered with high - grade waterproof materials, it achieves an impressive rating, effectively shielding against dust, rain, and water immersion. Whether used in outdoor construction sites, marine vessels, or industrial facilities prone to water splashes, this switch ensures uninterrupted operation.
Designed for quick and easy activation, the large push button provides a tactile response, enabling immediate emergency stop functions to protect equipment and personnel. Its durable construction can withstand frequent use and harsh conditions, withstanding extreme temperatures and impacts. The switch is also corrosion - resistant, extending its lifespan even in challenging atmospheres. With straightforward installation and compatibility with multiple systems, our waterproof emergency switch is the go - to choice for ensuring safety and reliability in any setting.
Our Advantages
From the purchase of raw materials to the finished product, all production process (product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.) are completed in the factory. Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application. And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products. Yeswitch Electronics Co., Ltd., whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel. In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality. Therefore, our long-term customers/partners, get the best quality of the switches.
About Company
Yeswitch Electronics Co .,ltd., found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including Metal Push Button Switches, Automotive Switches, key switches, Push button Switches, toggle switches, Rocker switches,etc.Yeswitch have supply all kinds of switches to global market with the good quality and Competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.
To maintain competitive edge in the global market, Yeswitch has various testing equipment and ISO 9001 quality system, it is a remarkable manufacturer with outstanding product design and development. Yeswitch products also comply with the ROHS and UL standard and meet the special demands of our customers.
Yeswitch maintains a corporate culture of integrity and honesty and we are always adhere to the three principles for better serve our customers around the globe, ie, meeting global standard, accurate operation, on time delivery.
