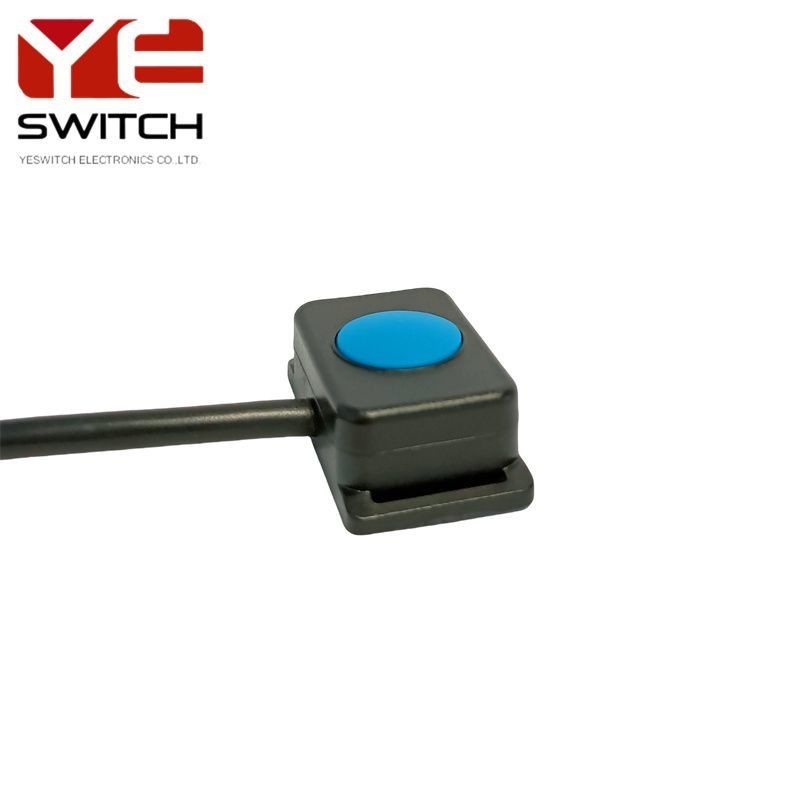

High-Performance Multi-Functional Waterproof Push Button Switch With Wire
| Bushing | PA66 |
| Base | PBT/PA66 |
| Actuator | PA66 |
| Inner Assembly | POM / Silicone. |
| Spring | Spring steel. |
| Sealing | Silicone. |
| O-Ring | Silicone |
Specification:
| Contact Rating | 1.5A 250VAC/3A 125VAC |
| Mechanical Life | Momentary 200,000 cycles
Self-lock 100,000 cycles |
| Electrical Life | 50,000 cycles make-and-break cycles |
| Torque | 5~14Nm |
| Travel | About 2.0mm |
| Operation Pressure | About 2.5N |
| Contact Resistance | 50 m ohm max. |
| Insulation Resistance | 100M ohm min. |
| Dielectric Strength | 500 Vrms @sea level. |
| Operating Temperature | -20 to 85 Degrees |
| Ingress Protection | IP68 |
| Button Color | Red/Blue |
| Function | Momentary/Self-locking |
Description:
Product features
Waterproof level:IP68 waterproof,ensuring stable operation in extremely humid or underwater environments,suitable for use scenarios exposed to moisture for a long time.
Installation method:
Handheld design:convenient for operators to carry and operate directly,suitable for occasions that require frequent movement or manual control.
Direct fixation with 3M glue:directly attached to the flat surface with high viscosity 3M glue,easy and quick installation,suitable for occasions where it is not easy to punch holes or need to be deployed quickly.
Switch type:
Self-locking switch:remains in the on state after pressing, and needs to be operated again to disconnect,suitable for applications that require continuous power supply.
Reset switch:immediately bounces back to the off state after pressing,often used in devices with single triggering or periodic operation.
Button material and color:
Silicone button:durable, soft and non-slip, providing a comfortable touch experience.
Color options:red or blue,can be selected according to the color of the device or the need for operation instructions to increase visual recognition.
Lighting options:
No light:simple design,suitable for environments with no special requirements for light.
With light:Built-in LED indicator light can intuitively display the switch status, which is convenient for operation at night or in low light.
Application field
Swimming pool equipment: such as submersible pumps, underwater lighting, etc., require the switch to have high waterproof performance to ensure safe underwater operation.
Communication radar: In complex environments such as oceans and mountains, the switch needs to have strong waterproof and dustproof capabilities to ensure the stable operation of the communication system.
Water equipment: such as jet skis, buoy lights, etc., the switch needs to be able to withstand harsh conditions such as water splashing and immersion.
Medical equipment: In key areas such as operating rooms and ICUs, the switch is required to be not only waterproof, but also easy to clean and disinfect to ensure medical safety.
Processing control: In automated production lines, food processing and other occasions, the switch needs to be durable and waterproof to cope with environmental factors such as oil, water vapor, etc.
Mechanical tools: such as power tools, garden machinery, etc., require the switch to be easy to operate, reliable, and able to adapt to the changing outdoor climate conditions.
