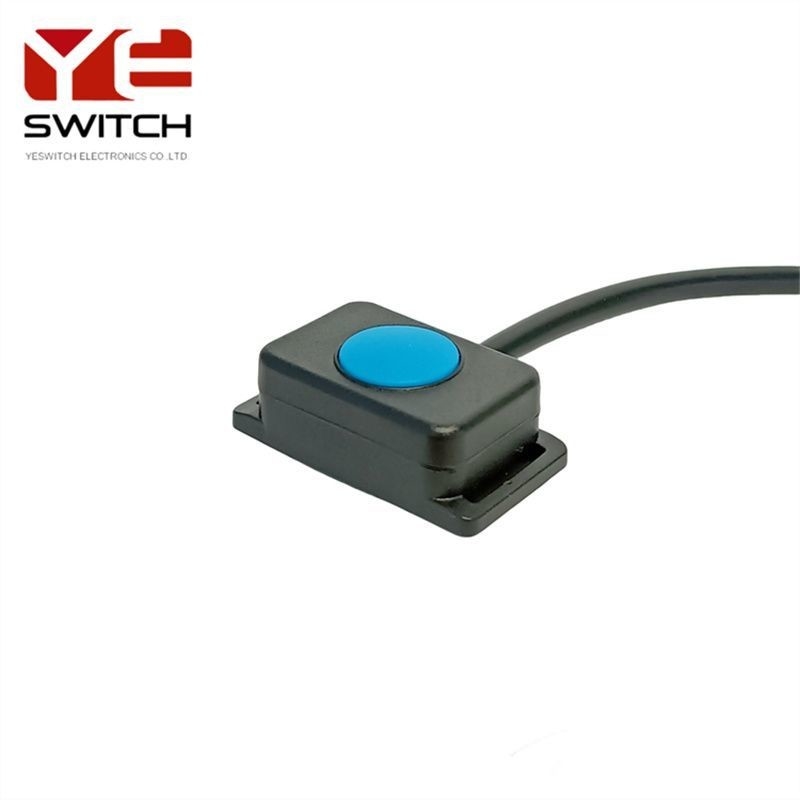

IP68 Waterproof Push Button Switch With Wire PB18 Series
| Contact Rating: |
1.5A 250VAC/3A 125VAC |
| Mechanical Life: |
Momentary 200,000 cycles
Self-lock 100,000 cycles |
| Electrical Life: |
50,000 cycles make-and-break cycles |
| Torque: |
5~14Nm |
| Travel: |
About 2.0mm |
| Operation Pressure: |
About 2.5N |
| Contact Resistance: |
50 m ohm max. |
| Insulation Resistance: |
100M ohm min. |
| Dielectric Strength: |
500 Vrms @sea level. |
| Operating Temperature: |
-20 to 85 Degrees |
| Ingress Protection: |
IP68 |
| Button Color: |
Red/Blue |
| Function: |
Momentary/Self-locking |
| Bushing : |
PA66 |
| Base : |
PBT/PA66 |
| Actuator : |
PA66 |
| Inner Assembly: |
POM / Silicone. |
| Spring : |
Spring steel. |
| Sealing: |
Silicone. |
| O-Ring : |
Silicone |
Description:
I. Product Overview
PB18 series IP68 waterproof push button switch with wire is designed for harsh environments to ensure stable and reliable operation under various complex conditions.It adopts advanced waterproof technology and reaches the IP68 waterproof level certified by TUV.It can completely prevent dust intrusion and can be used for a long time in water at a certain depth.It is an ideal choice for underwater operation and high humidity environment.
II. Product Features
Extreme waterproof performance:It meets the IP68 waterproof level certified by TUV,ensuring that it is not afraid of water intrusion in long-term underwater use (specific depth and time depend on product specifications) or high humidity environment.
Applicable to application scenarios such as swimming pools,water equipment,underwater monitoring systems,etc. that require high waterproof performance.
Flexible installation method:handheld design,easy to operate directly.
Waterproof push button switches can be directly fixed to the required position with 3M glue,without drilling installation,which is convenient and fast.
Multiple switch types:two types of switches,momentary and self-locking,are provided to meet different operation requirements.
The waterproof push button momentary switch automatically returns to the initial position after being released,which is suitable for single trigger operation.
The self-locking miniature waterproof push button switches maintains the current state after being pressed,and needs to be operated again to change.It is suitable for applications that maintain the state continuously.
Customizable cable length:The cable length can be customized according to customer needs to ensure the best use effect in different application scenarios.
Widely applicable fields:communication radar,medical instruments,processing control,mechanical tools and other industries.
Any electronic equipment or control system that needs to be waterproof,dustproof and prevent other pollutants from invading.
3. Application scenarios
Swimming pools and water entertainment facilities:used for switching operations of underwater lighting,water pump control and other equipment.
Communication radar system: ensure stable reception and transmission of signals under severe weather conditions.
Medical instruments:provide reliable control in medical equipment that requires a highly clean and waterproof environment.
Processing control and mechanical tools:ensure the normal start and stop of equipment in humid or dusty industrial environments.
