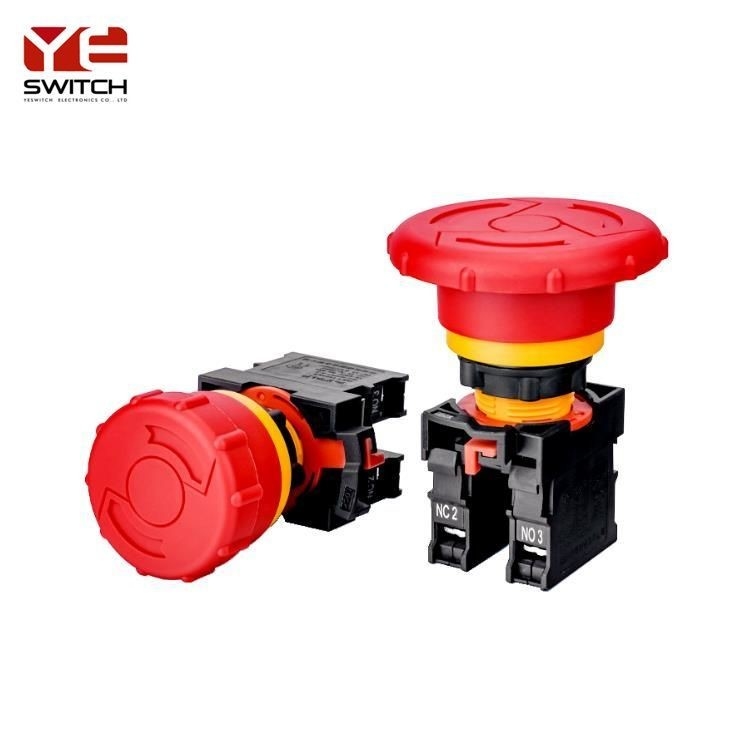

IP65 Waterproof Illuminated Latching Emergency Stop Push Button Switch
|
IP65 Waterproof Illuminated Latching Emergency Stop Push Button Switch
| Panel Thickness |
Ø22.20mm |
| Operating Types |
Emergency Switch |
| Contact Rating |
Uimp/4kV;Ui/630V;Ith/16A |
| Contact Configuration |
1NO1NC/2NO2NC/3NO3NC/4NO4NC |
| Operating Temperature |
-25ºC ~ +55ºC(no freezing) |
| Operating Humidity |
45 ~ 85%RH(no condensation) |
| Mechanical Life |
≥200,000 Cycles |
| Electrical Life |
≥50,000 Cycles |
| Contact Resistance |
≤50mΩ |
| Insulation Resistance |
≥100MΩ |
Engineered to be the ultimate safeguard for your operations, our IP65 Waterproof Illuminated Latching Emergency Stop Push Button Switch combines cutting - edge safety features with robust construction. The IP65 rating ensures complete protection against dust and can withstand water jets from any direction, making it a reliable choice for industrial settings like factories with high dust exposure, outdoor construction machinery facing unpredictable weather, and even on buses or trains in the transportation sector.
The built - in illumination, powered by long - lasting LEDs, emits a bright, clear light that stands out even in dimly lit or chaotic environments. This makes it easy for operators to locate and activate the switch immediately during emergencies, reducing response time. The latching mechanism is designed with precision; once pressed, it firmly locks the system in the emergency stop position, preventing any accidental restart until manually reset using a dedicated key or tool. This ensures maximum safety for both equipment and personnel.
Crafted from high - strength, flame - retardant materials, the switch is resistant to impact, abrasion, and chemical corrosion. It can endure extreme temperatures ranging from - 20°C to 70°C, guaranteeing consistent performance over time. With a simple installation process and compatibility with a wide range of control systems, our emergency stop switch is the trusted solution for any application where safety is non - negotiable.
Our Advantages
From the purchase of raw materials to the finished product, all production process (product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.) are completed in the factory. Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application. And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products. Yeswitch Electronics Co., Ltd., whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel. In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality. Therefore, our long-term customers/partners, get the best quality of the switches.
About Company
Yeswitch Electronics Co .,ltd., found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including Metal Push Button Switches, Automotive Switches, key switches, Push button Switches, toggle switches, Rocker switches,etc.
Yeswitch have supply all kinds of switches to global market with the good quality and Competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.
To maintain competitive edge in the global market, Yeswitch has various testing equipment and ISO 9001 quality system, it is a remarkable manufacturer with outstanding product design and development. Yeswitch products also comply with the ROHS and UL standard and meet the special demands of our customers.
Yeswitch maintains a corporate culture of integrity and honesty and we are always adhere to the three principles for better serve our customers around the globe, ie, meeting global standard, accurate operation, on time delivery.
