Highlight:
30vdc led push button switch
, spst momentary push button switch 30vdc
, 8mm led push button switch
Model NO.: |
PBL Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Solde |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Pole-Position: |
Momentary Type, Spst With LED |
Contact Rating: |
30V DC, 0.1A |
Contact Resistance: |
50mΩ Max. 1.5V DC; 100mA By Method Of Voltag |
Insulation Resistance: |
100mΩ Min. 500V DC. |
Dielectric Strength: |
500V AC For 1 Minute. |
Operating Force: |
250± 100GF. |
Operating Life: |
50, 000 Cycles. |
Operating Temperature Range: |
-40°c ~ 85°c. |
Total Travel: |
1.2± 0.3mm. |
Cap: |
PC. |
Case & Housing: |
Nylon 6/6. |
Terminals: |
Copper Alloy With Gold Plated. |
Transport Package: |
Carton |
Specification: |
8mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Flat Round Cap |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |
8mm Momentary Spst LED Round Push Button Switch
Description:

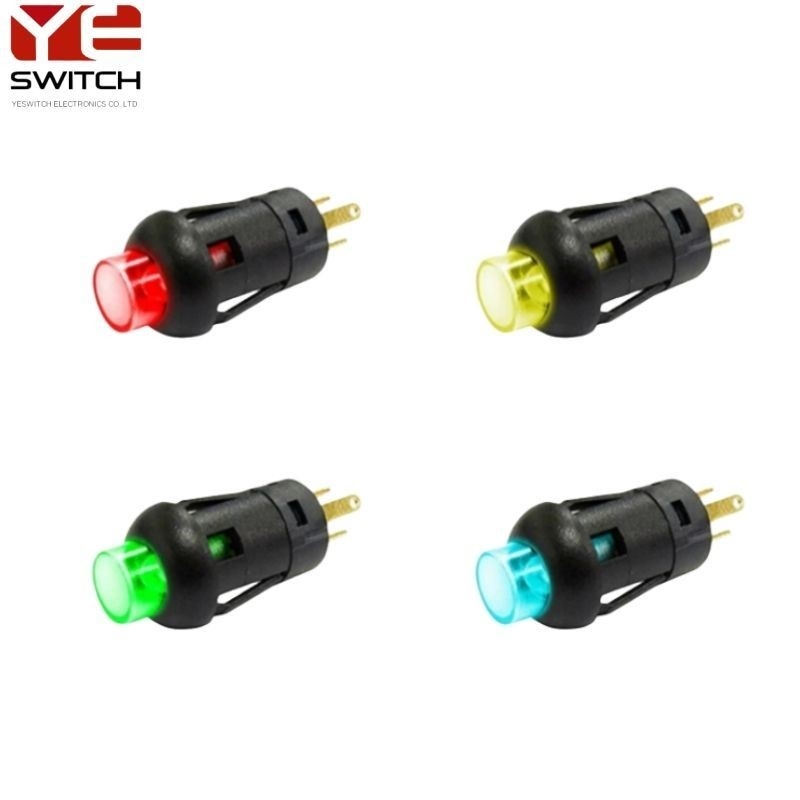

The PBL Series illuminated switches come in multiple LED colors:blue,green,red,white and yellow.Besides,the push button switch have double color LED:blue+green. The distinctive features are small size,long electrical life and high brightness LED.Button surface are illuminated.The push button switch types operate in temperatures ranging from -40 to 85°C and can be stored within that same range. These LED illuminated switches have an electrical and mechanical life expectancy of 50,000 cycles.
The PBL Series illuminated round push button switch performs momentary contact pushbutton functions with a single-pole,single-throw (SPST) circuit.The push button switch is a panel mount pushbutton meant for a round cutout sized 8mm in diameter.And the push button switch rating is 30VDC 0.1A.
The 8mm Illuminated Round Momentary SPST Push Button Switch is widely used in computer servers/peripherals,performance audio,instrumentation,telecommunications,networking and more.
Specification:
| POLE-POSITION : |
Momentary Type, SPST with LED |
| CONTACT RATING : |
30V DC, 0.1A |
| CONTACT RESISTANCE : |
50mΩ max. 1.5V DC;
100mA by Method of Voltage DROP. |
| INSULATION RESISTANCE : |
100MΩ min. 500V DC. |
| DIELECTRIC STRENGTH : |
500V AC for 1 Minute. |
| OPERATING FORCE : |
250± 100gf. |
| OPERATING LIFE : |
50, 000 cycles. |
| OPERATING TEMPERATURE RANGE : |
-40°C ~ 85°C. |
| TOTAL TRAVEL : |
1.2± 0.3mm. |
Material:
| CAP : |
PC. |
| CASE & HOUSING : |
Nylon 6/6. |
| TERMINALS : |
Copper alloy with gold plated. |
