Highlight:
400mA push button on off switch waterproof
, 24VDC push button on off switch waterproof
, safety interlock switch Explosion Proof
Model NO.: |
PA Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Solder Terminal |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Max. Current/Voltage Rating: |
400mA 24VDC |
Initlal Gontact Resistance: |
100mΩ Max |
Insulation Resistance: |
1gΩ Min. At 500VDC |
Delectric Strength: |
1.000 VAC RMS |
Electrical Life At Full Load: |
200,000 Cycles |
Panel Thickness: |
1.5mm(.059) Min- 5.5mm(.217)Max |
Total Travel: |
2.5mm(.098) |
Operating Force: |
4.5n~6.5n |
Gontact Bounce: |
10 Ms |
Toroue: |
0.5nm Max. Applied To Nut |
Soldering: |
350 Degree Max. For 5 Seconds |
Cap Color: |
White/Black/Red/Orange/Yellow/Green/Blue |
LED Color: |
White/Red/Yellow/Green/Blue/Red+Green |
Transport Package: |
Carton |
Specification: |
12mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Flat |

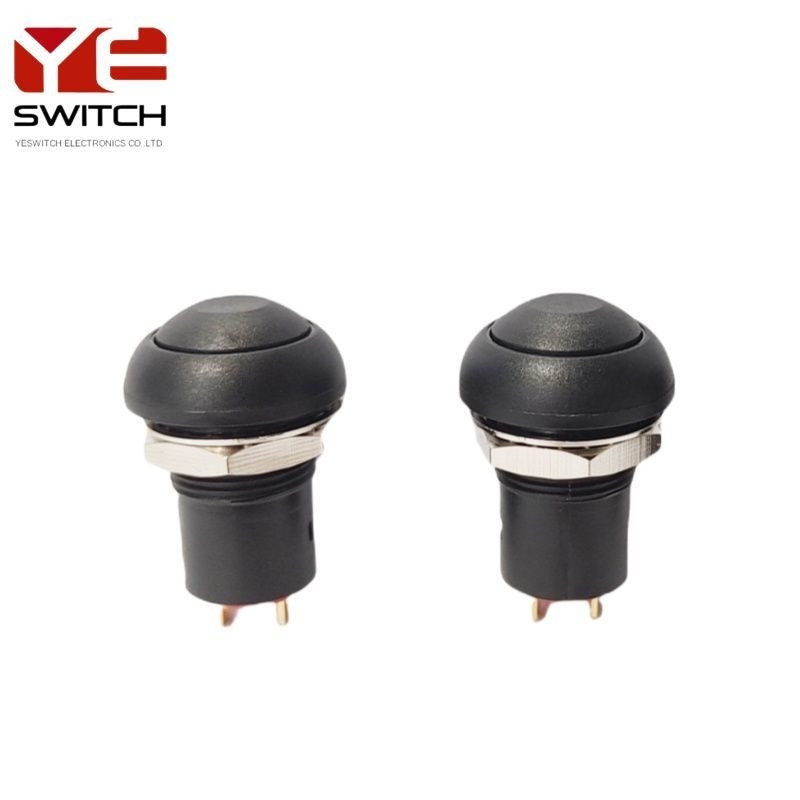

12mm IP67 Automotive Self-lock Push Button Switch
Description:
The 12mm push button switch is suitable for a variety of harsh environments,such as motorcycles,buses,agricultural mechanical
vehicles,ships,aviation aircraft,household appliances and other fields.The automotive switches not only have a self-lock function, but also has an IP67 level of sealed dust-proof and waterproof protection.The push button switches can effectively prevent water droplets from entering the inside of the switch, ensure the normal use of the switch, and truly meet the needs of users in harsh environments.
At the same time,the 12mm waterproof push button switch is also available in a variety of colors,including white,black,red,orange,yellow,green,blue.Different colors can add personality to your device.In addition,the OFF-ON automotive push button switch also offers two versions with and without lights,and the luminous color of the version with lights is also white,red,yellow,green and blue.
Most importantly,the IP67 push button switch types electrical life reach 200,000 cycles and is very durable.And led light switches use high-quality materials and exquisite workmanship,and has undergone rigorous testing and verification to ensure the reliability and stability of the product.
Specification:
| Max. Current/voltage rating with resistive load: |
400mA 24VDC |
| INITLAL GONTACT RESISTANCE: |
100mΩ max |
| INSULATION RESISTANCE: |
1GΩ min. at 500VDC |
| DELECTRIC STRENGTH: |
1.000 VAC rms |
| ELECTRICAL LIFE AT FULL LOAD: |
200.000 cycles |
| PANEL THICKNESS: |
1.5mm(.059) min- 5.5mm(.217)max |
| TOTAL TRAVEL: |
2.5mm(.098) |
| OPERATING FORCE: |
4.5N~6.5N |
| GONTACT BOUNCE: |
10 ms |
| MECHANICAL LIFE: |
1,000,000 cycles |
| TOROUE: |
0.5Nm max. applied to nut |
| SOLDERING: |
350 degree max. for 5 seconds |
| CAP COLOR: |
White/Black/Red/Orange/Yellow/Green/Blue |
| LED COLOR: |
White/Red/Yellow/Green/Blue/Red+Green |
Material:
| CASE: |
Glass filled Nylon 6/6(UL94v-0) |
| CAP: |
Polyamide 6/6 |
| BUSHING: |
Polyamide 6/6 |
| TERMINALICONTACTS: |
Gold over silver plated. |
