Highlight:
White waterproof momentary switch normally open
, 12mm waterproof momentary switch normally open
, 400mA latching push button switch
Model NO.: |
PF Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Close |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Solder Terminal |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Rating: |
400mA 32VAC;200 Ma 50VDC;125 Ma 125VAC |
Initial Contact Resistance: |
50 M Ohm Max. |
Insulation Resistance: |
1 G Ohm Min. At 500VDC. |
Dielectric Strength: |
1,500 VAC RMS. |
Electrical Life At Full Load: |
500,000 Cycles |
Total Travel: |
1.5 Mm(.059) |
Operating Force: |
3n~6n. |
Contact Bounce: |
10 Ms |
Mechanical Life: |
1.000.000 Cycles |
Torque: |
0.5 Nm Max.Applied To Nut. |
Soldering: |
. Applied To Nut. |
Operating Temperature: |
-30 To 85 Degrees |
Cdegree Of Proteciton: |
IP68 |
Transport Package: |
Carton |
Specification: |
12mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Round Cap |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

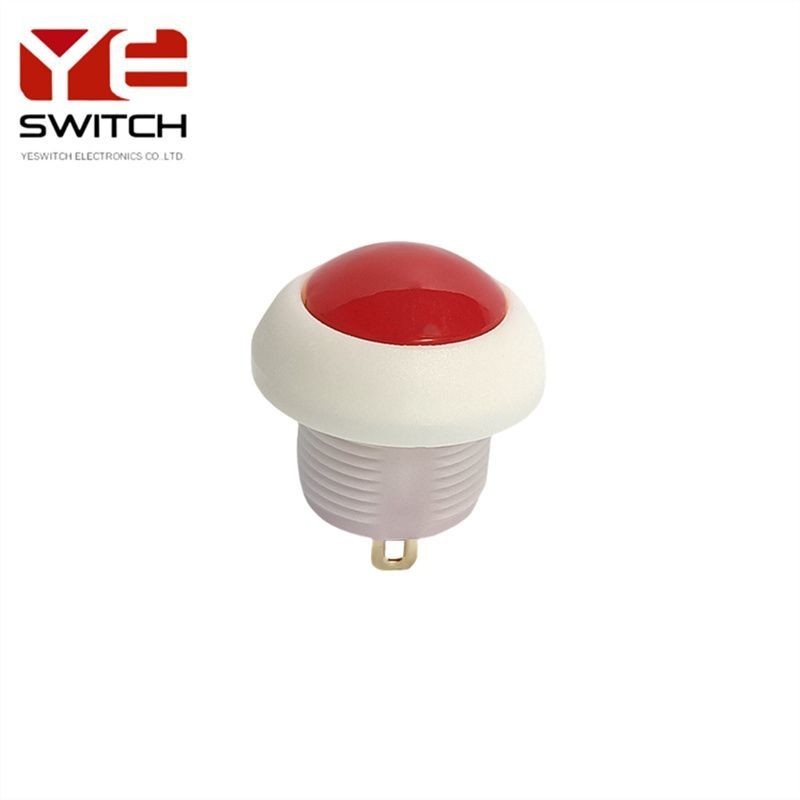

12mm Momentary White Waterproof Push Button Switch
Description:
The YESWITCH 12mm PF series push button switch has two colors to choose from.One is white and the other is black.Whether it is in terms of appearance or texture, the push button switches are very durable.The pushbutton switches waterproof level reaches IP68,which means that it can be used even underwater.
Moreover, the electrical life of the push button switch reaches 500,000 cycles and the mechanical life reaches 1 million cycles.The push button switch can work normally in an environment of -30 to 80 degrees.
The push button switch also has a very practical function of momentary ON-(OFF),which can be restored to its original state with just a light press.
The momentary push button switch also has many optional shapes of buttons,such as the round shape,high head and flat head,which can be selected according to your needs.
There are also many colors of buttons to choose from,such as red,blue,green,yellow,black,white, etc.,everything is available.
The push button switch is widely used in medical equipment,mobility scooters,smart bathroom machines and other fields. Interested friends must not miss it!
Specification:
| RATING: |
400mA 32VAC
200 mA 50VDC
125 mA 125VAC |
| INITIAL CONTACT RESISTANCE: |
50 m ohm max. |
| INSULATION RESISTANCE: |
1 G ohm min. at 500VDC. |
| DIELETRIC STRENGTH: |
1,500 VAC rms. |
| ELECTRICAL LIFE AT FULL LOAD: |
500,000 cycles. |
| PANELTHICKNESS: |
1.5 mm(.059) |
| OPERATING TEMPERATURE: |
-30~85 degree |
| TOTAL TRAVEL: |
1.5 mm(.059) |
| OPERATING FORCE: |
3N~6N. |
| CONTACT BOUNCE: |
10ms |
| MECHANICAL LIFE: |
1,000,000 cycles. |
| TORQUE: |
0.5 Nm max. applied to nut. |
| SOLDERING: |
350°C max. for 5 seconds. |
| CDEGREE OF PROTECITON: |
IP68 |
Material:
| CAP: |
Polyamide 6/6. |
| PLUNGER: |
Polyamide 6/6. |
| RUBBER: |
Silicone. |
| BUSHING: |
Polyamide 6/6. |
| CASE: |
Diallyl phthalate (DAP)(UL94v-0). |
| TERMINAL/CONTACTS: |
Gold over silver plated. |
