Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: ISO9001, CCC, cUL, VDE, CQC,RoHS,Reach

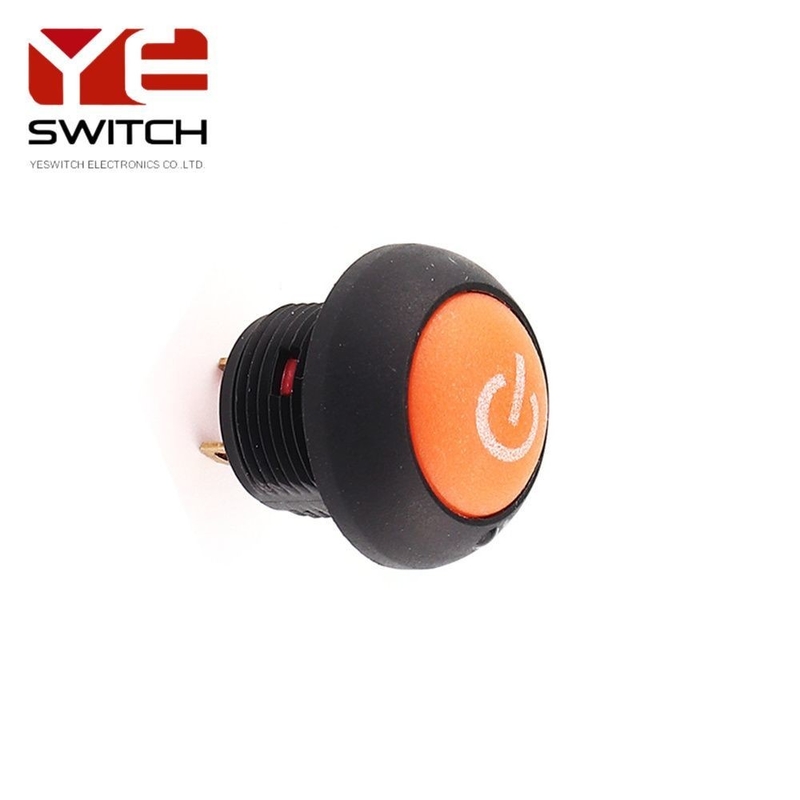

Model Number: PA Waterproof Series
Payment & Shipping Terms
Price: Negotiable
Payment Terms: T/T
Model NO.: |
PA Waterproof Series |
Wiring: |
Null Line And Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Composite |
Number Of Switch: |
Multi Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Double-pole On-off Switch |
Contact Type: |
Type C Contact |
Detection Method: |
Reflection Type |
Brand: |
Yeswitch |
Symbol Label: |
Power |
Protection Degree: |
IP67,IP68 |
Rating: |
400mA 32VAC/500mA 48VAC |
Panel Mounting Hole: |
12mm |
LED Color: |
Red/Green/Yellow/Blue/White |
Transport Package: |
50 PCS A Box/ 11000PCS A Carton |
Specification: |
UL, CE, ROHS, SGS, CQC |
Trademark: |
Yeswitch |
Origin: |
Dongguan, China |
HS Code: |
853650000 |
Supply Ability: |
50, 0000/Month |
Package Size: |
16.00cm * 12.00cm * 6.00cm |
Package Gross Weight: |
0.500kg |
Model NO.: |
PA Waterproof Series |
Wiring: |
Null Line And Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Composite |
Number Of Switch: |
Multi Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Double-pole On-off Switch |
Contact Type: |
Type C Contact |
Detection Method: |
Reflection Type |
Brand: |
Yeswitch |
Symbol Label: |
Power |
Protection Degree: |
IP67,IP68 |
Rating: |
400mA 32VAC/500mA 48VAC |
Panel Mounting Hole: |
12mm |
LED Color: |
Red/Green/Yellow/Blue/White |
Transport Package: |
50 PCS A Box/ 11000PCS A Carton |
Specification: |
UL, CE, ROHS, SGS, CQC |
Trademark: |
Yeswitch |
Origin: |
Dongguan, China |
HS Code: |
853650000 |
Supply Ability: |
50, 0000/Month |
Package Size: |
16.00cm * 12.00cm * 6.00cm |
Package Gross Weight: |
0.500kg |
| Specifications | |
| Rating | Depends on the modal |
| Insulation Resistance | 50m Ωmax. |
| Dielectric Strength | 1,000 VAC rms/1,500 VAC rms |
| Electrical Life | 500,000 cycles. |
| Mechanical Life | 1,000,000 cycles |
| Operating Temperature | -30degree±85degree |
| Total Travel | 1.5 mm(.059) |
| Operating Force | 2N~5N |
| Contact Bounce | 10 ms. |
| Travel | 0.5 Nm/1.5 Nm |
| Operating Pressure | About 4.5N±0.5N |
| Protction Degree | IP67 |
| Soldering | 350oC max.for 5 seconds. |
| Materials | |
| Bushing | Aluminum alloy/Plastic |
| CAP | PA66 |
| Spring | Steel |
| Sealing | Sillicone(Translucent) |
| O-ring | Sillicone(Translucent) |
| Terminal | Bass,, silver, gold |
| LED Color | White/Red/Yellow/Green/Blue/ |
