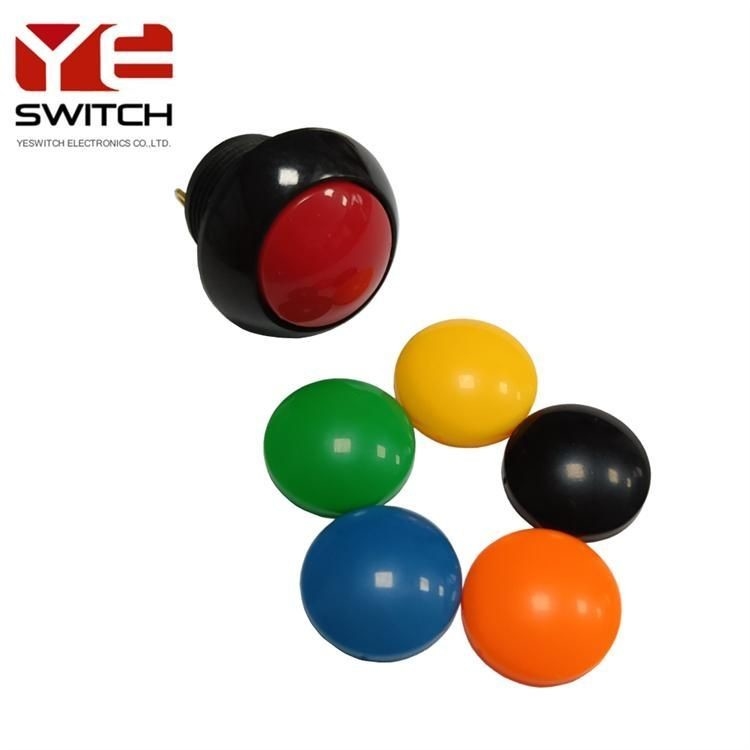

Anti Lightning Waterproof Push Button Switch Plastic Push Button Switch Self Locking

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: ISO9001, CCC, cUL, VDE, CQC, RoHS, Reach

Payment & Shipping Terms

Price: Negotiable

Payment Terms: T/T

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Anti Lightning Anti Lightning Waterproof Push Button Switch, Double pole Waterproof Push Button Switch, plastic push button switch Self Locking


Model NO.:	12mm	Wiring:	Null Line And Live Line
Principle:	Capacitive	Application:	Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type:	Composite	Number Of Switch:	Multi Control Switch
Structure:	Power Built-in Type	Usage:	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind:	Double-pole On-off Switch	Contact Type:	Type C Contact
Detection Method:	Reflection Type	Brand:	Yeswitch
Symbol Label:	Power	Protection Degree:	IP67
Waterproof:	IP68	Rating:	400mA 32VAC/500mA 48VAC
Panel Mounting Hole:	12mm	LED Color:	Red/Green/Yellow/Blue/White
Terminations:	Solder Lug/ PC Thru/Wire	Pole:	Single Pole
Bushing:	Snap In/ Threaded Bushing	Cap Style:	Flat/ Round/High
Cap Color:	Black/ Red/White/Blue/Orange	Security Certificate:	RoHS And Lead Free
Function:	Off-Mon, On-Mom	Transport Package:	50 PCS A Box/ 11000PCS A Carton
Specification:	UL, CE, ROHS, SGS, CQC	Trademark:	Yeswitch
Origin:	Dongguan, China	HS Code:	853650000
Supply Ability:	50, 0000/Month	Package Size:	16.00cm * 12.00cm * 6.00cm
Package Gross Weight:	0.500kg

Model NO.:	12mm
Wiring:	Null Line And Live Line
Principle:	Capacitive
Application:	Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type:	Composite
Number Of Switch:	Multi Control Switch
Structure:	Power Built-in Type
Usage:	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind:	Double-pole On-off Switch
Contact Type:	Type C Contact
Detection Method:	Reflection Type
Brand:	Yeswitch
Symbol Label:	Power
Protection Degree:	IP67
Waterproof:	IP68
Rating:	400mA 32VAC/500mA 48VAC
Panel Mounting Hole:	12mm
LED Color:	Red/Green/Yellow/Blue/White
Terminations:	Solder Lug/ PC Thru/Wire
Pole:	Single Pole
Bushing:	Snap In/ Threaded Bushing
Cap Style:	Flat/ Round/High
Cap Color:	Black/ Red/White/Blue/Orange
Security Certificate:	RoHS And Lead Free
Function:	Off-Mon, On-Mom
Transport Package:	50 PCS A Box/ 11000PCS A Carton
Specification:	UL, CE, ROHS, SGS, CQC
Trademark:	Yeswitch
Origin:	Dongguan, China
HS Code:	853650000
Supply Ability:	50, 0000/Month
Package Size:	16.00cm * 12.00cm * 6.00cm
Package Gross Weight:	0.500kg

Product Description

Ultra-Small Anti-Lightning Switch With Integral Seal Waterproof Plastic Button And Self-Locking

Rating	28VDC 5A 4A(DB) 25,000cycles
Insulation Resistance	115VAC 1A 1A(DB) 25,000cycles
Dielectric Strength	AC 1000V 1 minute
Electrical Life	500,000 cycles
Mechanical Life	1,000,000 cycles
Operating Temperature	-40°C~+85°C
Total Travel	1.6mm max
Operating Force	1.7lbs [770g]. Release Force :12oz [340g]
Contact Bounce	10 ms
Operating Pressure	About 4.5N±0.5N
Protction Degree	IP67,IP68S,and IP69K (Front Panel)
Soldering	350oC max.for 5 seconds
Materials
Bushing	PA66
CAP	ABS
Spring	Steel
Sealing	Sillicone(Translucent)
O-ring	Sillicone(Translucent)
Terminal	Bass, silver, gold
LED Color	White/Red/Yellow/Green/Blue/

Introducing our Ultra - Small Anti - Lightning Switch, a compact powerhouse safeguarding your devices against electrical surges. Harnessing cutting - edge varistor and gas discharge tube technology, its advanced anti - lightning system can instantaneously divert up to 10kV surges, ensuring seamless operation even during the most intense thunderstorms. The integral seal design, meticulously crafted with a double - layer silicone gasket and a high - grade waterproof plastic button, achieves an IP67 rating. This robust construction effectively blocks water submersion up to 1 meter for 30 minutes, as well as preventing dust ingress, making it impervious to the elements.

This switch’s self - locking function is a game - changer for long - running equipment. Once engaged, it maintains continuous operation without the need for constant manual activation, reducing user fatigue and enhancing operational efficiency. It offers a firm and tactile press , ensuring pinpoint control every time. Whether used in outdoor security cameras braving harsh weather, automotive ECU systems requiring reliable performance, or smart home devices where space is at a premium, its combination of high - performance protection, waterproofing, and self - locking convenience makes it an essential component for secure and efficient operation. With a lifespan exceeding operations, this switch is engineered to deliver enduring reliability in any demanding environment.
