Highlight:
12mm Waterproof Push Button Switch
, IP68 Waterproof Push Button Switch
, Dustproof Orange push button on off
Model NO.: |
PF Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Solder,PC Pin,Quick Connect Terminal |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Rating: |
400mA 32VAC -200 Ma 50VDC-125 Ma 125VAC |
Initial Contact Resistance: |
50 MΩ Max. |
Insulation Resistance: |
1 GΩ Min.at 500VDC |
Dielectric Strength: |
1,500 VAC RMS. |
Electrical Life At Full Load: |
500,000 Cycles |
Total Travel: |
1.5 Mm(.059) |
Operating Force: |
3n~6n. |
Contact Bounce: |
1 Ms Max. |
Mechanical Life: |
1.000.000 Cycles |
Torque: |
0.5 Nm Max. Applied To Nut. |
Soldering: |
350°c Max.for 5 Seconds. |
Operating Temperature: |
-30 To 85 Degrees |
Cdegree Of Proteciton: |
IP68 |
Transport Package: |
Carton |
Specification: |
12mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
High Cap |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

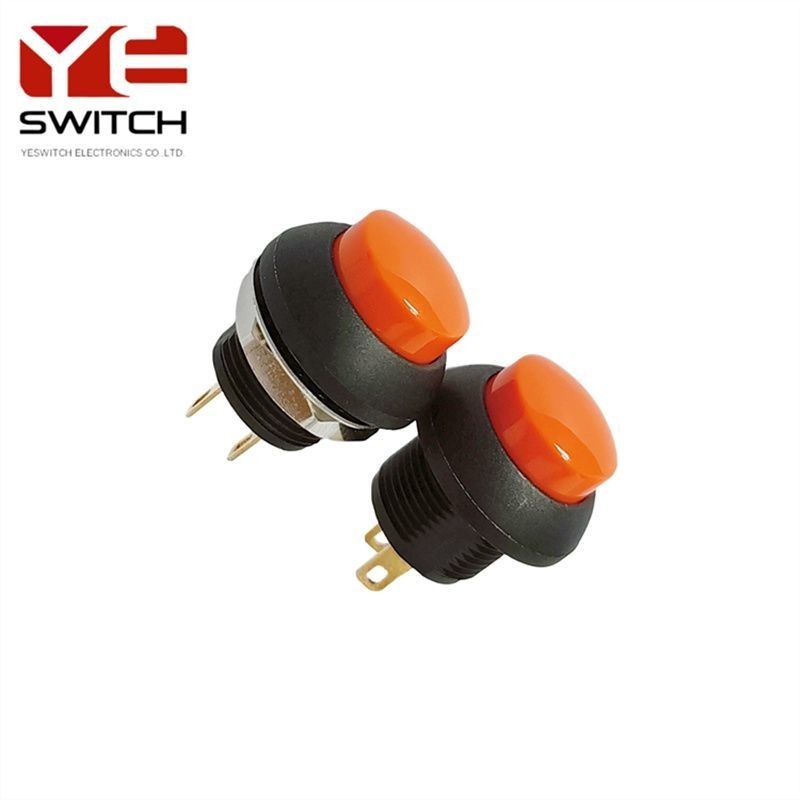

12mm IP68 Waterproof And Dustproof Orange High Push Button Switches
Description:
The 12mm waterproof push button switch stands out for its exceptional functionality and versatility. Its reset feature offers an intuitive and efficient way to activate power temporarily, ideal for applications like emergency lighting activation, quick - start machinery functions, or momentary power boosts. The advanced waterproof design, fortified with precision - engineered seals and durable materials, attains a high - grade protection rating, effectively shielding internal components from rain, splashes, and humidity. This makes it the go - to choice for outdoor installations, marine electronics, and any environment where moisture poses a risk.
Available in seven vibrant colors—white, black, red, orange, yellow, green, and blue—the switch not only caters to aesthetic preferences but also serves as a practical color - coding system. Technicians can easily distinguish between different functions or circuits at a glance, enhancing operational efficiency and reducing errors. Whether you require a momentary push for short - term activations or an OFF - (ON) switch for sustained power control, this product’s dual - mode design provides unparalleled flexibility.
Featuring a 12mm threaded bushing, the switch offers a secure and straightforward installation. Its compact yet robust build ensures reliable performance across diverse applications. From the electronic handles of modern equipment to the control systems of cross - country vehicles, operating rods of cranes, agricultural machinery, and computer peripherals, this waterproof push button switch delivers consistent and dependable operation.
