Highlight:
Waterproof Push Button Switch 1mm
, Waterproof Push Button Switch Normal Open
, 4mm automotive push button switch
Model NO.: |
PA Series |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Solder Terminal |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Max. Current/Voltage Rating: |
400mA 32VAC,100mA 50VDC,125mA 125VAC |
Initlal Gontact Resistance: |
50mΩ Max |
Insulation Resistance: |
1gΩ Min. At 500VDC |
Delectric Strength: |
1.000 VAC RMS |
Electrical Life At Full Load: |
500.000 Cycles |
Panel Thickness: |
1.5mm(.059) Min-4mm(.157)Max |
Total Travel: |
1.5mm(.059) |
Operating Force: |
2n~5n |
Gontact Bounce: |
10 Ms |
Mechanical Life: |
1,000,000 Cycles |
Toroue: |
0.5nm Max. Applied To Nut |
Soldering: |
350 Degree Max. For 5 Seconds |
Transport Package: |
Carton |
Specification: |
12mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Flat |

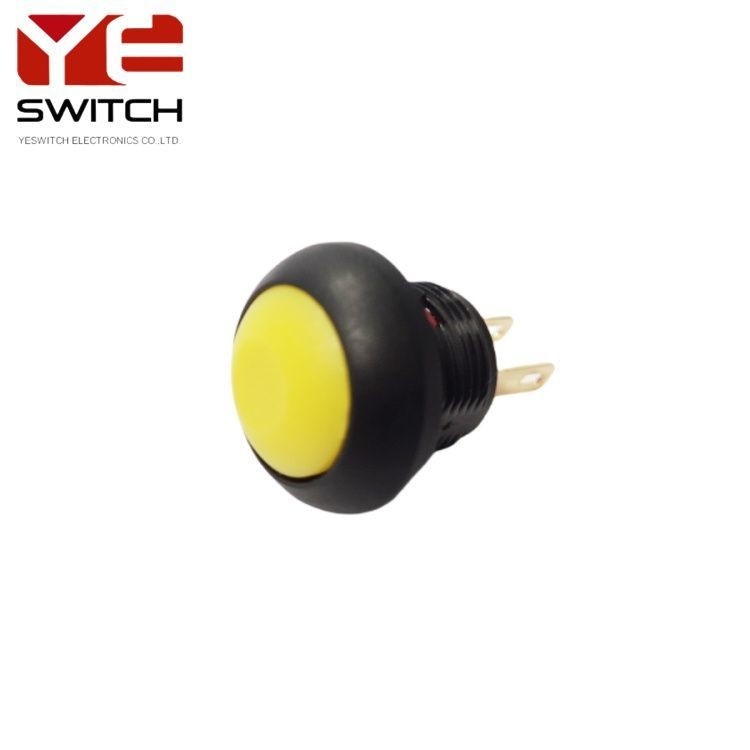

12mm IP67 Automotive Push Button Switch With Yellow Cap
Description:
The 12mm waterproof push button switch is mounted with a threaded panel and can be quickly and easily fixed to a variety of devices.The push button switches sealing grade reaches IP67 standard,excellent water and dust resistance,and automotive switches can operate stably in harsh environments.
Moreover,the 12mm automotive push button switches have a very long life,reach 1,000,000 cycles.The push button switch has been rigorously tested and verified,and can withstand prolonged use and frequent operation.
The momentary push button switch with yellow cap.Of course,you can also choose other colors, such as white, black, red, orange, green, blue.The caps come in a wide variety of colors to meet your individual needs.
In addition,the 12mm push button switch types offer options with and without LED.The LED colors including single color white,red,yellow,green,blue and double color red green and red blue for you to choose,make the switch more cool!
Whether in the field of home appliances,industrial equipment,automotive electronics,ship equipment or medical equipment can be applied.
Specification:
| Max. Current/voltage rating with resistive load: |
400mA 32VAC,100mA 50VDC,125mA 125VAC |
| INITLAL GONTACT RESISTANCE: |
50mΩ max |
| INSULATION RESISTANCE: |
1GΩ min. at 500VDC |
| DELECTRIC STRENGTH: |
1.000 VAC rms |
| ELECTRICAL LIFE AT FULL LOAD: |
500.000 cycles |
| PANEL THICKNESS: |
1.5mm(.059) min-4mm(.157)max |
| TOTAL TRAVEL: |
1.5mm(.059) |
| OPERATING FORCE: |
2N~5N |
| GONTACT BOUNCE: |
10 ms |
| MECHANICAL LIFE: |
1,000,000 cycles |
| TOROUE: |
0.5Nm max. applied to nut |
| SOLDERING: |
350 degree max. for 5 seconds |
Material:
| CASE: |
Diallyl phthalate(DAP)UL94v-0) |
| CAP: |
Polyamide 6/6 |
| BUSHING: |
Polyamide 6/6 |
| TERMINALICONTACTS: |
Brass, Gold over silver plated. |
| RoHS & Lead Free |
