Highlight:
24VDC waterproof momentary push button
, OEM waterproof push button on off switch
, interlock push button switch Red Cap
Model NO.: |
PA Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Solder Terminal |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Max. Current/Voltage Rating: |
400mA 24VDC |
Initlal Gontact Resistance: |
100mΩ Max |
Insulation Resistance: |
1gΩ Min. At 500VDC |
Delectric Strength: |
1.000 VAC RMS |
Electrical Life At Full Load: |
200,000 Cycles |
Panel Thickness: |
1.5mm(.059) Min- 5.5mm(.217)Max |
Total Travel: |
2.5mm(.098) |
Operating Force: |
4.5n~6.5n |
Gontact Bounce: |
10 Ms |
Toroue: |
0.5nm Max. Applied To Nut |
Soldering: |
350 Degree Max. For 5 Seconds |
Cap Color: |
White/Black/Red/Orange/Yellow/Green/Blue |
LED Color: |
White/Red/Yellow/Green/Blue/Red+Green |
Transport Package: |
Carton |
Specification: |
12mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Flat |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

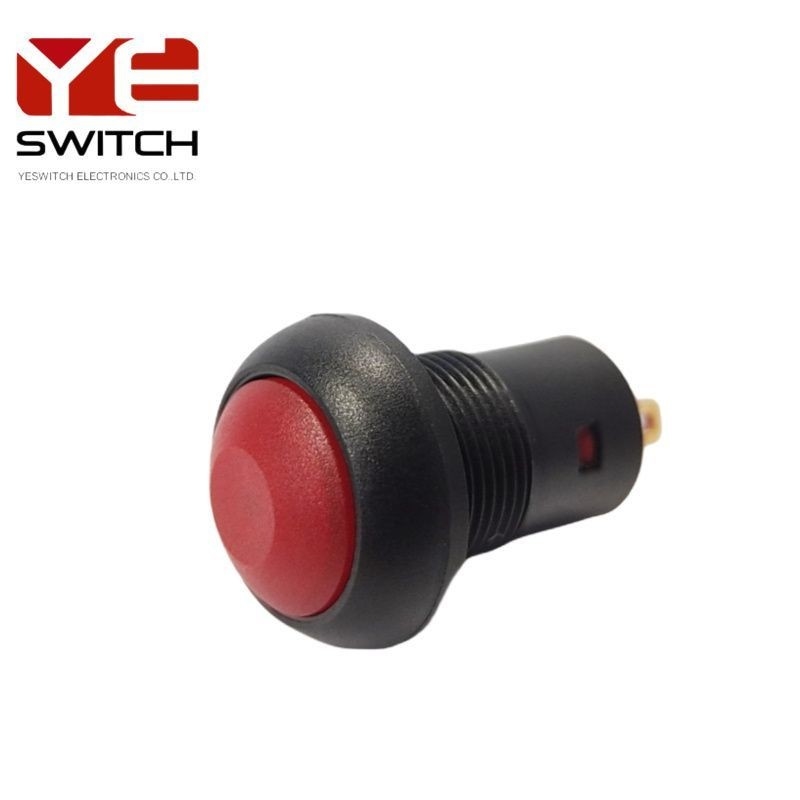

12mm IP67 Self-lock Pushbutton Red Cap Switch
Description:
The push button switch not only has a 12mm self-locking function, but also has an IP67 level of sealed dustproof and waterproof protection,which can effectively prevent water droplets from entering the inside of the switch,ensure the normal use of the switch,and truly meet the needs of users in harsh environments.
The waterproof push button switch is suitable for all kinds of motorcycles,buses,agricultural mechanical vehicles,ships,aviation aircraft,household appliances and other fields.No matter what the environment,the 12mm automotive switches provides stable,secure control of your device.
The push button switch types not only has a 12mm self-locking function, but also has a variety of button colors to choose from,including white,black,red,orange,yellow,green,blue.Different colors can add personality to your device.In addition,the automotive push button switches also offers a choice of lights,and the LED color is also white,red,yellow,green,and blue.
The 12mm push button switch not only looks fashionable, but also has a long service life and strong durability.Its surface is treated with imported technology and has good corrosion resistance and wear resistance.At the same time,the internal structure is made of high-quality materials to ensure that the switch will not loosen or fall off during use.
Specification:
| Max. Current/voltage rating with resistive load: |
400mA 24VDC |
| INITLAL GONTACT RESISTANCE: |
100mΩ max |
| INSULATION RESISTANCE: |
1GΩ min. at 500VDC |
| DELECTRIC STRENGTH: |
1.000 VAC rms |
| ELECTRICAL LIFE AT FULL LOAD: |
200.000 cycles |
| PANEL THICKNESS: |
1.5mm(.059) min- 5.5mm(.217)max |
| TOTAL TRAVEL: |
2.5mm(.098) |
| OPERATING FORCE: |
4.5N~6.5N |
| GONTACT BOUNCE: |
10 ms |
| MECHANICAL LIFE: |
1,000,000 cycles |
| TOROUE: |
0.5Nm max. applied to nut |
| SOLDERING: |
350 degree max. for 5 seconds |
| CAP COLOR: |
White/Black/Red/Orange/Yellow/Green/Blue |
| LED COLOR: |
White/Red/Yellow/Green/Blue/Red+Green |
Material:
| CASE: |
Glass filled Nylon 6/6(UL94v-0) |
| CAP: |
Polyamide 6/6 |
| BUSHING: |
Polyamide 6/6 |
| TERMINALICONTACTS: |
Gold over silver plated. |
