Single pole Waterproof Push Button Switch
, Normal Open Waterproof Push Button Switch
, Momentary dome push button ODM
Model NO.: |
PA Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Solder,PC Pin,Quick Connect Terminal |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Resistive: |
28VDC 5A 4A(dB) 25,000cycles;115VAC 1A 1A(dB)25,00 |
Inductive: |
28VDC 2A 2A(dB) 25,000cycles |
Contact Resistance: |
50mΩ Max. |
Insulation Resistance: |
1gΩ @ 500DVC |
Dielectric Strength: |
AC 1000V 1 Minute |
Mechanical Life: |
1,000,000cycles |
Operating Temperature: |
-40°c~+85°c |
Switch Action: |
Momentary |
Switch Circuitry: |
Spdt ,Load 1n.0./1n.C. 2 Circuit |
Actuator Ingress Protection: |
Lp67,IP68s,and IP69K( |
Base: |
PA66 |
Cap: |
ABS |
Terminal: |
Brass,Gold Plated |
Nut: |
Brass,Ni Plated |
Transport Package: |
Carton |
Specification: |
12mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Dome Cap |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

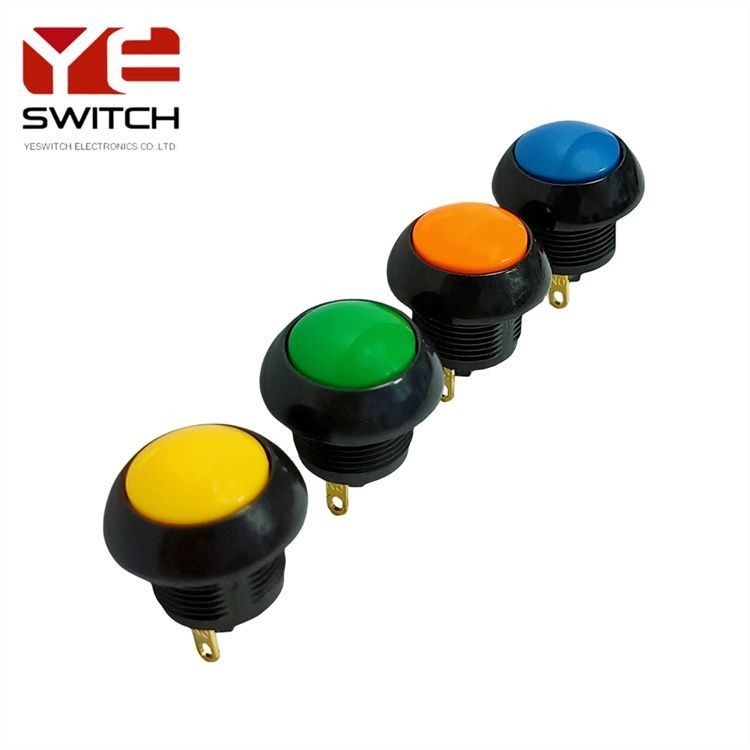

12mm Waterproof Momentary Dome Push Button Switch
Description:
YESWITCH 12mm PA series dome push button switches feature a contoured dome style push button.There are two button versions: low button profile and high button profile. The waterproof push button switch comes with a threaded case for hex nut mounting.The automotive switches also offer excellent mechanical and electrical performance while operating under severe conditions found in demanding applications.
The PA Series 12mm push button switch types are offered in watertight, moistureproof and dustproof features sealed construction. One million mechanical operations and at full rated load of 5 amps resistive or 1 amps inductive.
IP67 Watertight sealing is available in standard and low-force double break snap-action and non-snap shorting bar models. All are momentary action. Special contact variations are available. High contact pressure and unique contact design provide low contact resistance for low level switching capability as well as full rated service. Solder, PC Pin, and Quick Connect termination options are available.
The 12mm dome push button switch is a quality precision switch designed for use in panels, control grips, computers, instruments, heavy equipment and other demanding application.
Specification:
| Resistive: |
28VDC 5A 4A(DB) 25,000cycles |
| Resistive: |
115VAC 1A 1A(DB)25,000cycles |
| Inductive: |
28VDC 2A 2A(DB) 25,000cycles |
| Contact Resistance:50mΩ Max. |
1.000 VAC rms |
| Insulation Resistance: |
1GΩ @ 500DVC |
| Dielectric Strength: |
AC 1000V 1 minute |
| Mechanical Life: |
1,000,000cycles |
| Operating Temperature: |
-40°C~+85°C |
| Switch action: |
Momentary |
| Switch circuitry: |
SPDT ,load 1N.0./1N.C. 2 Circuit Life |
| Actuator Ingress Protection: |
lP67,IP68S,and IP69K(Front Panel) |
| Total travel: |
1.6mm max. |
| Operating Force : |
1.7lbs [770g]. |
| Release Force : |
12oz [340g] |
Material:
| Base: |
PA66 |
| Cap: |
ABS |
| Terminal: |
Brass,Gold plated |
| Nut: |
Brass,Ni plated |
