Highlight:
125VAC Waterproof Push Button Switch
, 400mA Waterproof Push Button Switch
, 1.5mm waterproof push pull switch
Model NO.: |
PA Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Solder,PC Pin,Quick Connect Terminal |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Rating: |
400mA 32VAC-100 Ma 50VDC-125 Ma 125VAC |
Initial Contact Resistance: |
50 Mq Max. |
Insulation Resistance: |
1 GΩmin. At 500VDC. |
Dieletric Strength: |
1,000 VAC RMS. |
Electrical Life At Full Load: |
500,000 Cycles. |
Operating Temperature: |
-30~85 Degree |
Total Travel: |
1.5 Mm(.059) |
Operating Force: |
2n~5n. |
Contact Bounce: |
10 Ms. |
Mechanical Life: |
1,000,000 Cycles. |
Torque: |
0.5 Nm Max. Applied To Nut. |
Soldering: |
350°c Max. For 5 Seconds. |
Case: |
Dially Phthalate (DAP)(UL94V-0). |
Cap: |
Polyamide 6/6. |
Bushing: |
Polyamide 6/6. |
Transport Package: |
Carton |
Specification: |
12mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Flat Cap |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

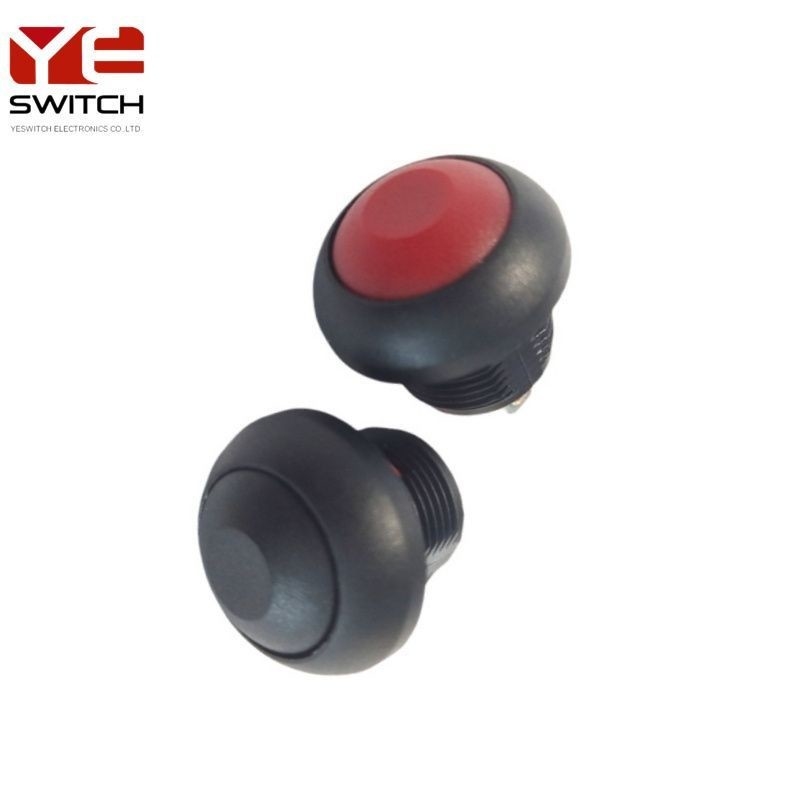

12mm IP67 Rated Miniature Waterproof Push Button Switches
Description:
The 12mm waterproof push button switch momentary function allows for quick and easy activation, perfect for situations where you only need temporary power.The waterproof feature ensures durability and protection against the elements,making it ideal for outdoor use or in environments where moisture is a concern.The automotive push button switch in 7 different colors(white,balck,red,orange,yellow,green,blue),giving you plenty of options to suit your aesthetic preferences or organizational needs.The vivid colors also make it easier to differentiate between various functions or circuits.Whether you need a momentary push button switch,an OFF-(ON) switch,or both,the product has the versatility to meet your requirements.
The threaded bushing 12 mm momentary sealed pushbutton switches OFF-(ON) Switch 7 Colors.The versatile waterproof push button switch offers a reliable and convenient solution for your electrical needs.Whether you're looking for a waterproof momentary push button switch or an OFF-(ON) switch,the product has got you covered.With a diameter of 12mm, the push button switches are compact yet powerful,making it suitable for a variety of application,such as electronic handle, cross-country transportation, operating rod, crane, agricultural equipment, computer equipment and so on.
Its 12mm size,waterproof design,and multiple color options make it an excellent choice for DIY projects,electronics enthusiasts,or professionals in need of reliable electrical components.Upgrade your electrical system with the threaded bushing 12 mm momentary sealed pushbutton switches OFF-(ON) Switch 7 Colors today and experience enhanced performance and convenience.Transform your devices with this reliable and durable switch that is designed to withstand rigorous use while delivering consistent results.
Specification:
| Max. current/voltage rating with resistive load: |
400mA 32VAC-100 mA 50VDC-125 mA 125VAC |
| INITIAL CONTACT RESISTANCE: |
50 mQ max. |
| INSULATION RESISTANCE: |
1 GΩmin. at 500VDC. |
| DIELETRIC STRENGTH: |
1,000 VAC rms. |
| ELECTRICAL LIFE AT FULL LOAD: |
500,000 cycles. |
| PANELTHICKNESS: |
1.5 mm(.059)min.-4 mm(.157)max. |
| OPERATING TEMPERATURE: |
-30~85 degree |
| TOTAL TRAVEL: |
1.5 mm(.059) |
| OPERATING FORCE: |
2N~5N. |
| CONTACT BOUNCE: |
10 ms. |
| MECHANICAL LIFE: |
1,000,000 cycles. |
| TORQUE: |
0.5 Nm max. applied to nut. |
| SOLDERING: |
350°C max. for 5 seconds. |
Material:
| CASE: |
Dially phthalate (DAP)(UL94v-0). |
| CAP: |
Polyamide 6/6. |
| BUSHING: |
Polyamide 6/6. |
| TERMINAL/CONTACTS: |
Gold over silver plated. |
