Highlight:
500VDC waterproof button switch
, waterproof button switch Plastic DOT
, Dome 22mm push button
Model NO.: |
PA Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Wire |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Rating: |
400mA 32VAC-100 Ma 50VDC -125 Ma 125VAC |
Initial Contact Resistance: |
100m Ohm |
Insulation Resistance: |
1 Grmin. At 500VDC |
Dieletric Strength: |
1,000 VAC RMS. |
Electrical Life At Full Load: |
500,000 Cycles. |
Operating Temperature: |
-30~85 Degree |
Total Travel: |
1.5 Mm(059). |
Operating Force: |
2n~5n. |
Contact Bounce: |
10 Ms. |
Mechanical Life: |
1.000,000 Cycles |
Torque: |
0.5 Nm Max. Applied To Nut. |
Degree Of Protection: |
IP67 |
Case: |
Dially Phthalate (DAP)(UL94V-0). |
Cap: |
Polyamide 6/6. |
Bushing: |
Polyamide 6/6. |
Transport Package: |
Carton |
Specification: |
12mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Flat Cap |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

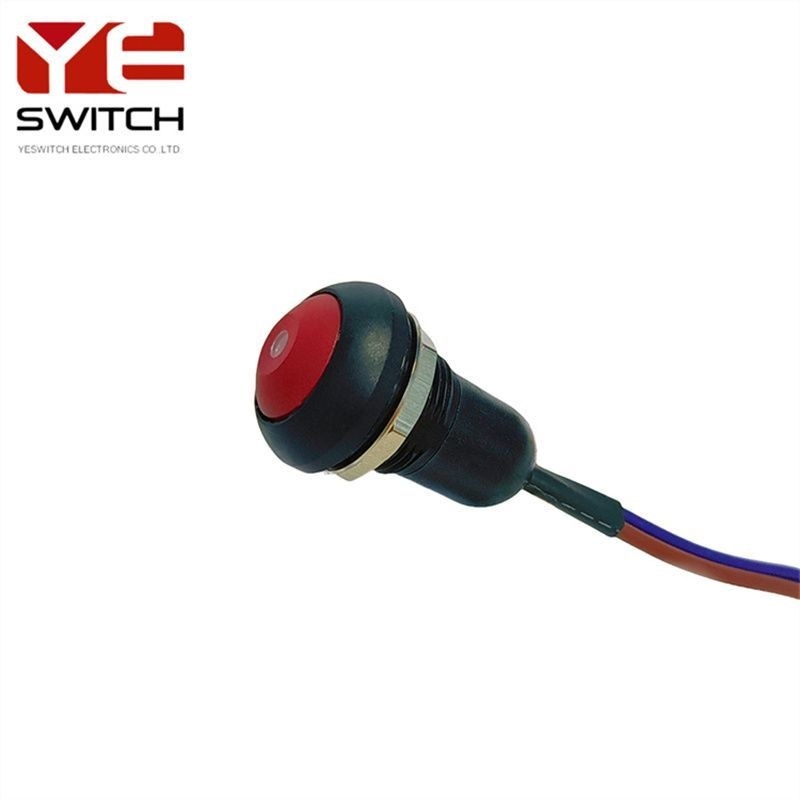

12mm IP67 Waterproof Plastic Dot Dome Push Button Switch
Description:
The IP67 waterproof plastic dot dome push button switch is engineered for momentary functionality.Simply push and hold to turn it ON, and release to turn it OFF.This feature provides precise control in various applications.With its wire design,this push button switches are exceptionally easy to install,eliminating the need for complex wiring.This saves time and reduces unnecessary costs associated with additional components.
The waterproof push button switch designed with a 12mm mounting cut hole and a head diameter of 17.5mm,this mini round automotive push button switches fit seamlessly into a range of equipment and control panels,ensuring a neat and professional appearance.The switch boasts a commendable rating of 400mA at 32VAC,guaranteeing reliable and efficient operation. Additionally,the push button switches feature a contact resistance of 100m ohm,further enhancing its performance and longevity.
The IP67 waterproof plastic dot dome push button switches are ideal for demanding applications in harsh environments where water,moisture or dust are problematic.Such as communications,data entry,hand-held control modules,outdoor controls,mass transport controls,instrumentation and industrial.
Specification:
| Max. current/voltage rating with resistive load: |
400mA 32VAC-100 mA 50VDC -125 mA 125VAC |
| INITIAL CONTACT RESISTANCE: |
100 m ohm max. |
| INSULATION RESISTANCE: |
1 GRmin. at 500vDc. |
| DIELETRIC STRENGTH: |
1.000 VAC rms. |
| ELECTRICAL LIFE AT FULL LOAD: |
500,000 cycles. |
| PANELTHICKNESS: |
1.5 mm (.059) min.-4 mm (.157) max. |
| OPERATING TEMPERATURE: |
-30~85 degree |
| TOTAL TRAVEL: |
1.5 mm(059). |
| OPERATING FORCE: |
2N~5N. |
| CONTACT BOUNCE: |
10 ms. |
| MECHANICAL LIFE: |
1,000,000 cycles. |
| TORQUE: |
0.5 Nm max. applied to nut. |
| SOLDERING: |
350°C max. for 5 seconds. |
| DEGREE OF PROTECTION: |
IP67 |
Material:
| CASE: |
Dially phthalate (DAP)(UL94v-0). |
| CAP: |
Polyamide 6/6. |
| BUSHING: |
Polyamide 6/6. |
| TERMINAL/CONTACTS: |
Brass,Gold over silver plated. |
