Home > products > Waterproof Push Button Switch > IP68 Waterproof Momentary Switch Normally Open Electronic Handle Marine Push Button Switches

IP68 Waterproof Momentary Switch Normally Open Electronic Handle Marine Push Button Switches

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: ISO9001, CCC, cUL, VDE, CQC, RoHS, Reach

Model Number: PA Series

Payment & Shipping Terms

Price: Negotiable

Payment Terms: T/T

Get Best Price
Chat Now
Product Details
Highlight:

IP68 waterproof momentary switch normally open

,

waterproof momentary switch normally open

,

Electronic marine push button switches RoHS

Model NO.:
Push Button Switch
Wiring:
Null Line And Live Line
Principle:
Capacitive
Application:
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type:
Composite
Number Of Switch:
Multi Control Switch
Structure:
Power Built-in Type
Usage:
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind:
Double-pole On-off Switch
Contact Type:
Type C Contact
Detection Method:
Reflection Type
Brand:
Yeswitch
Symbol Label:
Power
Protection Degree:
IP67
Waterproof:
IP68
Rating:
400mA 32VAC/500mA 48VAC
Panel Mounting Hole:
12mm
LED Color:
Red/Green/Yellow/Blue/White
Terminations:
Solder Lug/ PC Thru/Wire
Pole:
Single Pole
Bushing:
Snap In/ Threaded Bushing
Cap Style:
Flat/ Round/High
Cap Color:
Black/ Red/White/Blue/Orange
Security Certificate:
RoHS And Lead Free
Function:
Off-Mon, On-Mom
Transport Package:
50 PCS A Box/ 11000PCS A Carton
Specification:
UL, CE, ROHS, SGS, CQC
Trademark:
Yeswitch
Origin:
Dongguan, China
HS Code:
853650000
Supply Ability:
50, 0000/Month
Package Size:
16.00cm * 12.00cm * 6.00cm
Package Gross Weight:
0.500kg
Model NO.:
Push Button Switch
Wiring:
Null Line And Live Line
Principle:
Capacitive
Application:
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type:
Composite
Number Of Switch:
Multi Control Switch
Structure:
Power Built-in Type
Usage:
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind:
Double-pole On-off Switch
Contact Type:
Type C Contact
Detection Method:
Reflection Type
Brand:
Yeswitch
Symbol Label:
Power
Protection Degree:
IP67
Waterproof:
IP68
Rating:
400mA 32VAC/500mA 48VAC
Panel Mounting Hole:
12mm
LED Color:
Red/Green/Yellow/Blue/White
Terminations:
Solder Lug/ PC Thru/Wire
Pole:
Single Pole
Bushing:
Snap In/ Threaded Bushing
Cap Style:
Flat/ Round/High
Cap Color:
Black/ Red/White/Blue/Orange
Security Certificate:
RoHS And Lead Free
Function:
Off-Mon, On-Mom
Transport Package:
50 PCS A Box/ 11000PCS A Carton
Specification:
UL, CE, ROHS, SGS, CQC
Trademark:
Yeswitch
Origin:
Dongguan, China
HS Code:
853650000
Supply Ability:
50, 0000/Month
Package Size:
16.00cm * 12.00cm * 6.00cm
Package Gross Weight:
0.500kg
Product Description

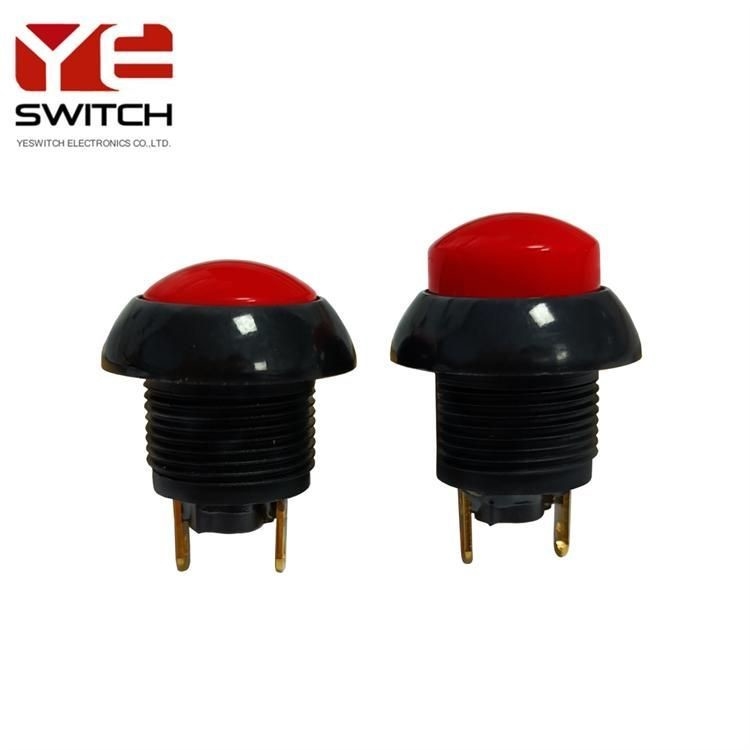

 IP68 Electronic Handle Push Button Switch

Rating
28VDC 5A 4A(DB) 25,000cycles
Insulation Resistance
115VAC 1A 1A(DB) 25,000cycles
Dielectric Strength
AC 1000V 1 minute
Electrical Life 500,000 cycles.
Mechanical Life 1,000,000 cycles
Operating Temperature
-40°C~+85°C
Total Travel
1.6mm max.
Operating Force  1.7lbs [770g]. Release Force :12oz [340g]
Contact Bounce 10 ms.
Operating Pressure  About 4.5N±0.5N
Protction Degree
IP67,IP68S,and IP69K (Front Panel).
Soldering  350oC max.for 5 seconds.
Materials
Bushing  PA66
CAP ABS
Spring Steel
Sealing Sillicone(Translucent)
O-ring Sillicone(Translucent)
Terminal Bass, silver, gold
LED Color White/Red/Yellow/Green/Blue/

Unleash unparalleled durability and functionality with our IP68 Electronic Handle Push Button Switch. Boasting the highest level of ingress protection, this switch is dust - tight and can withstand continuous immersion in water at depths specified by the IP68 rating, making it the ideal choice for the most demanding environments.​

Engineered with precision, it ensures seamless and responsive operation. The ergonomic design of the handle provides a comfortable grip, enabling effortless control with just a press. Whether used in industrial machinery, marine equipment, or rugged outdoor devices, this switch delivers reliable performance, resisting water, dust, and harsh conditions that could compromise functionality.​

Installation is a cinch, thanks to its user - friendly design and comprehensive mounting accessories. The high - quality electronic components guarantee long - lasting use, enduring frequent presses and vibrations without failure. Elevate your equipment's performance and reliability with our IP68 Electronic Handle Push Button Switch—your go - to solution for secure and efficient operation in any situation.



IP68 Waterproof Momentary Switch Normally Open Electronic Handle Marine Push Button Switches 0IP68 Waterproof Momentary Switch Normally Open Electronic Handle Marine Push Button Switches 1IP68 Waterproof Momentary Switch Normally Open Electronic Handle Marine Push Button Switches 2
IP68 Waterproof Momentary Switch Normally Open Electronic Handle Marine Push Button Switches 3
