Highlight:
25000cycles Waterproof Push Button Switch
, 5A Waterproof Push Button Switch
, 28VDC dome push button switch
Model NO.: |
PA Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Solder,PC Pin,Quick Connect Terminal |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Resistive: |
28VDC 5A 4A(dB) 25,000cycles;115VAC 1A 1A(dB)25,00 |
Inductive: |
28VDC 2A 2A(dB) 25,000cycles |
Contact Resistance: |
50mΩ Max. |
Insulation Resistance: |
1gΩ @ 500DVC |
Dielectric Strength: |
AC 1000V 1 Minute |
Mechanical Life: |
1,000,000cycles |
Operating Temperature: |
-40°c~+85°c |
Switch Action: |
Momentary |
Switch Circuitry: |
Spdt ,Load 1n.0./1n.C. 2 Circuit |
Actuator Ingress Protection: |
Lp67,IP68s,and IP69K( |
Base: |
PA66 |
Cap: |
ABS |
Terminal: |
Brass,Gold Plated |
Nut: |
Brass,Ni Plated |
Transport Package: |
Carton |
Specification: |
12mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Dome Cap |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

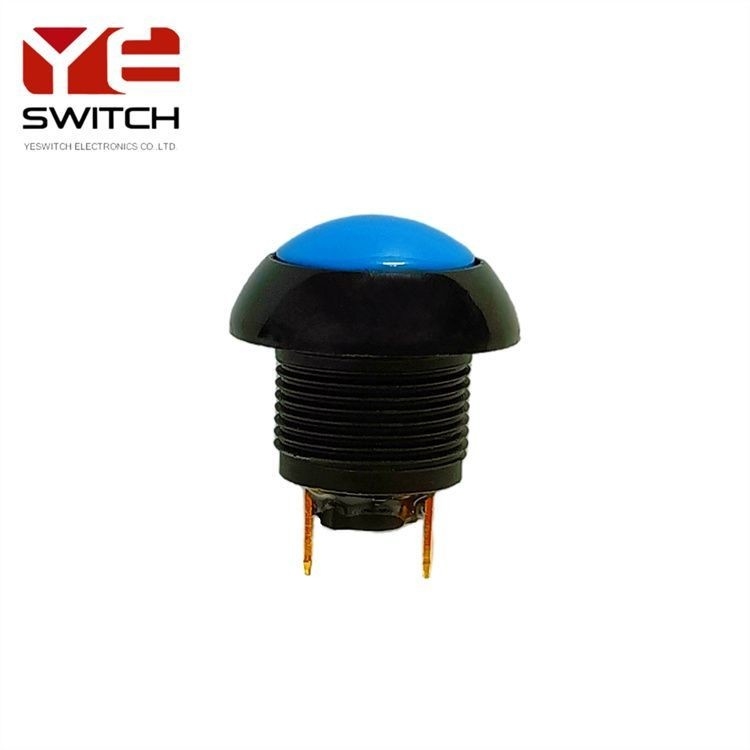

12mm IP67 Dome Momentary Push Button Switch
Description:
YESWITCH PA Series 12mm push button switch types are a small and rugged switch with moisture, dust and water resistance and a lifetime of up to one million cycles.The waterproof push button switch operating temperature range is wide, up to -40~85ºC, suitable for various extreme environments. The automotive push button switches is IP67 sealed design, instantaneous operation, with good waterproof performance, suitable for a variety of outdoor applications.
The 12mm push button switch including solder, PC Pin, and quick Connect can be selected.The 12mm PA series dome push button switches feature a contoured dome style push button.There are two button versions: low button profile and high button profile. The waterproof push button switch comes with a threaded case for hex nut mounting.The automotive switches also offer excellent mechanical and electrical performance while operating under severe conditions found in demanding applications.
The 12mm dome push button momentary switch are suitable for electronic handles,off-road transportation,operating rods,cranes,agricultural equipment, computer equipment, etc.
Specification:
| Resistive: |
28VDC 5A 4A(DB) 25,000cycles |
| Resistive: |
115VAC 1A 1A(DB)25,000cycles |
| Inductive: |
28VDC 2A 2A(DB) 25,000cycles |
| Contact Resistance:50mΩ Max. |
1.000 VAC rms |
| Insulation Resistance: |
1GΩ @ 500DVC |
| Dielectric Strength: |
AC 1000V 1 minute |
| Mechanical Life: |
1,000,000cycles |
| Operating Temperature: |
-40°C~+85°C |
| Switch action: |
Momentary |
| Switch circuitry: |
SPDT ,load 1N.0./1N.C. 2 Circuit Life |
| Actuator Ingress Protection: |
lP67,IP68S,and IP69K(Front Panel) |
| Total travel: |
1.6mm max. |
| Operating Force : |
1.7lbs [770g]. |
| Release Force : |
12oz [340g] |
Material:
| Base: |
PA66 |
| Cap: |
ABS |
| Terminal: |
Brass,Gold plated |
| Nut: |
Brass,Ni plated |
