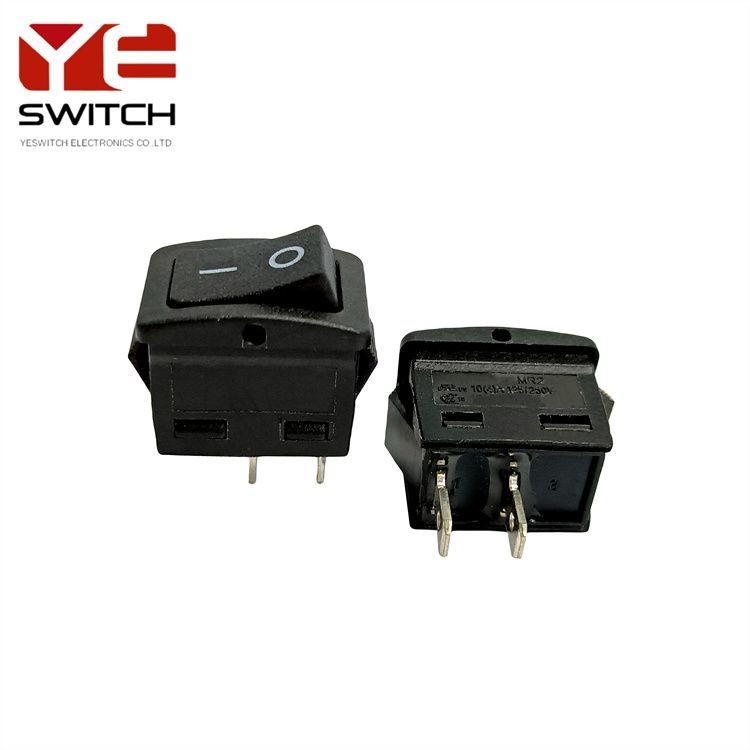

IP68 16A Momentary Rocker Switch 2 Position 3 Position Toggle Switch
IP68 16A Momentary Rocker Switch 2 Position 3 Position Toggle Switch
IP68 16A Momentary Rocker Switch 2 Position 3 Position Toggle Switch
IP68 16A Momentary Rocker Switch 2 Position 3 Position Toggle Switch
IP68 16A Momentary Rocker Switch 2 Position 3 Position Toggle Switch
IP68 16A Momentary Rocker Switch 2 Position 3 Position Toggle Switch
IP68 16A Momentary Rocker Switch 2 Position 3 Position Toggle Switch

IP68 16A Momentary Rocker Switch 2 Position 3 Position Toggle Switch

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: RoHS, cUL, ENEC

Model Number: MR2

Payment & Shipping Terms

Price: Negotiable

Payment Terms: T/T

Get Best Price
Chat Now

Product Details

Product Description
Product Details
Highlight:

16a momentary rocker switch

,

momentary rocker switch 2 position

,

2 position 3 position toggle switch

Model NO.:
MR2
Lamp:
Without Lamp
Color:
Black
Condition:
New
Protection Degree:
IP68
Function:
On-off,on-on,on-off-on,(on)-off
Terminal Type:
Quick Connect,Solder,PC
Dielectric Strength:
1,500VAC For 1 Minute
Electrical Life:
10,000 Cycles Or 50,000 Cycles
Base:
Nylon 66, UL Rated 94V-2 Min
Actuator:
Nylon 66, UL Rated 94V-2 Min
Spring:
Piano Wire
Contact:
Silver Alloy
Initial Contact Resistance:
20m Ohm (Max.)
Insulation Resistance:
100m Ohm (Min,) At 500VDC
Transport Package:
Carton
Specification:
13*19mm
Trademark:
YESWITCH
Origin:
China
HS Code:
8536500000
Supply Ability:
50, 0000/Month
Customization:
Available
Usage:
Electrical Appliance, Machinery, Digital Products, Communication, Vehicle, Toys, Water Dispenser, Coffee Pot, Rice Cooker, Kettle A
Standard:
Standard
Model NO.:
MR2
Lamp:
Without Lamp
Color:
Black
Condition:
New
Protection Degree:
IP68
Function:
On-off,on-on,on-off-on,(on)-off
Terminal Type:
Quick Connect,Solder,PC
Dielectric Strength:
1,500VAC For 1 Minute
Electrical Life:
10,000 Cycles Or 50,000 Cycles
Base:
Nylon 66, UL Rated 94V-2 Min
Actuator:
Nylon 66, UL Rated 94V-2 Min
Spring:
Piano Wire
Contact:
Silver Alloy
Initial Contact Resistance:
20m Ohm (Max.)
Insulation Resistance:
100m Ohm (Min,) At 500VDC
Transport Package:
Carton
Specification:
13*19mm
Trademark:
YESWITCH
Origin:
China
HS Code:
8536500000
Supply Ability:
50, 0000/Month
Customization:
Available
Usage:
Electrical Appliance, Machinery, Digital Products, Communication, Vehicle, Toys, Water Dispenser, Coffee Pot, Rice Cooker, Kettle A
Standard:
Standard
Product Description
 MR2 Series IP68 16A High Current 2-3 Position Rocker Switch

Dielectric strength 1,500VAC for 1 minute
Electrical life 10,000 cycles or 50,000 cycles
Base Nylon 66, UL rated 94V-2 min
Actuator Nylon 66, UL rated 94V-2 min
Spring Piano wire
Contact Silver alloy
Terminals Silver plated Copper, soldering, quick connecting and PCB terminals offered



Elevate your device's functionality and aesthetics with the YESWITCH MR2 Series Rocker Switch. Boasting a sleek and modern design, this switch not only performs flawlessly but also adds a touch of sophistication to any appliance or equipment. Its versatile applications span across various industries, making it the go - to choice for water dispensers, coffee pots, rice cookers, automatic kettles, medical devices, and office equipment.
​
Engineered for excellence, the 13x19 standard mini - rocker switches can handle up to 20A and high inrush currents of TV6, ensuring stable and reliable power control. Available in SPST or SPDT configurations, they adapt to diverse electrical setups. The MR2 Series IP68 waterproof automotive variants, equipped with soldering, quick - connecting, or PCB terminals, offer superior protection against water and dust, with the ability to withstand high inrush currents up to TV6.
​
With a wide range of function modes, including ON - OFF, ON - ON, ON - OFF - ON, and (ON) - OFF, these single - pole rocker switches provide customized control options. Backed by prestigious UL, ENEC, and TAF certificates, the MR2 Series guarantees compliance with international safety and quality standards. Whether for household appliances or professional equipment, trust the YESWITCH MR2 Series Rocker Switch to deliver outstanding performance, durability, and peace of mind.

Rating
UL61058-1 approved: (cURus , ENEC15)
    10(4)A 125/250V~T55, T125/55, 1E4
    16(8)A 125/250V~T55, T125/55, 1E4
    16A 6~30VDC, T55, T125/55, 1E4
    6[96]A 250V~T55, 1E4
    10(4)A 250V~T125/55, 5E4
UL1054 approved: (cURus)
    12A 125VAC, 10A 250VAC
    6A 125VAC, 3A 250VAC
TV-6, optional
    20A 125VAC, 12A 250VAC, optional
    10A 12/14/18/24 VDC
    10(4)A 250V~T125 (CQC)
Initial contact resistance : 20m ohm (max.)
Insulation resistance : 100M ohm (min,) at 500VDC
