Agricultural Equipmen Rocker Switch IP67 Illuminated Button Switch Waterproof

Name: Agricultural Equipmen Rocker Switch IP67 Illuminated Button Switch Waterproof
Brand: Dongguan Yeswitch Electronics Co.,Ltd
SKU: X7 Series
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: RoHS, cUL, ENEC

Model Number: X7 Series

Payment & Shipping Terms

Price: Negotiable

Payment Terms: T/T

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                rocker switch ip67, ip67 illuminated button switch, illuminated button switch waterproof


Model NO.:	X7 Series	Lamp:	With Lamp
Color:	Black	Condition:	New
Protection Degree:	IP68	Function:	On-off, On-on,on-off-on, (on)-off-on
Terminal Type:	Quick Connect,Solder	Dielectric Strength:	1,500VAC For 1 Min.
Insulation Resistance:	100m Ohm Min. At 500VDC	Initial Contact Resistance:	20m Ohm Max
Electrical Life:	10,000 Cycles	Transport Package:	Carton
Specification:	30.222mm/30.213.8mm	Trademark:	YESWITCH
Origin:	China	HS Code:	8536500000
Supply Ability:	50, 0000/Month	Customization:	Available
Usage:	Electrical Appliance, Machinery, Digital Products, Communication, Vehicle, Toys, Boats,Construction Equipment,Agricultural Equipmen	Standard:	Standard

Model NO.:	X7 Series
Lamp:	With Lamp
Color:	Black
Condition:	New
Protection Degree:	IP68
Function:	On-off, On-on,on-off-on, (on)-off-on
Terminal Type:	Quick Connect,Solder
Dielectric Strength:	1,500VAC For 1 Min.
Insulation Resistance:	100m Ohm Min. At 500VDC
Initial Contact Resistance:	20m Ohm Max
Electrical Life:	10,000 Cycles
Transport Package:	Carton
Specification:	30.222mm/30.213.8mm
Trademark:	YESWITCH
Origin:	China
HS Code:	8536500000
Supply Ability:	50, 0000/Month
Customization:	Available
Usage:	Electrical Appliance, Machinery, Digital Products, Communication, Vehicle, Toys, Boats,Construction Equipment,Agricultural Equipmen
Standard:	Standard

Product Description

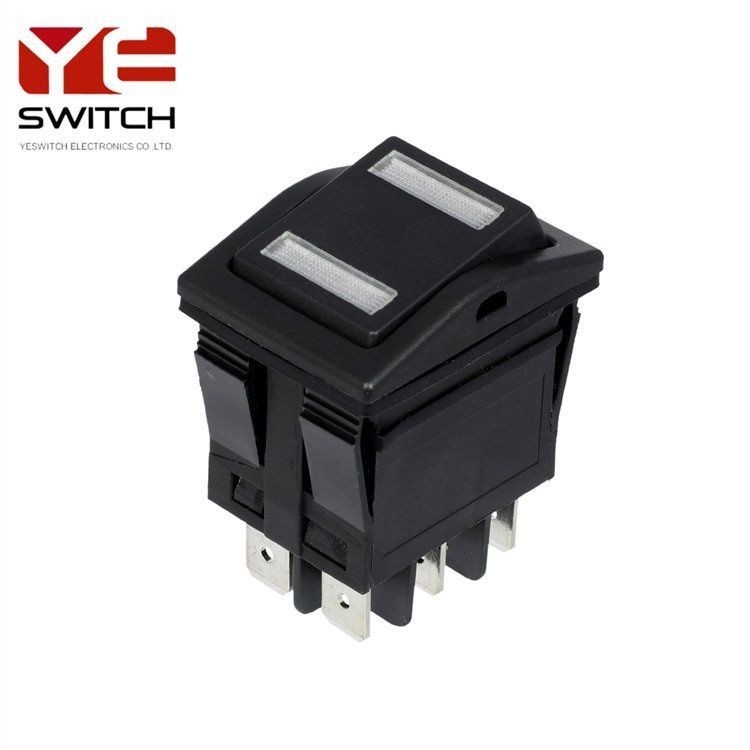

X7 Series IP67 Waterproof Illumination Rocker Switch

A safe and reliable high current rocker switch - X7 series. It has a high current of 25A, which can meet the needs of various electrical appliances.
First of all, the X7 high-current rocker switch has the dustproof and waterproof function of IP67 level, which can effectively prevent water droplets, dust and other debris from entering the inside of the switch to ensure the normal use and safety performance of the switch. Secondly, it also has the momentary and self-lock function, which means that the switch can be automatically reset to the initial position, avoiding the cumbersome and unsafe factors of manual operation. In addition, the X7 high-current rocker switch can also select single pole or double pole functions according to needs, such as ON-OFF, ON-ON,ON-OFF-ON, (ON)-OFF-ON, etc., to facilitate users to carry out different control needs.
Most importantly, the X7 high-current rocker switch also has an led indicator, which allows users to clearly know the working status of the appliance, avoiding safety hazards caused by uncertainty. These advantages make the X7 rocker switch widely used in boats,construction equipment,agricultural equipment,recreational vehicle,landscaping equipment and industrial equipment.It's a very practical switch products.

Feature
16(8)A 125/250V~T55, T125/55 (cURus)
20(8)A 125/250V~T55, T125/55 (cURus)
25(8)A 125/250V~T55 (cURus)
16A 6~48VDC T55, 40T125/55 (cURus)
20A 6~36VDC T55, 40T125/55 (cURus)
Dielectric strength : 1,500VAC for 1 min.
Insulation resistance : 100M ohm MIN. at 500VDC
Initial contact resistance : 20m ohm MAX
Electrical life : 10,000 cycles

ON-OFF-ON, ON-ON, ON-OFF or other momentary functions available
Two LEDs for custom color selection
quick connecting terminals
Plastic housing and actuator
Suitable for outdoor application
Sealed to protection level IP67 ( passing MIRDC's TAF laboratory test )
