Momentary Lock Rocker Toggle Switch 250VAC Heavy Duty Momentary Switch

Name: Momentary Lock Rocker Toggle Switch 250VAC Heavy Duty Momentary Switch
Brand: Dongguan Yeswitch Electronics Co.,Ltd
SKU: X7 SERIES
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: UL

Model Number: X7 SERIES

Payment & Shipping Terms

Price: Negotiable

Payment Terms: T/T

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                rocker toggle switch 250vac, 250vac heavy duty momentary switch, momentary lock rocker toggle switch


Model NO.:	X7 SERIES	Lamp:	Without Lamp
Color:	Black	Condition:	New
Model:	X7 Series	Rating:	16(8)A125/250VAC-(Curus),20(8)a 125/250VAC~
Dielectric Withstand Voltage:	1500VAC 1 Minute	Insulation Resistance:	500VDC 100m Q(Min)
Contact Resistance:	20m Ohm Initial(Max.)	Waterproof Grade:	IP67
Pole:	Single Pole/Double Pole	Terminal Type:	Quick Connect/Solder
Base Color:	Black/White	Actuator Color:	Black/White
Function:	On-off/on-on/on-off-on/(on)-off/(on)-on	Transport Package:	Carton
Specification:	30.2*22mm	Trademark:	X7 Series
Origin:	China	HS Code:	8536500000
Supply Ability:	50, 000/Month	Package Size:	9.00cm * 8.00cm * 5.00cm
Package Gross Weight:	0.010kg	Customization:	Available
Usage:	Electrical Appliance, Machinery, Digital Products, Communication, Vehicle, Toys, Industrial Controls,Van Conversions,Marine Panels,	Standard:	Standard
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Model NO.:	X7 SERIES
Lamp:	Without Lamp
Color:	Black
Condition:	New
Model:	X7 Series
Rating:	16(8)A125/250VAC-(Curus),20(8)a 125/250VAC~
Dielectric Withstand Voltage:	1500VAC 1 Minute
Insulation Resistance:	500VDC 100m Q(Min)
Contact Resistance:	20m Ohm Initial(Max.)
Waterproof Grade:	IP67
Pole:	Single Pole/Double Pole
Terminal Type:	Quick Connect/Solder
Base Color:	Black/White
Actuator Color:	Black/White
Function:	On-off/on-on/on-off-on/(on)-off/(on)-on
Transport Package:	Carton
Specification:	30.2*22mm
Trademark:	X7 Series
Origin:	China
HS Code:	8536500000
Supply Ability:	50, 000/Month
Package Size:	9.00cm * 8.00cm * 5.00cm
Package Gross Weight:	0.010kg
Customization:	Available
Usage:	Electrical Appliance, Machinery, Digital Products, Communication, Vehicle, Toys, Industrial Controls,Van Conversions,Marine Panels,
Standard:	Standard
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.
:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.
Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Product Description

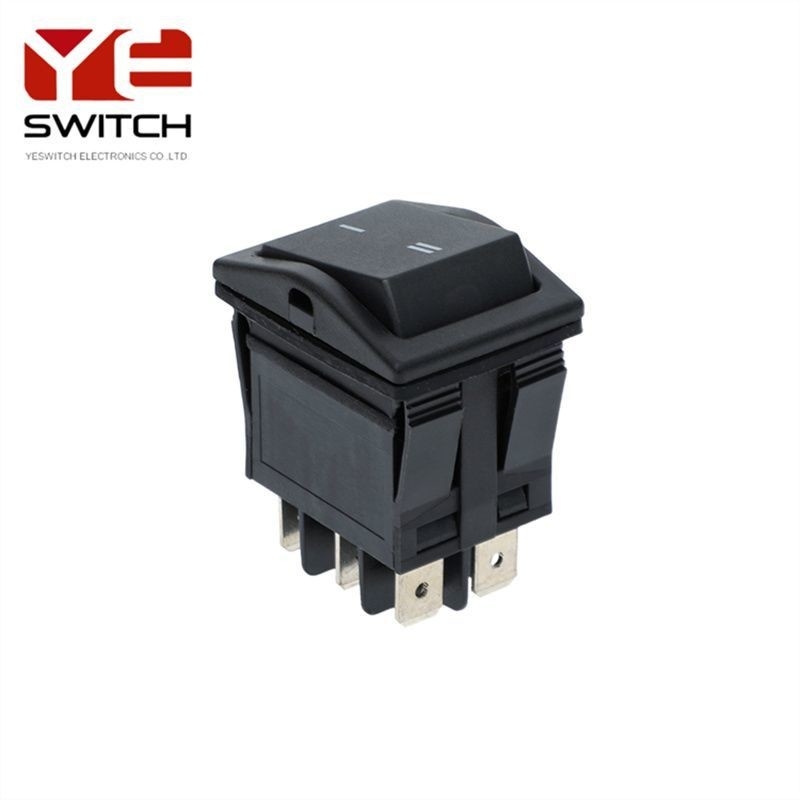

X7 Series Momentary Lock IP67 Waterproof Rocker Switch

The X7 series rocker switch is UL listed and rated to IP67 standards for total protection from dust and waterproof,which can effectively prevent water droplets, dust and other debris from entering the inside of the switch to ensure the normal use and safety performance of the switch.

The IP67 rocker switch has single pole and double pole function and moisture and dust resistant.Terminals are quick connect and solder terminal,contacts are copper alloy or silver plated copper alloy,base and actuator are black or white nylon.

The X7 series rocker switches offer styling and comfort. Oversized actuator magnifies visual appeal and the ease of user experience.The X7 series rocker switch has a high current of rated for 6(8)A 125/250VAC with cURus, 20(8)A 125/250VAC with cURus,which can meet the needs of various electrical appliances.The automotive rocker switch in non-illuminated versions featuring customizable,curved actuators.These custom automotive rocker switches come with multiple color and marking options for the actuator.

The full waterproof X7 series high current rocker switch is recommended for use in industrial controls,van conversions,marine panels,automotive,motor controls,trucks and buses.

MODEL:	X7 SERIES
RATING:	16(8)A125/250VAC-(cURus) 20(8)A 125/250VAC~(cURus)
DIELECTRIC WITHSTAND VOLTAGE:	1500VAC 1 MINUTE
INSULATION RESISTANCE:	500VDC 100M ohm(MIN)
CONTACT RESISTANCE:	20m ohm INITIAL(MAX.)
ELECTRICAL LIFE:	10,000 CYCLES
WATERPROOF GRADE:	IP67
TERMINAL TYPE:	QUICK CONNECT/SOLDER
POLE:	SINGLE POLE/DOUBLE POLE
BASE COLOR:	BLACK/WHITE
ACTUATOR COLOR:	BLACK/WHITE
ILLUMINATED TYPE:	NONE/LED
FUNCTION:	ON-OFF/ON-ON/ON-OFF-ON/ (ON)-OFF/(ON)-ON/(ON)-OFF-(ON)/ (ON)-OFF-ON
