Sealed Yellow Push Pull Button Switches Lawn Mower Seat Safety Switch 96VDC

Name: Sealed Yellow Push Pull Button Switches Lawn Mower Seat Safety Switch 96VDC
Brand: Dongguan Yeswitch Electronics Co.,Ltd
SKU: PTO Switch
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: ISO9001, CCC, VDE, CQC,RoHS,Reach

Model Number: PTO Switch

Payment & Shipping Terms

Price: Negotiable

Payment Terms: T/T

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Sealed push pull button, yellow push pull button, lawn mower seat safety switch 96VDC


Model NO.:	PTO Switch	Wiring:	Solder Terminal
Application:	Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home	Type:	Composite
Number Of Switch:	Multi Control Switch	Structure:	Power Built-in Type
Usage:	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch	Kind:	Double-pole On-off Switch
Detection Method:	Reflection Type	Cycle Life:	Resistive:100,000,Inductive:40,000
Operating Voltage Range:	9-96 VDC	Operating Current:	10mA-10A@ 9-16VDC,10mA-500mA@ 48
Contact Resistance:	50mohms Max, New At 10mA,12 VDC	Ingress Protection:	IP67, With Sealed Mating Connect
Operating Temperature Range:	-40~85 Degree	Humidity:	95% Relative Humidity,Non-Condensing
Transport Package:	Carton	Specification:	CE, ROHS, SGS, CQC
Protection:	Durable, Explosion-Proof, Waterproof, Dust-Proof	Feature:	Flat

Model NO.:	PTO Switch
Wiring:	Solder Terminal
Application:	Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type:	Composite
Number Of Switch:	Multi Control Switch
Structure:	Power Built-in Type
Usage:	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind:	Double-pole On-off Switch
Detection Method:	Reflection Type
Cycle Life:	Resistive:100,000,Inductive:40,000
Operating Voltage Range:	9-96 VDC
Operating Current:	10mA-10A@ 9-16VDC,10mA-500mA@ 48
Contact Resistance:	50mohms Max, New At 10mA,12 VDC
Ingress Protection:	IP67, With Sealed Mating Connect
Operating Temperature Range:	-40~85 Degree
Humidity:	95% Relative Humidity,Non-Condensing
Transport Package:	Carton
Specification:	CE, ROHS, SGS, CQC
Protection:	Durable, Explosion-Proof, Waterproof, Dust-Proof
Feature:	Flat

Product Description

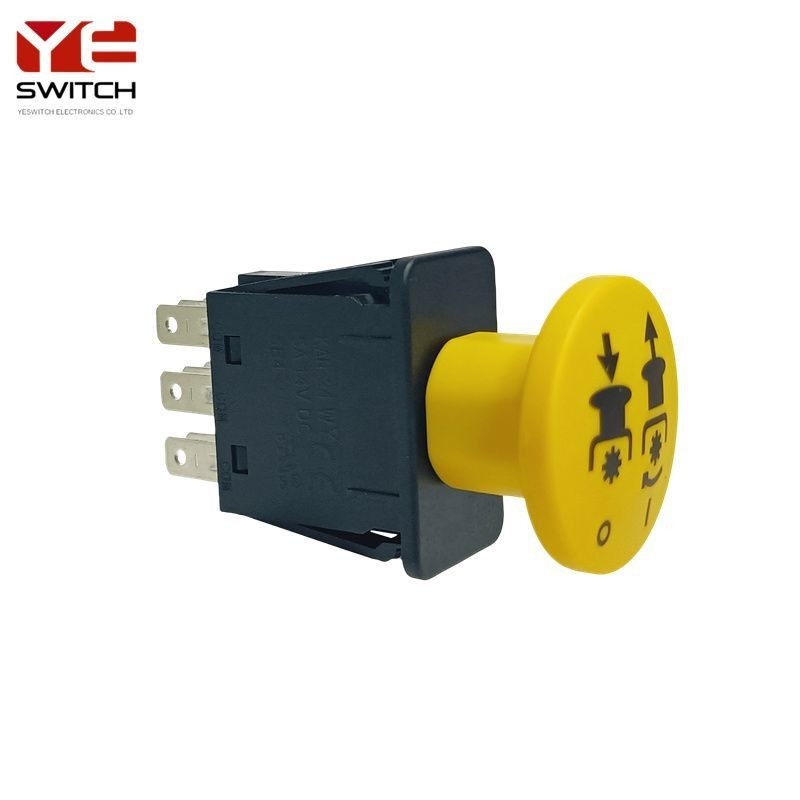

Sealed Push-Pull Switches For Lawn Mower Tractors
YESWITCH sealed push-pull switches protect the safe operation of your equipment as it is continuously exposed to water,debris,dust and salt. ldeal for the switching of implements on gas,diesel,and battery powered equipment. Rated for as low as 10mA and up to 10A,use them as an input to a controller or for direct switching of commercial grade PTO clutches. The push button switches knob can be customized for color and graphics.

YESWITCH Sealed Universal Power Take-Off switch for the outdoor power equipment market, designed to help provide a dependable and safe experience for ride-on mower operators.

The IP67 push-pull take-off(PTO) switch is used in outdoor power equipment,construction,farm&agricultural,light industrial,material handling,off-highway vehicles and lawn mower tractors.

The Sealed Universal PTO switch is expertly engineered and features:

A rugged, compact housing that is highly resistant to shock and vibration
Universal application from 10mA to 10Amps
A push/pull design that protects against inadvertent actuation
User-friendly and ergonomic styling
Full autonomy, with no need for a controller

SPECIFICATION
Cycle Life:	Resistive:100,000,Inductive:40,000
Operating Voltage Range:	9-96 VDC
Operating Current:	10mA-10A@ 9-16VDC, 10mA-500mA@ 48-96 VDC
Contact Resistance:	50mOhms max, New at 10mA,12 VDC
Ingress Protection:	IP67, with sealed mating connector
Operating Temperature Range:	-40~85 Degree
Humidity:	95% Relative Humidity,non-condensing

Sealed Yellow Push Pull Button Switches Lawn Mower Seat Safety Switch 96VDC 0
