3mm 400mA PTO Switch Control Tractor Hydraulic Electronic Push Button IP67

Name: 3mm 400mA PTO Switch Control Tractor Hydraulic Electronic Push Button IP67
Brand: Dongguan Yeswitch Electronics Co.,Ltd
SKU: M30 Series
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: ISO9001, CCC

Model Number: M30 Series

Payment & Shipping Terms

Price: Negotiable

Payment Terms: T/T

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3mm PTO Switch, 400mA  PTO Switch, electronic push button IP67


Model NO.:	M30 Series	Wiring:	Single Live Line
Application:	Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home	Type:	Composite
Number Of Switch:	Single Control Switch	Structure:	Power Built-in Type
Usage:	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch	Kind:	Double-pole On-off Switch
Switch Current:	0.5A Max	Switch Voltage:	0-48VDC
Switch Power:	10W/Va	Conduction Travel:	3mm
Total Travel:	5mm	Operating Force:	20n
Temperature Range:	-40 To 85 Degrees	Ingress Protection:	IP67
Electrical Life:	24V 400mA 100,000 Cycles	Mechanical Life:	1,000,000 Cycles
Specification:	30mm	Supply Ability:	500.000/Month
Package Size:	9.00cm * 8.00cm * 5.00cm	Package Gross Weight:	0.010kg
Protection:	Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation	Feature:	Flat

Model NO.:	M30 Series
Wiring:	Single Live Line
Application:	Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type:	Composite
Number Of Switch:	Single Control Switch
Structure:	Power Built-in Type
Usage:	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind:	Double-pole On-off Switch
Switch Current:	0.5A Max
Switch Voltage:	0-48VDC
Switch Power:	10W/Va
Conduction Travel:	3mm
Total Travel:	5mm
Operating Force:	20n
Temperature Range:	-40 To 85 Degrees
Ingress Protection:	IP67
Electrical Life:	24V 400mA 100,000 Cycles
Mechanical Life:	1,000,000 Cycles
Specification:	30mm
Supply Ability:	500.000/Month
Package Size:	9.00cm * 8.00cm * 5.00cm
Package Gross Weight:	0.010kg
Protection:	Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation
Feature:	Flat

Product Description

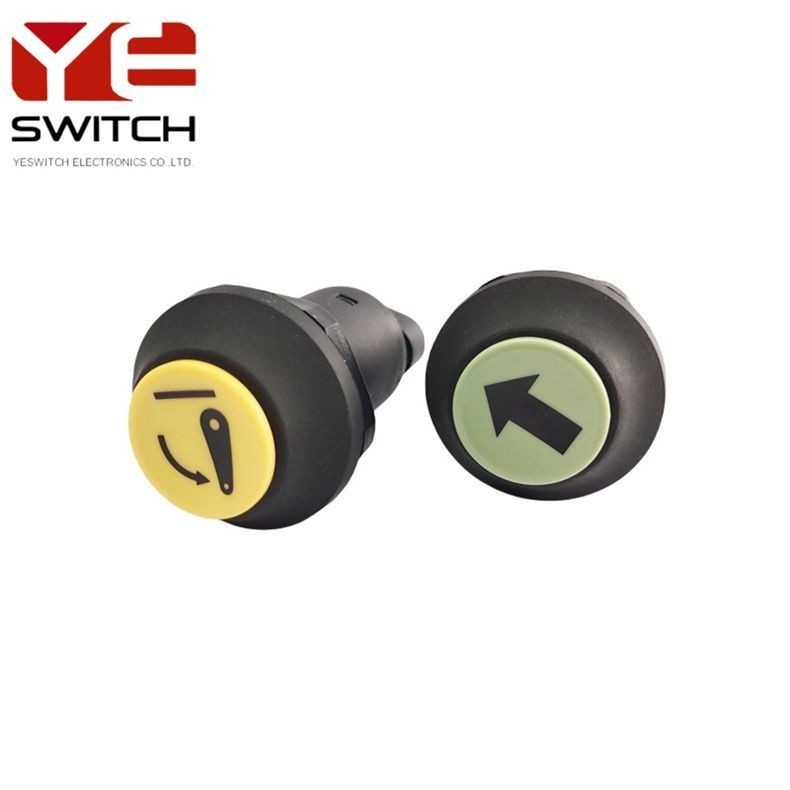

M30 Electronic Push Button Switch Control Tractor Hydraulic

Hydraulic waterproof push button switches, as an essential component of agricultural machinery parts, provide operators with a convenient control method. This momentary push button switch is usually designed with buttons in various colors to meet the operational needs and aesthetic considerations of different users or different machinery.

In agricultural machinery, especially heavy equipment such as tractors, hydraulic waterproof push button switch plays a vital role. It's used to control actions such as lifting, raising, and lowering of tractors, ensuring that the equipment can perform various agricultural tasks precisely and efficiently.

The design of buttons in multiple colors not only enhances the intuitiveness of operation but also allows operators to quickly identify and operate the corresponding functions based on different colors. For example, a red button may represent an emergency stop or a dangerous operation, while a green button typically represents start or safe operation. This color-coding system greatly improves operational safety and efficiency.

For agricultural machinery manufacturers and maintenance providers, offering hydraulic waterproof push button momentary switch in various colors is also a value-added service. They can customize buttons in specific colors according to the specific needs or preferences of customers, thereby enhancing customer satisfaction and loyalty to the product.

SWITCH CURRENT:	0.5A MAX
SWITCH VOLTAGE:	0-48VDC
SWITCH POWER:	10W/VA
CONDUCTION TRAVEL:	3MM±1MM
TOTAL TRAVEL:	5MM±1MM
OPERATING FORCE:	20N±5N
TEMPERATURE RANGE:	-40 TO 85 DEGREES
INGRESS PROTECTION:	IP67
ELECTRICAL LIFE:	24V 400MA 100,000 CYCLES
MECHANICAL LIFE:	1,000,000 CYCLES

3mm 400mA PTO Switch Control Tractor Hydraulic Electronic Push Button IP67 0
