Sealed Universal PTO Switch Lawn Mower Tractors Power Take Off Switch

Name: Sealed Universal PTO Switch Lawn Mower Tractors Power Take Off Switch
Brand: Dongguan Yeswitch Electronics Co.,Ltd
SKU: Take-Off Switch
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: ISO9001, CCC, VDE, CQC,RoHS,Reach

Model Number: Take-Off Switch

Payment & Shipping Terms

Price: Negotiable

Payment Terms: T/T

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Sealed PTO Switch, Universal PTO Switch, Tractors Power Take off Switch


Model NO.:	Take-Off Switch	Wiring:	Solder Terminal
Application:	Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home	Number Of Switch:	Multi Control Switch
Structure:	Power Built-in Type	Usage:	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind:	Double-pole On-off Switch	Detection Method:	Reflection Type
Cycle Life:	Resistive:100,000,Inductive:40,000	Operating Voltage Range:	9-96 VDC
Operating Current:	10mA-10A@ 9-16VDC,10mA-500mA@ 48	Contact Resistance:	50mohms Max, New At 10mA,12 VDC
Ingress Protection:	IP67, With Sealed Mating Connect	Operating Temperature Range:	-40~85 Degree
Humidity:	95% Relative Humidity,Non-Condensing	Specification:	CE, ROHS, SGS, CQC
Protection:	Durable, Explosion-Proof, Waterproof, Dust-Proof	Feature:	Flat

Model NO.:	Take-Off Switch
Wiring:	Solder Terminal
Application:	Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Number Of Switch:	Multi Control Switch
Structure:	Power Built-in Type
Usage:	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind:	Double-pole On-off Switch
Detection Method:	Reflection Type
Cycle Life:	Resistive:100,000,Inductive:40,000
Operating Voltage Range:	9-96 VDC
Operating Current:	10mA-10A@ 9-16VDC,10mA-500mA@ 48
Contact Resistance:	50mohms Max, New At 10mA,12 VDC
Ingress Protection:	IP67, With Sealed Mating Connect
Operating Temperature Range:	-40~85 Degree
Humidity:	95% Relative Humidity,Non-Condensing
Specification:	CE, ROHS, SGS, CQC
Protection:	Durable, Explosion-Proof, Waterproof, Dust-Proof
Feature:	Flat

Product Description

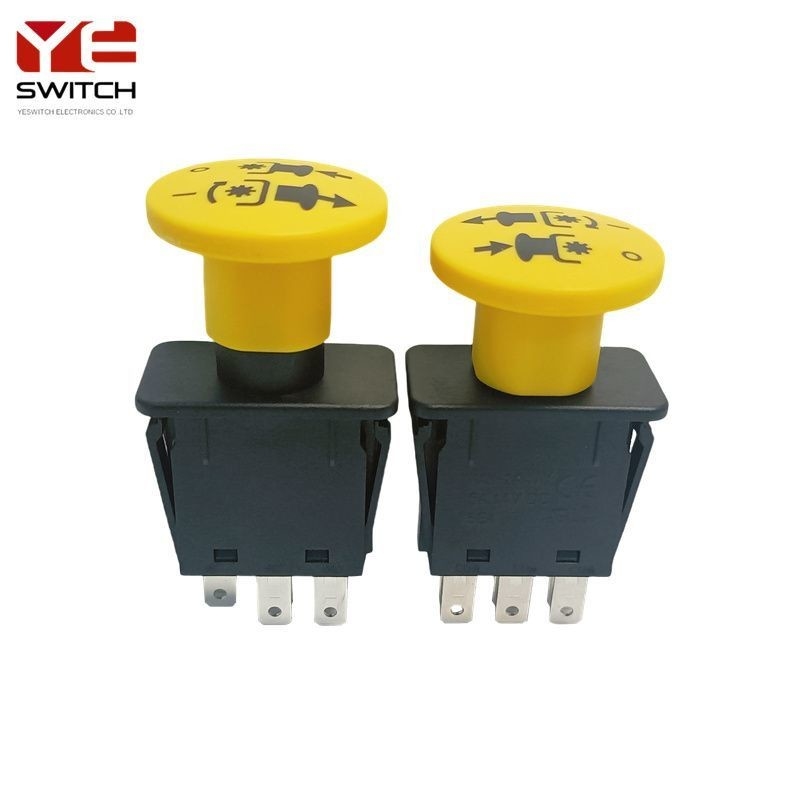

Sealed Universal Power Take-off Switch For Lawn Mower Tractor
YESWITCH Sealed Universal Power Take-Off switch for the outdoor power equipment market, designed to help provide a dependable and safe experience for ride-on mower operators.

The sealed push/pull switch offers reliability and ensures longer part life when compared with non-sealed parts. Protected from the elements, the Sealed Power Take-Off (PTO) switch keeps out grass, dirt, water, oil and other contaminants that reduce switch life. With an IP67 rating, this power take-off automotive switches are dust-tight and protects against water ingress.

The PTO waterproof push button switch is a critical safety device developed to prevent unintentional blade actuation of lawn equipment. This automotive push button switches are part of a series of controls that comprise a mower's safety interlock system, requiring riders to use proper procedure when operating machinery.

The YESWITCH Sealed Universal PTO switch is not only applicable to mowing equipment, but can also be used in light agricultural machinery, construction equipment and material-handling units.

The Sealed Universal PTO switch is expertly engineered and features:

A rugged, compact housing that is highly resistant to shock and vibration
Universal application from 10mA to 10Amps
A push/pull design that protects against inadvertent actuation
User-friendly and ergonomic styling
Full autonomy, with no need for a controller

SPECIFICATION
Cycle Life:	Resistive:100,000,Inductive:40,000
Operating Voltage Range:	9-96 VDC
Operating Current:	10mA-10A@ 9-16VDC, 10mA-500mA@ 48-96 VDC
Contact Resistance:	50mOhms max, New at 10mA,12 VDC
Ingress Protection:	IP67, with sealed mating connector
Operating Temperature Range:	-40~85 Degree
Humidity:	95% Relative Humidity,non-condensing
