Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS

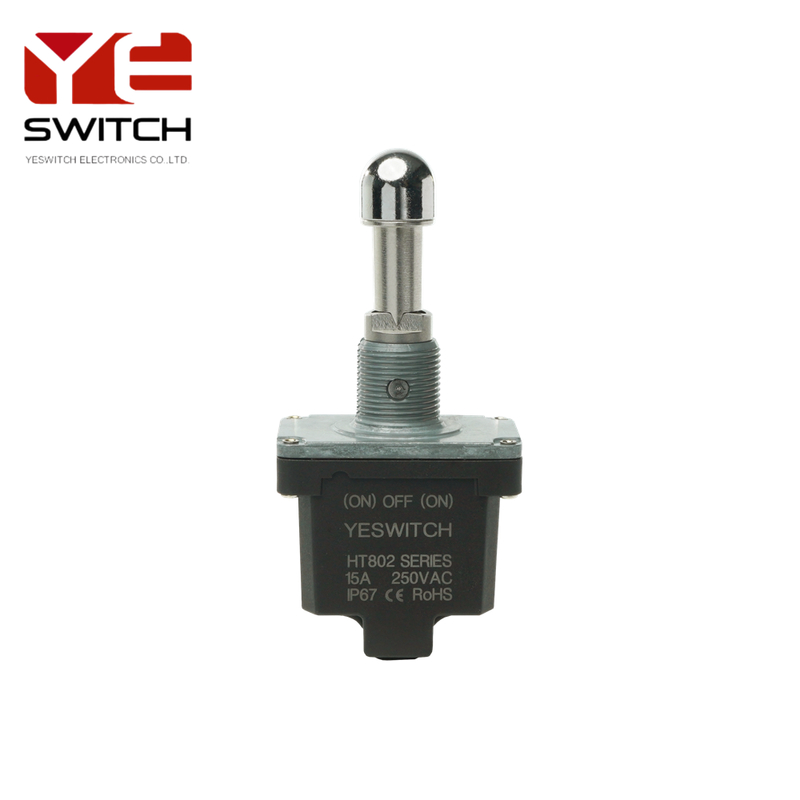

Model Number: HT802DG7B4T1D11
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
SHOCK STANDARD: |
MIL-STD-202F |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
SHOCK STANDARD: |
MIL-STD-202F |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |
| Parameter | Value |
|---|---|
| CONTACT RESISTANCE | 20m ohm(Max) |
| INSULATION RESISTANCE | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE | 100,000 CYCLES |
| OPERATING TEMPERATURE | -40 to +85 DEGREES |
| FRONT SEAL | IP68 |
| Load Type | Rating |
|---|---|
| RESISTIVE LOAD | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD | 15A 28VDC |
| Component | Material |
|---|---|
| ACTUATOR | COPPER ALLOY |
| HOUSING | NYLON (UL94V-0) |
| BUSHING | ZINC ALLOY |
| TERMINAL | COPPER ALLOY |
| CONTACT | COPPER ALLOY |
| O-RING | SILICONE RUBBER |
| SHELL | STAINLESS STEEL |
