Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS

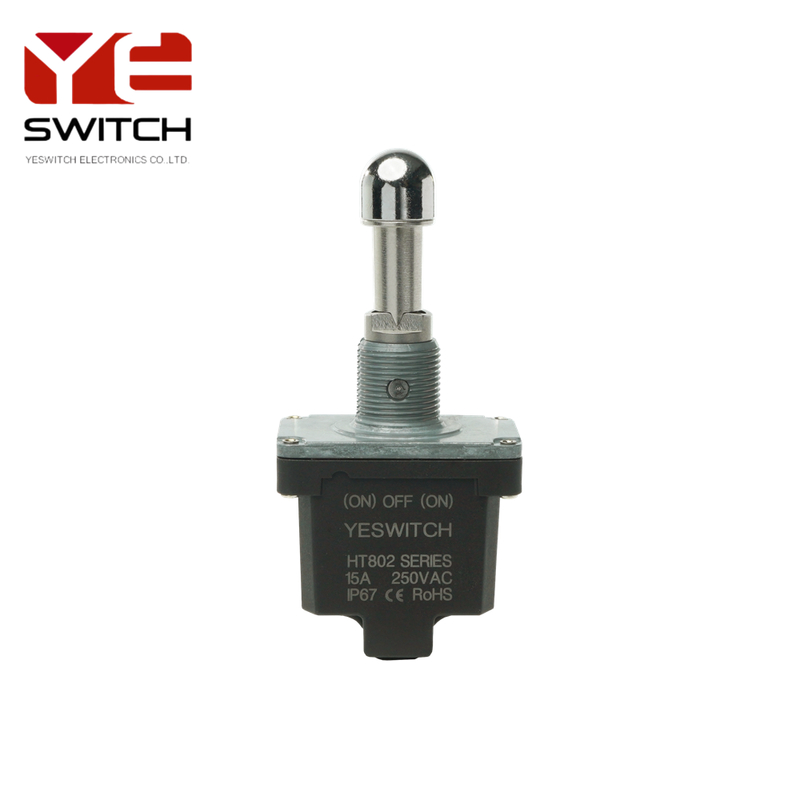

Model Number: HT802DG7B4T1D11
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
SHOCK STANDARD: |
MIL-STD-202F |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
SHOCK STANDARD: |
MIL-STD-202F |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |
| Parameter | Value |
|---|---|
| Contact Resistance | 20m ohm (Max) |
| Insulation Resistance | 100VDC-100M ohm (Min) |
| Dielectric Strength | 1500VAC-1MINUTE |
| Mechanical Life Cycle | 100,000 cycles |
| Operating Temperature | -40 to +85°C |
| Front Seal Rating | IP68 |
| Ratings | |
| Resistive Load | 16A 125/250VAC, 15A 28VDC |
| Inductive Load | 15A 28VDC |
| Materials | |
| Actuator | Copper Alloy |
| Housing | Nylon (UL94V-0) |
| Bushing | Zinc Alloy |
| Terminal | Copper Alloy |
| Contact | Copper Alloy |
| O-Ring | Silicone Rubber |
| Shell | Stainless Steel |
