Detalles del producto
Lugar de origen: PORCELANA
Nombre de la marca: YESWITCH
Certificación: IP68,CE,RoHS
Número de modelo: HT802SGDB7T1D24
Condiciones de pago y envío
Cantidad de orden mínima: 500
Precio: Negociable
Detalles de empaquetado: Caja de cartón
Tiempo de entrega: 4-6 semanas
Condiciones de pago: T/T
Capacidad de la fuente: 7,000/día
Resistencia de contacto: |
20m ohm (máximo) |
Resistencia a aislamiento: |
100mΩ min/500VDC |
Ciclo de vida mecánico: |
100,000 ciclos |
Temperatura de funcionamiento: |
-40 a +85 grados |
Sello delantero: |
IP68 |
Carga resistiva: |
16A 125/250VAC, 15A 28VDC |
Carga inductiva: |
15A 28VDC |
Palanca: |
Aleación de cobre |
Alojamiento: |
Nylon (UL94V-0) |
Terminal: |
Aleación de cobre |
Temperatura de soldadura de olas: |
260 ± 5c |
SHEEL: |
ACERO INOXIDABLE |
Resistencia de contacto: |
20m ohm (máximo) |
Resistencia a aislamiento: |
100mΩ min/500VDC |
Ciclo de vida mecánico: |
100,000 ciclos |
Temperatura de funcionamiento: |
-40 a +85 grados |
Sello delantero: |
IP68 |
Carga resistiva: |
16A 125/250VAC, 15A 28VDC |
Carga inductiva: |
15A 28VDC |
Palanca: |
Aleación de cobre |
Alojamiento: |
Nylon (UL94V-0) |
Terminal: |
Aleación de cobre |
Temperatura de soldadura de olas: |
260 ± 5c |
SHEEL: |
ACERO INOXIDABLE |

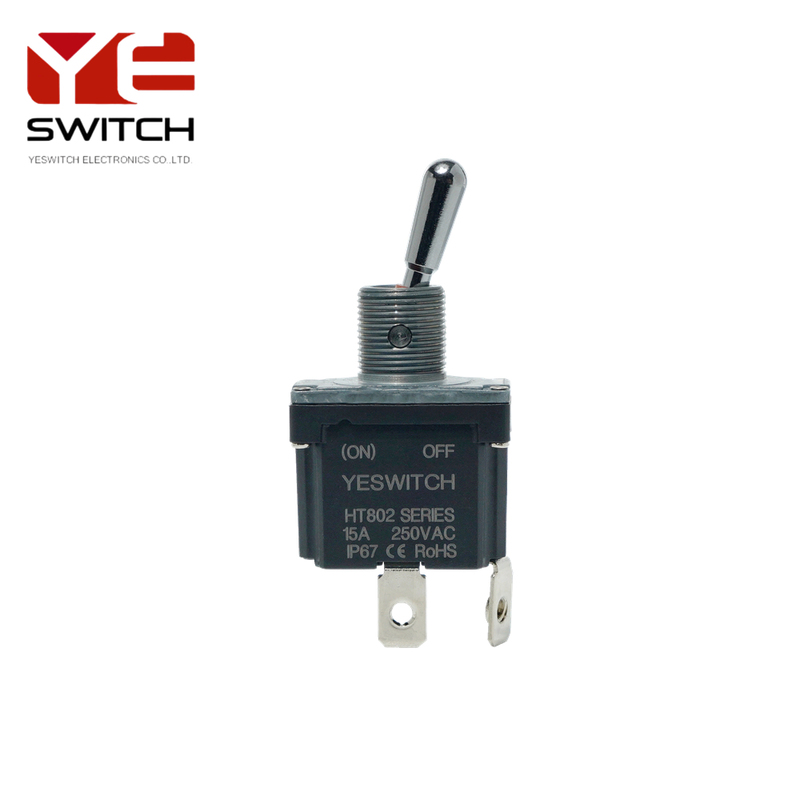

Waterproof And Dustproof Industrial Toggle Switch With UL And CE Certificate
Designed for extreme environments, our industrial toggle switch delivers unwavering reliability where it matters most. Built to the highest standards, it features a robust IP67 rating, ensuring complete protection against dust, water, and moisture ingress—even surviving temporary immersion. This makes it the ideal choice for harsh applications like agricultural machinery, outdoor equipment, marine use, and industrial washdown areas.
Certified by both UL and CE, this switch guarantees compliance with rigorous international safety and performance regulations. Its heavy-duty construction incorporates high-impact thermoplastic housing and a corrosion-resistant stainless steel actuator for exceptional durability and long-term performance under demanding conditions.
The switch offers a clear, tactile operation with highly visible markings for easy status confirmation. Available in multiple configurations (ON-OFF, ON-ON, ON-OFF-ON) and terminal types, it provides flexible integration into any control system. Engineered for resilience and safety, this toggle switch is the dependable solution to minimize downtime and enhance operational integrity in any challenging setting.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
| SPECIFICATION | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
|
MATERIAL |
|
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
![]()
![]()
