Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS

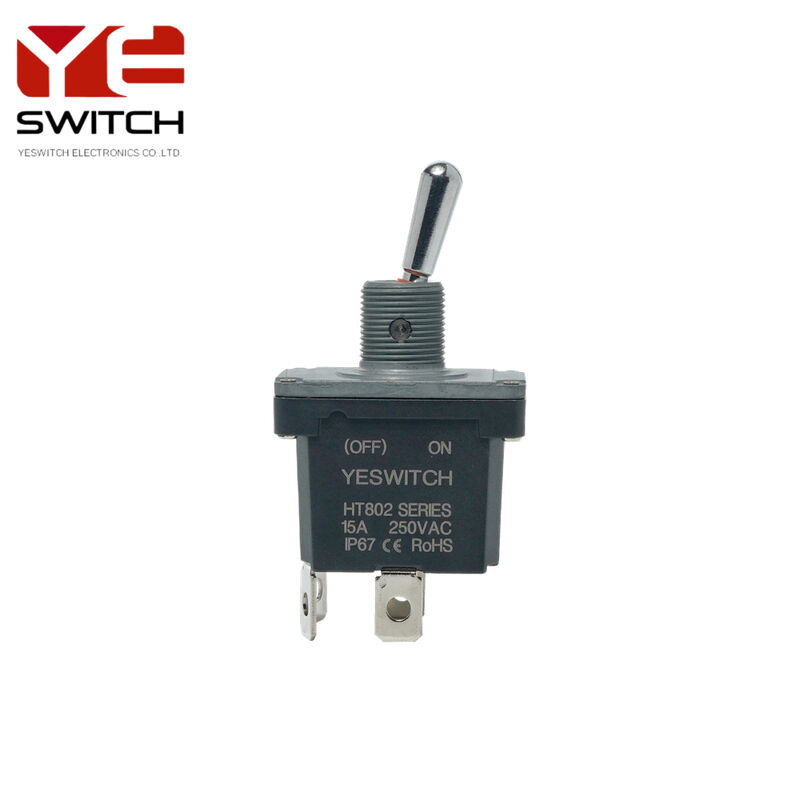

Model Number: HT802DGAB7T1D23
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20mΩ.(Max) |
INSULATION RESISTANCE: |
100MΩ MIN/100VDC |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85℃ |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
15A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
DIELECTRIC STRENGTH: |
1500VAC 1MINUTE |
SALT SPRAY TEST: |
WITHSTANDS 96 TO 120 HOURS OR MORE |
CONTACT RESISTANCE: |
20mΩ.(Max) |
INSULATION RESISTANCE: |
100MΩ MIN/100VDC |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85℃ |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
15A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
DIELECTRIC STRENGTH: |
1500VAC 1MINUTE |
SALT SPRAY TEST: |
WITHSTANDS 96 TO 120 HOURS OR MORE |
| Contact Resistance | 20mΩ (Max) |
| Insulation Resistance | 100MΩ Min/100VDC |
| Mechanical Life Cycle | 100,000 Cycles |
| Operating Temperature | -40 to +85°C |
| Front Seal Rating | IP68 |
| Resistive Load | 15A 125/250VAC, 15A 28VDC |
| Inductive Load | 15A 28VDC |
| Lever Material | Stainless Steel |
| Housing Material | Nylon (UL94V-0) |
| Terminal Material | Copper Alloy |
| Wave Soldering Temperature | 260±5°C |
| Salt Spray Test | Withstands 96 to 120 hours or more |
| Dielectric Strength | 1500VAC 1 Minute |
