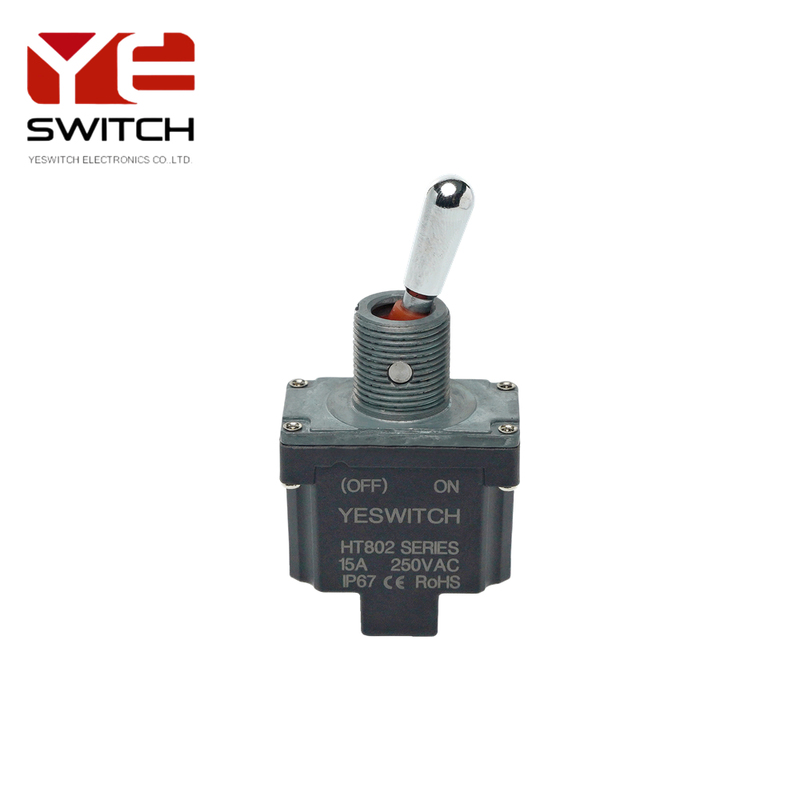

High Current Momentary (OFF) ON Industrial Toggle Switch For Industrial Application

Name: High Current Momentary (OFF) ON Industrial Toggle Switch For Industrial Application
Brand: Dongguan Yeswitch Electronics Co.,Ltd
SKU: HT802SGAB7T1D11
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: IP68,CE,RoHS

Model Number: HT802SGAB7T1D11

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: Negotiable

Packaging Details: Carton

Delivery Time: 4-6 Weeks

Payment Terms: T/T

Supply Ability: 7,000/Day

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                high current industrial toggle switch, momentary off on toggle switch, industrial application toggle switch


CONTACT RESISTANCE:	20m Ohm(Max)	INSULATION RESISTANCE:	100MΩ MIN/500VDC
MECHANICAL LIFE CYCLE:	100.000 CYCLES	OPERATING TEMPERATURE:	-40 To +85 DEGREES
FRONT SEAL:	IP68	RESISTIVE LOAD:	16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:	15A 28VDC	LEVER:	COPPER ALLOY
HOUSING:	NYLON (UL94V-0)	TERMINAL:	COPPER ALLOY
SHOCK TESTING DIRECTION:	6 SIDES	ACTUATION FORCE:	800-1500 GRAMS

CONTACT RESISTANCE:	20m Ohm(Max)
INSULATION RESISTANCE:	100MΩ MIN/500VDC
MECHANICAL LIFE CYCLE:	100.000 CYCLES
OPERATING TEMPERATURE:	-40 To +85 DEGREES
FRONT SEAL:	IP68
RESISTIVE LOAD:	16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:	15A 28VDC
LEVER:	COPPER ALLOY
HOUSING:	NYLON (UL94V-0)
TERMINAL:	COPPER ALLOY
SHOCK TESTING DIRECTION:	6 SIDES
ACTUATION FORCE:	800-1500 GRAMS

Product Description

High Current Momentary (OFF) ON Industrial Toggle Switch For Industrial Application

This heavy-duty momentary toggle switch is engineered for industrial applications requiring robust performance and reliable operation. Designed with a spring-return mechanism, it automatically reverts to the OFF position when released, ensuring safe and precise control. The switch features a high-current capacity of 15A at 250V AC, making it suitable for demanding environments such as manufacturing plants, construction sites, and automation systems. Its rugged metal construction, including a zinc alloy handle and reinforced thermoplastic housing, guarantees durability and longevity even under extreme conditions.

Advanced Technical Specifications

The switch delivers exceptional electrical performance with silver-alloy contacts for minimal resistance and efficient arc quenching. It operates seamlessly across a wide temperature range of -40°C to +85°C and boasts an IP68 rating for resistance against dust, moisture, and oil splashes. The flat outer screw terminals accommodate 10-12 AWG wires, providing secure, vibration-resistant connections. With a mechanical life of 10,000+ cycles, this switch is built to endure high-frequency use without compromising functionality.

Applications and Industrial Use Cases

Ideal for a variety of heavy-duty applications, this switch is commonly used in:

Emergency stop systems for machinery and conveyor belts.
Motor and actuator controls in manufacturing and automation.
Construction equipment such as cranes, hoists, and lifts.
Agricultural machinery requiring momentary activation.

Its fail-safe design prevents accidental operation, enhancing workplace safety and reducing downtime.

Customization and Compliance

The switch complies with IEC 60947-1, UL 508, and RoHS standards, ensuring global reliability and safety. Customization options include illuminated handles for low-light visibility, higher IP ratings IP68 for harsh environments, and custom labeling for specific functional requirements. Easy to install with standard panel cutouts, this switch is a versatile and dependable choice for industrial professionals seeking performance and durability.

FAQ

Q1: When can I get the quotation?

A: We are online all day, so you can get quotation within 24h.

Q2: When can I get the samples?

A: It depends on the express, generally 3-10 days.

Q3: Can you accept small order?

A: Yes, we will try our best to help you with your business.

Q4: What's the lead time of mass production?

A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.

Specification

CONTACT RESISTANCE:	20m ohm(Max)
INSULATION RESISTANCE:	100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:	1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:	100.000 CYCLES
OPERATING TEMPERATURE:	-40 to +85 DEGREES
FRONT SEAL:	IP68

Rating

RESISTIVE LOAD:	16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:	15A 28VDC

Material

ACTUATOR:	COPPER ALLOY
HOUSING:	NYLON (UL94V-0)
BUSHING:	ZINC ALLOY
TERMINAL:	COPPER ALLOY
CONTACT:	COPPER ALLOY
O-RING:	SILICONE RUBBER
SHEEL:	STAINLESS STELL
