Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802DG2B9T5D24
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
VIBRATION TEST TIME: |
2 HOURS EACH DIRECTION |
SHOCK ACTION TIME: |
11±1M SECONDS |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
VIBRATION TEST TIME: |
2 HOURS EACH DIRECTION |
SHOCK ACTION TIME: |
11±1M SECONDS |

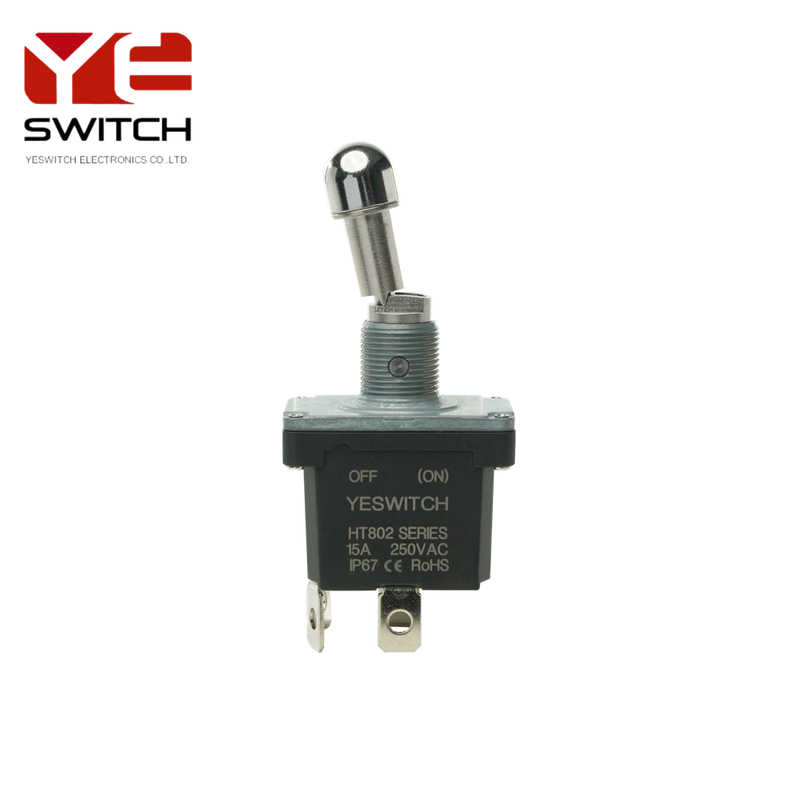

Two Positions OFF-(ON) Momenatry Metal Toggle Switch With PC Terminal
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
Designed for industrial automation, medical equipment, and heavy machinery control systems, this two-position momentary metal toggle switch delivers precise, safe operation while simplifying installation via integrated PC terminals—ideal for applications requiring temporary function activation and reliable circuit control.
At its core, the momentary design prioritizes operational safety: the “OFF” position maintains a constant open circuit for idle states, while the position triggers temporary power supply only when the toggle is held. Upon release, it automatically resets to “OFF,” eliminating risks of unintended prolonged operation—critical for functions like emergency stops, temporary motor activation, or precision tool control in manufacturing lines.
Crafted from high-strength zinc alloy with a nickel-plated finish, the switch boasts industrial-grade durability: it withstands continuous vibration, extreme temperatures, and mild chemical exposure, outperforming plastic alternatives in harsh workshop or outdoor-mounted equipment. Its robust construction also ensures 50,000+ mechanical cycles, extending service life and reducing replacement frequency.
The integrated PC terminals are a key installation advantage: they enable fast, tool-free wire connection with low contact resistance, ensuring stable power transmission. Unlike traditional screw terminals, PC terminals prevent wire loosening from vibration and cut assembly time by 30%—a boon for high-volume equipment production.
Compliant with IEC 60947-3 and UL 508 standards, this switch balances safety, durability, and installability. Whether used in robotic workstations, construction machinery dashboards, or medical device control panels, it delivers consistent performance, minimizing downtime and enhancing operator confidence in critical operations.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
