Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802DG2B9T5D22
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
VIBRATION STANDARD: |
MIL-STD-202F |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |
SHOCK ACCELERATION: |
50G |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
VIBRATION STANDARD: |
MIL-STD-202F |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |
SHOCK ACCELERATION: |
50G |

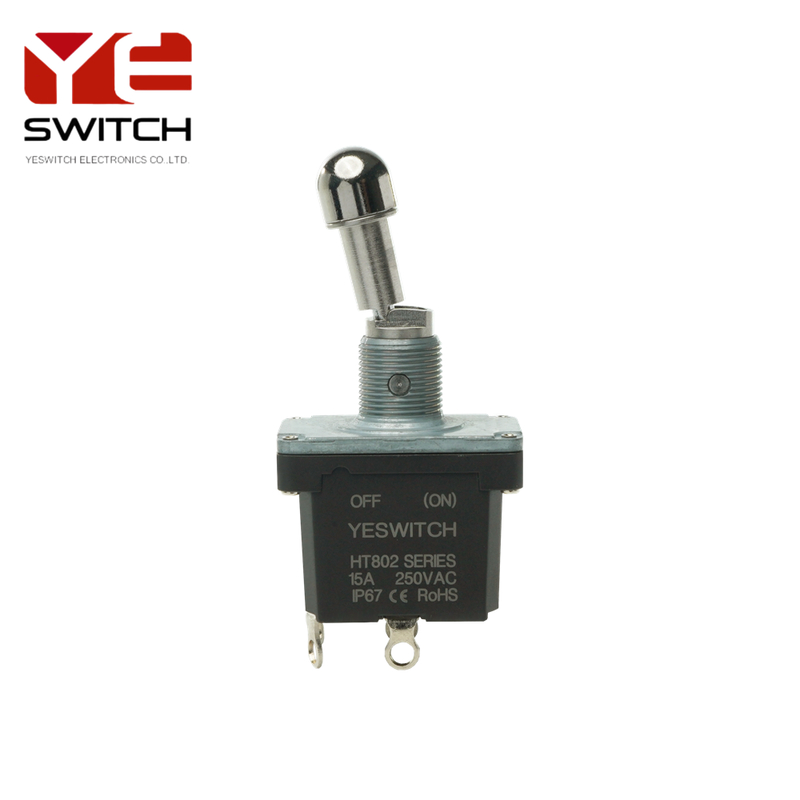

Anti-misoperation Industrial Toggle Switch For High-altitude Work Platform
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
Tailored to address safety risks in high-altitude work scenarios, this anti-misoperation industrial toggle switch serves as a critical control component for high-altitude work platforms (e.g., scissor lifts, boom lifts), effectively preventing accidental triggering of key functions (platform lifting, rotation, extension) that could lead to falls or equipment damage.
Its core anti-misoperation design features a dual-action lockable toggle lever: operators must first press the lever downward to unlock it, then toggle to switch states—eliminating unintended activation from accidental bumps, tool collisions, or operator gloves slipping (a common issue in high-altitude operations). The lever also has a 3mm raised anti-slip texture, ensuring secure grip even with greasy or gloved hands, while its 15° toggle angle balances precision and ease of operation, reducing fatigue during repeated use.
Built for harsh high-altitude conditions, the switch boasts an IP65 ingress protection rating, sealing out rain, fog, and construction-site dust—critical for outdoor or semi-outdoor work environments. The housing is made of die-cast aluminum alloy (surface treated with anti-corrosion powder coating), resisting rust from high-altitude moisture and withstanding 10N impact force. It operates stably across a wide temperature range (-40℃ to 85℃), adapting to cold mountainous areas or hot urban rooftops without performance degradation.
Installation is optimized for compact platform control panels: it fits 16mm standard mounting holes, with a hexagonal locknut that secures against vibration —preventing loosening from platform jolts. Certified by CE and CCC, it complies with global high-altitude equipment safety standards, providing manufacturers with a compliant, risk-mitigating control solution.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
