Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802DG2B4T1D23
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
VIBRATION STANDARD: |
MIL-STD-202F |
RESISTANCE HUMIDITY TEMPERATURE: |
40±2℃ |
WAVE SOLDERING: |
PCB IS 1.6MM IN THICKNES |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
VIBRATION STANDARD: |
MIL-STD-202F |
RESISTANCE HUMIDITY TEMPERATURE: |
40±2℃ |
WAVE SOLDERING: |
PCB IS 1.6MM IN THICKNES |

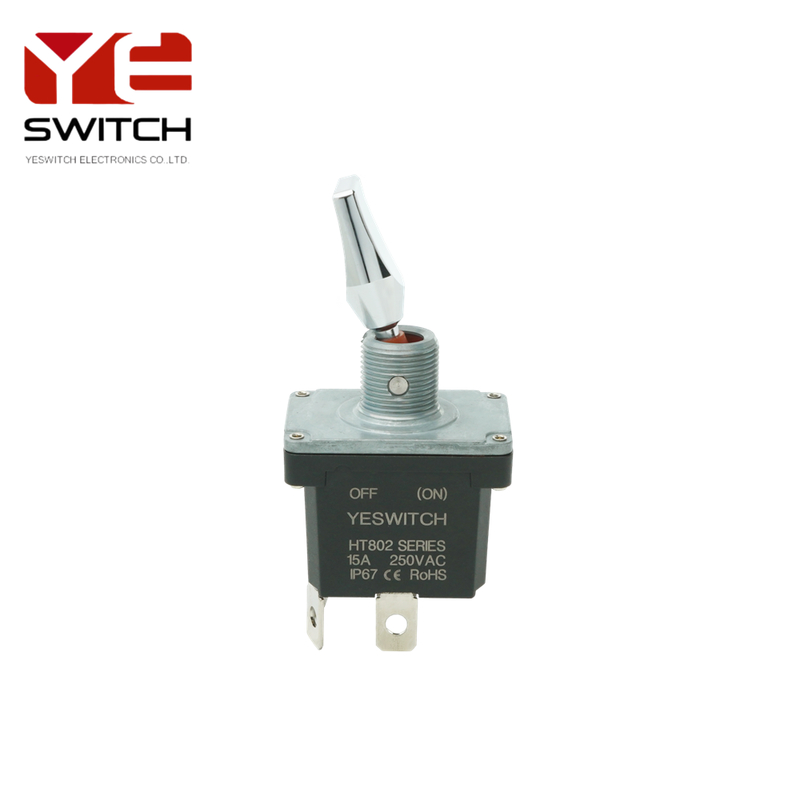

15A 250VAC Industrial Metal Toggle Switch With UL And CE Certificate
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
Engineered for high-load industrial scenarios, this 15A 250VAC industrial metal toggle switch delivers robust electrical performance and compliance with global safety standards, making it a reliable choice for heavy-duty equipment such as manufacturing line controllers, industrial ovens, power distribution cabinets, and heavy machinery control panels.
At its core, the switch boasts a 15A 250VAC rated current/voltage—ideal for handling high-power industrial circuits. Its contacts are made of silver-nickel alloy, which reduces contact resistance to ≤30mΩ, minimizes heat generation during continuous high-load operation, and prevents contact welding. This design ensures stable power transmission, even for equipment requiring prolonged runtime, such as conveyor belts or industrial heaters.
The switch’s structure prioritizes industrial durability: the housing and toggle lever are constructed from 304 stainless steel, offering resistance to industrial chemicals and salt spray, while withstanding 8N impact force. It also features an IP65 ingress protection rating, sealing out dust and water jets—critical for workshops with frequent cleaning or outdoor industrial setups.
Compliance is a key highlight: the switch holds UL 508 certification and CE marking, ensuring seamless integration into global industrial supply chains. Installation is optimized for efficiency: it fits standard panel mounting holes, with a threaded locknut that secures the switch against vibration. The screw-type terminals accept wires, enabling tool-free, anti-loose wiring—reducing on-site installation time by 30% compared to pin-type terminals.
With a mechanical lifespan of over 100,000 operations, this switch balances high performance, durability, and compliance, making it a cost-effective solution for manufacturers prioritizing safety and long-term equipment reliability.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
