Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802DG3B3T1D23
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
VIBRATION STANDARD: |
MIL-STD-202F |
SHOCK ACCELERATION: |
50G |
SHOCK TESTING DIRECTION: |
6 SIDES |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
VIBRATION STANDARD: |
MIL-STD-202F |
SHOCK ACCELERATION: |
50G |
SHOCK TESTING DIRECTION: |
6 SIDES |

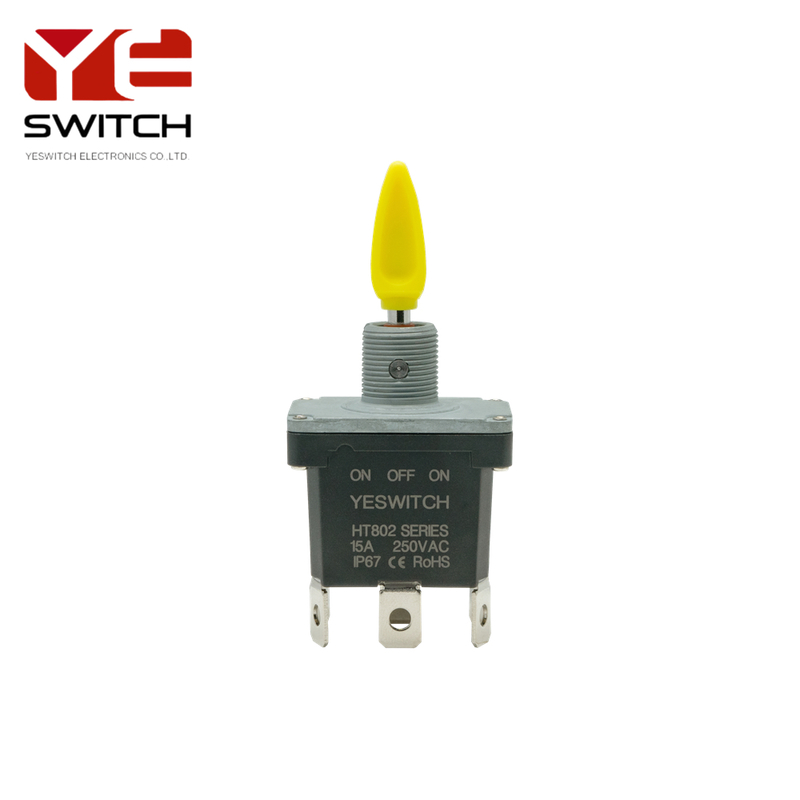

Industrial Metal Toggle Switch With Three Positions On-off-on Function
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
Engineered for durability in demanding industrial environments, this heavy-duty toggle switch features a solid metal housing and lever, providing exceptional resistance to impact, vibration, and corrosion. Its three-position (On-Off-On) design allows for versatile control of electrical circuits, enabling users to select between two active states (On) or a neutral center position (Off) for safe equipment shutdown or mode switching. The switch is rated for high current applications, making it ideal for controlling motors, pumps, lighting systems, and machinery in manufacturing plants, construction sites, or automotive workshops.
The switch utilizes silver-plated copper contacts to ensure low resistance and minimal arcing, extending its operational lifespan beyond 100,000 cycles. Its sealed construction meets IP68 standards, protecting against dust and water jets, while the metal body effectively dissipates heat during prolonged use. The ergonomic lever offers smooth, tactile feedback, reducing operator fatigue and preventing accidental actuation. Terminal connections accept screw-type wiring for secure, vibration-resistant installations, and the compact panel-mount design fits standard cutouts .
This switch combines rugged performance with safety assurance. Its three-position functionality is indispensable for applications requiring reversible motor control, dual-speed operation, or emergency stop capabilities. Whether used in hydraulic systems, conveyor belts, or industrial machinery, this metal toggle switch delivers consistent, long-lasting performance under extreme conditions, minimizing downtime and maintenance costs.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
