Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802DG1B3T1D25
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |

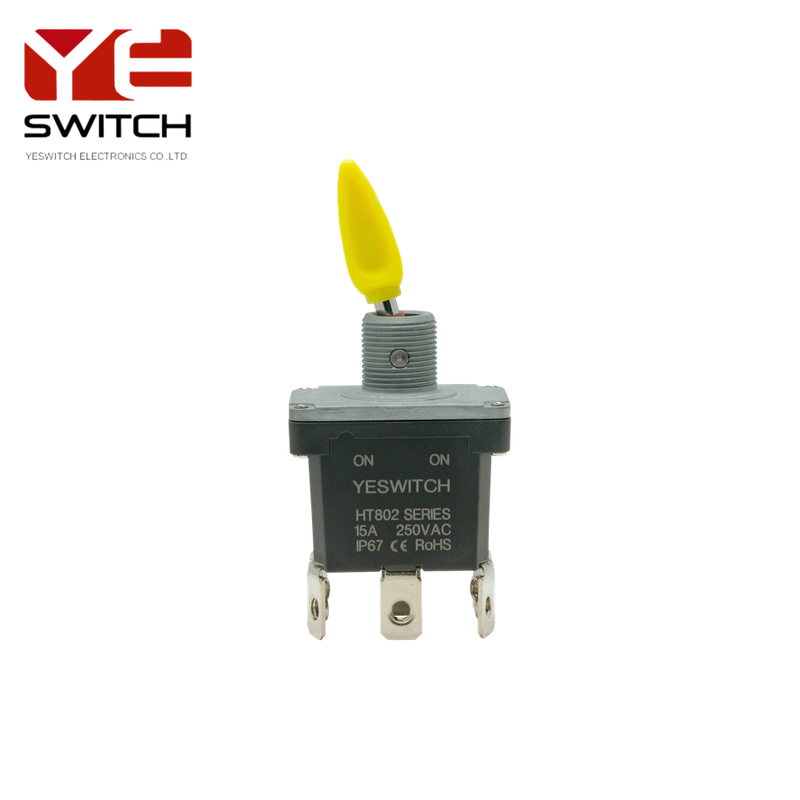

High Current Metal Toggle Switch With Outer Screw Terminal For Heavy Equipment
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
Designed for the rigorous demands of heavy equipment, this high-current metal toggle switch stands as a robust solution for power control in challenging industrial environments. Crafted with a durable metal housing, it resists impact, corrosion, and extreme temperatures, ensuring reliable performance in construction machinery, agricultural vehicles, and industrial machinery. Its high-current capacity makes it suitable for handling heavy electrical loads, from motors and pumps to lighting systems, providing a secure and efficient switching mechanism that minimizes downtime.
Equipped with outer screw terminals, this toggle switch offers enhanced connectivity and stability, critical for maintaining consistent electrical contact in vibrating or high-motion applications. The screw terminals allow for easy, secure wiring connections, accommodating various wire gauges and ensuring a tight fit that resists loosening over time. This design not only simplifies installation and maintenance but also reduces the risk of electrical arcing or failure, a key safety feature in high-power systems. The toggle lever itself is ergonomically designed for easy operation, even when wearing gloves, with a clear on/off position indicator to prevent accidental misalignment.
Beyond its functional strengths, this switch integrates seamlessly into existing electrical systems, meeting industry standards for safety and performance. It undergoes rigorous testing to ensure compliance with voltage and current ratings, short-circuit protection, and endurance, guaranteeing long-term reliability in continuous use. Whether used in off-road vehicles, mining equipment, or manufacturing lines, this high-current metal toggle switch with outer screw terminals delivers the durability, safety, and efficiency that heavy equipment operators demand, making it an indispensable component for critical power control applications.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
