Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802SG3B7T1D22
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
SHOCK ACCELERATION: |
50G |
SHOCK TEST CYCLE: |
3 TIMES IN EACH DIRECTION |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
SHOCK ACCELERATION: |
50G |
SHOCK TEST CYCLE: |
3 TIMES IN EACH DIRECTION |

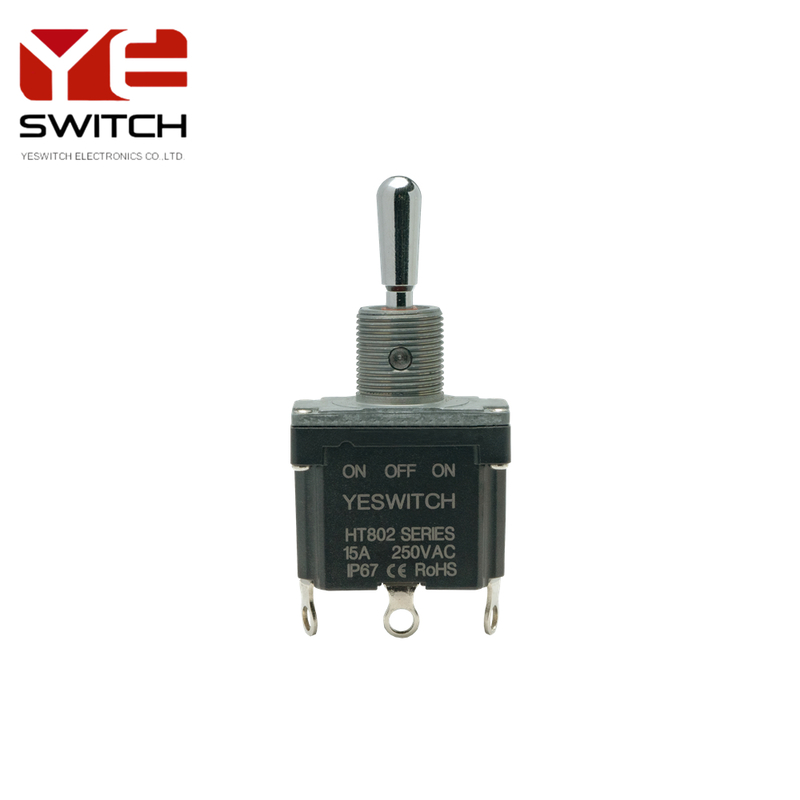

Metal Toggle Switch Single Pole ON-OFF-ON With Solder Terminal
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
This high-performance metal toggle switch features a single pole design with a versatile ON-OFF-ON configuration, making it ideal for a wide range of electrical control applications. Crafted with durable metal housing, the switch offers exceptional resistance to impact, corrosion, and extreme temperatures, ensuring reliable operation in both industrial and commercial environments. The crisp toggle action provides clear tactile feedback, allowing users to easily identify the current position—whether powering devices on, switching between circuits, or turning systems off.
Equipped with high-quality solder terminals, this switch ensures secure and stable electrical connections, minimizing the risk of loose wiring or signal interference. The terminals are designed to accommodate various wire gauges, simplifying installation for professionals. With a robust current rating, the switch can handle moderate to high power loads, making it suitable for use in machinery, automotive systems, audio equipment, and control panels. Its compact size allows for flexible mounting in tight spaces without compromising functionality.
Engineered for long-term durability, this toggle switch undergoes rigorous testing to meet industry standards for performance and safety. The metal construction not only enhances its lifespan but also provides effective shielding against electromagnetic interference, ensuring consistent operation in noisy electrical environments. Whether used in manufacturing facilities, automotive workshops, or home electronics, this ON-OFF-ON toggle switch delivers precise control, easy installation, and reliable performance, making it a versatile choice for any application requiring circuit switching or mode selection.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
