Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802SG3B7T1D11
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
DIELECTRIC WITHSTANDING VOLTAGE: |
1500 VAC(50HZ OR 60HZ) |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
DIELECTRIC WITHSTANDING VOLTAGE: |
1500 VAC(50HZ OR 60HZ) |
VIBRATION FREQUENCY: |
10-55-10HZ IN 1- MIN |

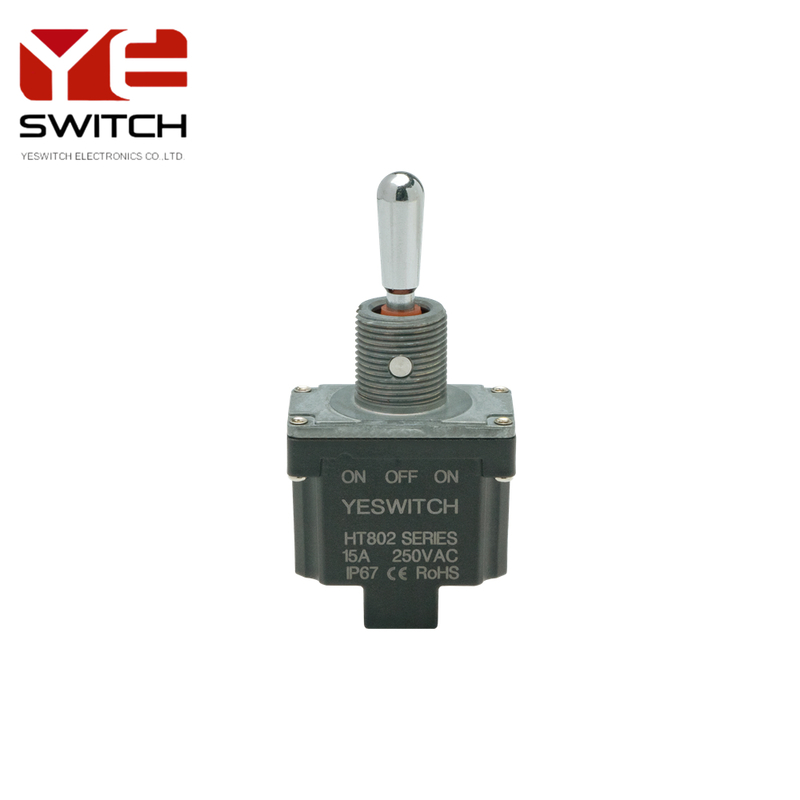

HT802 Series Metal Toggle Switch 15A 125/250V For Heavy Duty Machine
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
The HT802 series is a robust metal toggle switch designed for demanding industrial and commercial applications. With a high current rating of 15A and compatibility with both 125V and 250V circuits, this switch ensures reliable performance in heavy-duty machinery, power tools, and electrical control systems. Its durable metal construction provides superior resistance to wear, impact, and environmental stressors, making it ideal for harsh operating conditions. The toggle mechanism offers a secure, snap-action operation, ensuring consistent switching even under high loads.
Engineered for versatility, the HT802 toggle switch supports a wide range of electrical loads, making it suitable for motors, lighting systems, and industrial equipment. The switch meets stringent safety standards, featuring a flame-retardant housing and corrosion-resistant terminals for long-term reliability. Its screw terminal design ensures secure wire connections, minimizing the risk of loosening due to vibration. The clearly marked ON/OFF positions and ergonomic lever design allow for easy operation, even when wearing gloves, enhancing user convenience in industrial settings.
Built to withstand extreme conditions, the HT802 series features a heavy-duty metal casing that resists dust, moisture, and mechanical stress. The high-quality internal contacts ensure minimal arcing and extended switch life, reducing maintenance needs. Available in multiple configurations, including single-pole and double-pole options, this switch offers flexibility for various wiring setups. Whether used in manufacturing plants, construction equipment, or agricultural machinery, the HT802 toggle switch delivers unmatched durability and performance for critical applications.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
