Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802DG3B3T1D25
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
SHOCK TESTING DIRECTION: |
6 SIDES |
ACTUATION FORCE: |
800-1500 GRAMS |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
SHOCK TESTING DIRECTION: |
6 SIDES |
ACTUATION FORCE: |
800-1500 GRAMS |

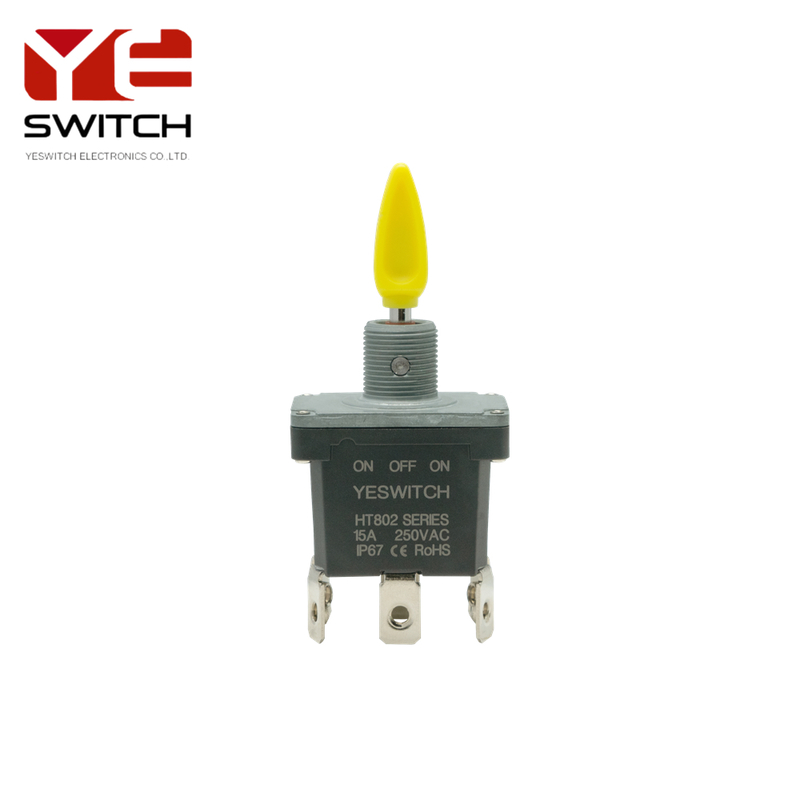

Yellow Handle Industrial Metal Toggle Switch With Outer Screw Terminal
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
The yellow handle industrial metal toggle switch with outer screw terminals is engineered to excel in demanding industrial environments, blending functionality with rugged reliability. Its bright yellow handle serves as a highly visible indicator, allowing for quick identification and easy operation even in cluttered or low-light workspaces, a key advantage in busy factories, workshops, and heavy machinery setups.
Constructed from high-quality industrial-grade metal, the switch boasts exceptional durability. It can withstand harsh conditions such as extreme temperatures, constant vibrations, exposure to dust, moisture, and various industrial chemicals, ensuring long-term performance without compromising functionality. This sturdiness makes it a perfect fit for use in manufacturing equipment, construction machinery, and other industrial systems.
Equipped with outer screw terminals, the switch offers secure and straightforward wiring connections. This design not only simplifies installation and maintenance processes but also ensures stable electrical contact, reducing the risk of loose connections and potential malfunctions. The toggle mechanism operates smoothly with a distinct feel, providing clear feedback to users and preventing accidental operation, thus enhancing overall safety in the workplace.
Whether controlling motors, lighting, or other critical industrial components, this yellow handle toggle switch delivers consistent and dependable performance, making it an essential component for any industrial setup that demands reliability and efficiency.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
