Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802DG1B9T5D25
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
VISUAL EXAMINATION: |
BY VISUAL EXAMINATION CHECK |
SHOCK ACCELERATION: |
50G |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
VISUAL EXAMINATION: |
BY VISUAL EXAMINATION CHECK |
SHOCK ACCELERATION: |
50G |

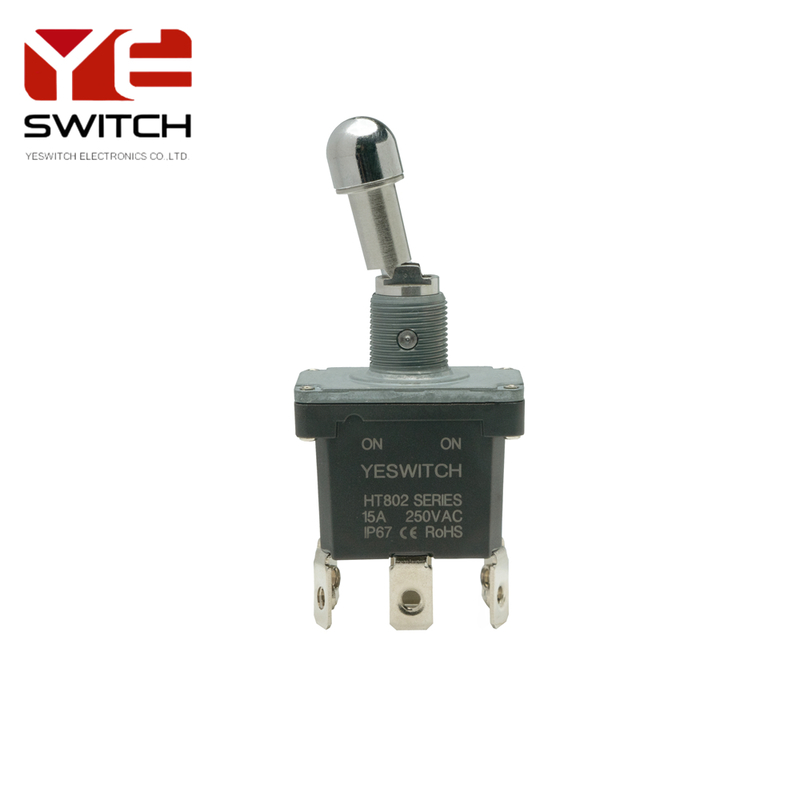

Double Pole Industrial Metal Toggle Switch With Locking Handle For Excavator
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
Built to endure the harsh operating conditions of excavators, the double pole industrial metal toggle switch with a locking handle is a testament to rugged engineering and precision. Constructed from premium, heavy-duty metal alloys, its casing and handle resist corrosion, impact, and extreme temperatures—critical for withstanding dust, mud, hydraulic fluids, and constant vibrations in construction, mining, and earth moving sites.
The double pole design ensures simultaneous control of two independent circuits, making it ideal for managing high-power excavator systems such as hydraulic arms, track drives, auxiliary attachments, or lighting setups. Its locking handle adds a vital safety layer: once engaged, it prevents accidental activation or deactivation, a crucial feature when operators maneuver heavy loads or work near personnel.
Crafted for industrial resilience, the switch tolerates voltage fluctuations and maintains stable conductivity, even in dusty or humid environments. Its metal housing shrugs off impacts from debris, while precision-machined internal components guarantee smooth operation over thousands of cycles. The compact form factor fits seamlessly into excavator control consoles, with secure terminal connections that resist loosening under constant vibration.
From quarry operations to construction sites, this toggle switch delivers reliable performance, combining robust functionality with safety to keep excavators operating efficiently in the toughest conditions.
