Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802DG1B7T1D25
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
VIBRATION DIRECTION: |
3 VERTICAL DIRECTIONS |
SHOCK STANDARD: |
MIL-STD-202F |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100VDC-100M Ohm(Min) |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
HOUSING: |
NYLON (UL94V-0) |
TERMINAL: |
COPPER ALLOY |
CONTACT: |
COPPER ALLOY |
VIBRATION DIRECTION: |
3 VERTICAL DIRECTIONS |
SHOCK STANDARD: |
MIL-STD-202F |

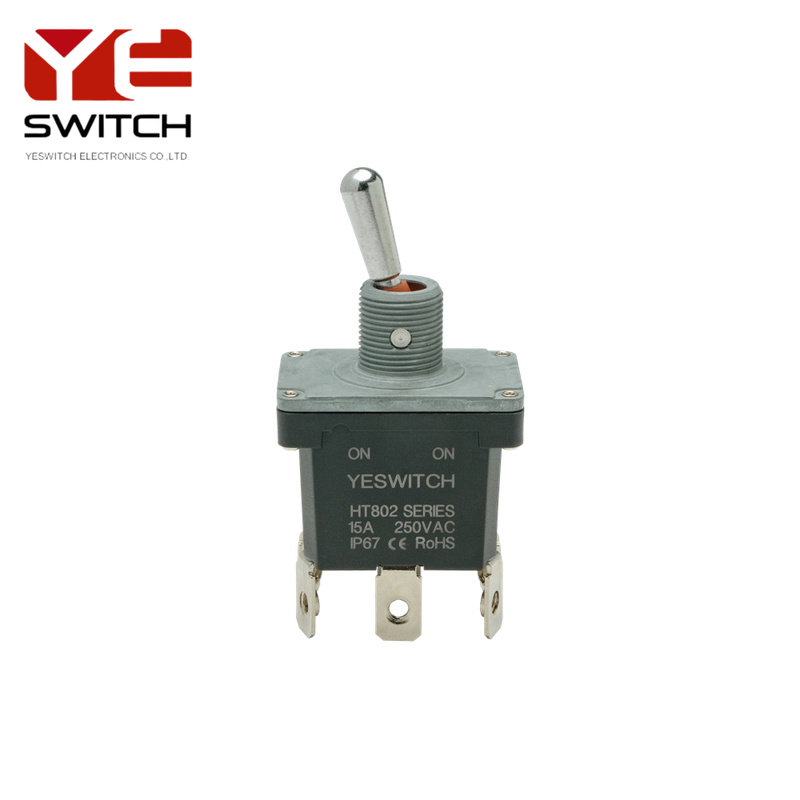

ON-ON Industrial Metal Toggle Switch With Metal Handle For Fire Engine
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
Designed exclusively for the rigorous demands of fire engines, the ON-ON industrial metal toggle switch stands as a paragon of durability and reliability. Crafted from high-grade, corrosion-resistant metal alloys, both its housing and handle are engineered to withstand extreme temperatures, heavy vibrations, and exposure to water, chemicals, and debris—common hazards in emergency firefighting operations.
The switch features a robust ON-ON configuration, enabling seamless transition between two distinct circuits, a critical function for controlling essential fire engine systems such as water pumps, emergency lights, sirens, or auxiliary power units. Its metal handle offers a firm, non-slip grip, ensuring precise operation even when gloves are worn, a necessity for firefighters in high-stress scenarios.
Engineered to meet strict industrial and automotive safety standards, this toggle switch boasts excellent electrical conductivity and insulation, minimizing the risk of short circuits or malfunctions. Its compact design allows for easy integration into crowded fire engine control panels, while reinforced terminals ensure secure wiring connections that hold firm under continuous use.
Whether navigating rough terrain or responding to life-threatening emergencies, this metal toggle switch delivers unwavering performance, making it an indispensable component for maintaining operational efficiency and safety in fire rescue missions.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
