Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: CE,UL,ROHS
Model Number: J212F
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
Model NO.: |
J212G |
Application: |
Riding Lawn Mowers, Garden Machinery, Power Tools, Car Seats, Golf Carts |
Type: |
1NC+1NO |
Rating: |
5A DC24V |
Electrical Life: |
10,000 Cycles |
Mechanical Life: |
75,000 Cycles |
Operating Temperature: |
-40~85 Degree |
Relative Air Humidity: |
45%~85% |
Terminal: |
Brass,Silver Plate |
Plunger: |
PP,UL Rated:94V-2 |
Body: |
PP,UL Rated:94V-2 |
Function: |
1 Normally Closed 1 Normally Open Momentary |
Insulation Resistance: |
100m Ohm Min |
Contact Resistance:: |
50m Ohm Max |
Operating Stroke: |
9.5mm±1.0 |
Operating Pressure: |
1600gf±300gf |
Model NO.: |
J212G |
Application: |
Riding Lawn Mowers, Garden Machinery, Power Tools, Car Seats, Golf Carts |
Type: |
1NC+1NO |
Rating: |
5A DC24V |
Electrical Life: |
10,000 Cycles |
Mechanical Life: |
75,000 Cycles |
Operating Temperature: |
-40~85 Degree |
Relative Air Humidity: |
45%~85% |
Terminal: |
Brass,Silver Plate |
Plunger: |
PP,UL Rated:94V-2 |
Body: |
PP,UL Rated:94V-2 |
Function: |
1 Normally Closed 1 Normally Open Momentary |
Insulation Resistance: |
100m Ohm Min |
Contact Resistance:: |
50m Ohm Max |
Operating Stroke: |
9.5mm±1.0 |
Operating Pressure: |
1600gf±300gf |

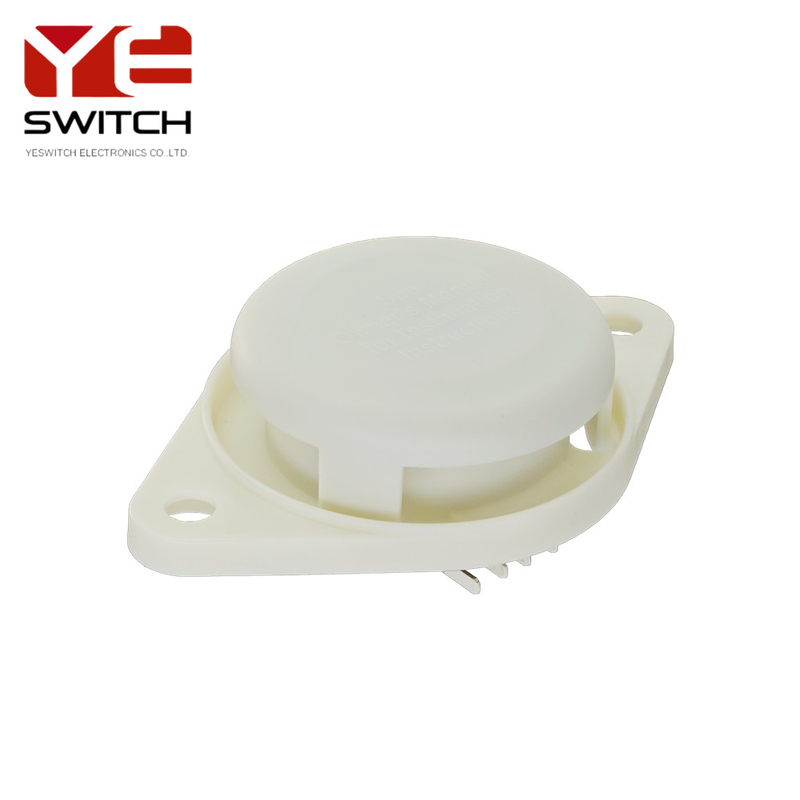

The YESWITCH J212G safety seat switch is a safety device meticulously crafted for riding lawn mowers, golf carts, and various utility vehicles. Built with robust materials to endure the rigors of continuous use, this switch features intelligent auto-activation technology. The moment the operator departs from the seat, it springs into action, instantly severing the power supply.
Key features
CE and UL certification
The product successfully passed both CE and UL certifications. This indicates that it strictly adheres to the series of regulations covered by the Low Voltage Directive and Electromagnetic Compatibility Directive in the EU CE certification during the design and production processes. At the same time, it meets the stringent standards of UL certification for electrical safety and fire protection in the North American market.
Replace famous brand
In terms of quality and performance, the YESWITCH J212G safety switch can rival internationally renowned brands such as Honeywell, NKK, and APEM. It is crafted with selected industrial-grade materials and its casing is made of high impact-resistant and weather-resistant polymer, ensuring stable operation and reliability far exceeding industry standards.
Wide compatibility
The YESWITCH J212G safety switch stands out as a paragon of adaptability, surpassing the limitations of traditional switches. Unlike many options on the market that are restricted to specific models or brands, it has been painstakingly engineered to be a universal fit for a diverse spectrum of OEM and aftermarket applications.
Dependable performance
The switch has undergone extensive long-term reliability tests, simulating diverse real-world scenarios. With a remarkably low failure rate, it effectively reduces breakdown risks and minimizes maintenance requirements, saving both time and costs for users.
Applications
Riding lawn mowers – Prevents blade rotation when the operator is not seated.
Golf carts & Utility vehicles – Ensures safe operation by halting movement when the driver exits.
Industrial & Agricultural equipment – Adds an extra layer of safety for small tractors and turf maintenance vehicles.
Our Company
Yeswitch Electronics Co,.ltd, found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including metal switches, seat safety switches, key switches, push button switches,toggle switches, rocker switches,etc.
Yeswitch have supply all kinds of switches to global market with the good quality and competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
J212G(NO+NC) | |
Operating Pressure: | 1600±300gf |
Operating Stroke: | 9.5±1.0mm |
Function: | NO+NC |
Rating(Resistive load): | 5A 24V DC |
Contact Resistance: | 50mΩMAX |
Insulation Resistance: | 100mΩMIN |
Dielectric Strength: | 1500VAC 1 minute |
Electrical life: | 10,000 cycles |
Mechanical life: | 75,000 cycles |
Operating Temperature: | -40~85 Degree |
Relative Air Humidity: | 45%~85% |
Material | |
Body: | PP,UL rated:94V-2 |
Plunger: | PP,UL rated:94V-2 |
Terminal: | Brass,Silver plate |
