Home > products > Seat Switch > Snap In Momentary Seat Switch Safety NONC 1600gf For Mower

Snap In Momentary Seat Switch Safety NONC 1600gf For Mower

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: CE,UL,ROHS

Model Number: J212G

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: Negotiable

Packaging Details: Carton

Delivery Time: 4-6 Weeks

Payment Terms: T/T

Supply Ability: 7,000/Day

Get Best Price
Chat Now
Product Details
Highlight:

Snap inSeat Switch

,

Seat Switch NONC 1600gf

,

momentary switch For Mower

Model NO.:
J212G
Application:
Riding Lawn Mowers, Garden Machinery, Power Tools, Car Seats, Golf Carts
Type:
1NC+1NO
Rating:
5A 24V DC
Electrical Life:
10,000 Cycles
Mechanical Life:
75,000 Cycles
Operating Temperature:
-40~85 Degree
Relative Air Humidity:
45%~85%
Terminal:
Brass,Silver Plate
Plunger:
PP,UL Rated:94V-2
Body:
PP,UL Rated:94V-2
Function:
1 Normally Closed 1 Normally Open Momentary
Insulation Resistance:
100m Ohm Min
Contact Resistance::
50m Ohm Max
Operating Stroke:
9.5mm±1.0
Operating Pressure:
1600gf±300gf
Model NO.:
J212G
Application:
Riding Lawn Mowers, Garden Machinery, Power Tools, Car Seats, Golf Carts
Type:
1NC+1NO
Rating:
5A 24V DC
Electrical Life:
10,000 Cycles
Mechanical Life:
75,000 Cycles
Operating Temperature:
-40~85 Degree
Relative Air Humidity:
45%~85%
Terminal:
Brass,Silver Plate
Plunger:
PP,UL Rated:94V-2
Body:
PP,UL Rated:94V-2
Function:
1 Normally Closed 1 Normally Open Momentary
Insulation Resistance:
100m Ohm Min
Contact Resistance::
50m Ohm Max
Operating Stroke:
9.5mm±1.0
Operating Pressure:
1600gf±300gf
Product Description
Snap-in Momentary Seat Safety Switch J212G NONC For Mower
Product Description

Introducing our Top Seat Safety Switch, which caters for a variety of applications, including lawn mowers, grass cutters and a variety of garden machinery vehicles.The YESWITCH J212G Safety Switch is a testament to innovation, with an advanced 1 usually on and 1 usually off configuration. This advanced setup provides unparalleled control and adaptability, ensuring seamless integration with your machinery's electrical systems.



It comes with a user-friendly reset button to quickly return to normal operation in the event of an unexpected interruption, eliminating frustrating delays. Its ingenious design features quick toolless installation, reducing maintenance downtime and improving overall operational efficiency. After many rigorous tests, the switch promises reliability even in extreme outdoor conditions.Built with industrial-grade shock-resistant polymers, its sturdy structure not only ensures safe and stable connections but also reduces the risk of electrical failure.



This not only safeguards your valuable garden equipment from potential damage but also extends its lifespan by several years, providing you with a cost-effective and long-lasting solution for all your gardening needs.



The product successfully passed both CE and UL certifications. This indicates that it strictly adheres to a series of regulations covered by the EU CE certification, such as the Low Voltage Directive and the Electromagnetic Compatibility Directive during the design and production processes. At the same time, it meets the stringent standards of UL certification for electrical safety and fire protection in the North American market. From material selection to final product testing, it fully meets the core requirements of both markets in terms of basic safety, health protection, environmental indicators, and consumer rights protection, laying a solid foundation for compliance in entering the mainstream markets of Europe and the United States.



Our Company

Yeswitch Electronics Co,.ltd, found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including metal switches, seat safety switches, key switches,  push button switches,toggle switches, rocker switches,etc.



Yeswitch have supply all kinds of switches to global market with the good quality and competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.



FAQ

Q1: When can I get the quotation ?

A: We are online all day, so you can get quotation within 24h.



Q2: When can I get the samples?

A: It depends on the express, generally 3-10 days.



Q3: Can you accept small order?

A: Yes, we will try our best to help you with your business.



Q4: What's the lead time of mass production?

A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.



Specification:

J212G(NO+NC)
Operating Pressure: 1600±300gf
Operating Stroke: 9.5±1.0mm
Function: NO+NC
Rating(Resistive load): 5A 24V DC
Contact Resistance: 50mΩMAX
Insulation Resistance: 100mΩMIN
Dielectric Strength: 1500VAC 1 minute
Electrical life: 10,000 cycles
Mechanical life: 75,000 cycles
Operating Temperature: -40~85 Degree
Relative Air Humidity: 45%~85%
Material
Body: PP,UL rated:94V-2
Plunger: PP,UL rated:94V-2
Terminal: Brass,Silver plate
Detailed Photos

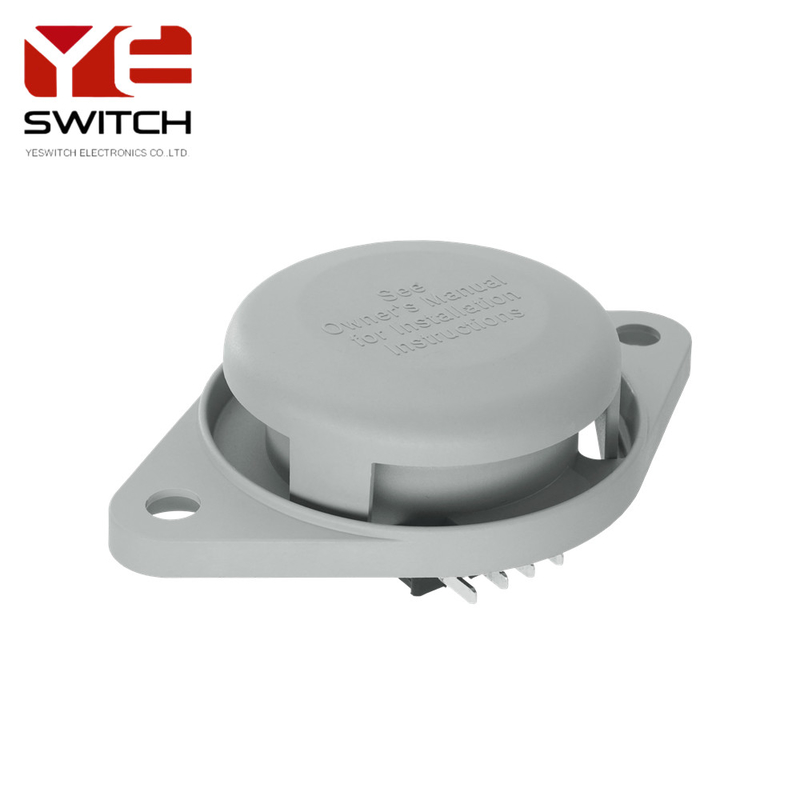

Snap In Momentary Seat Switch Safety  NONC 1600gf For Mower 0Snap In Momentary Seat Switch Safety  NONC 1600gf For Mower 1
