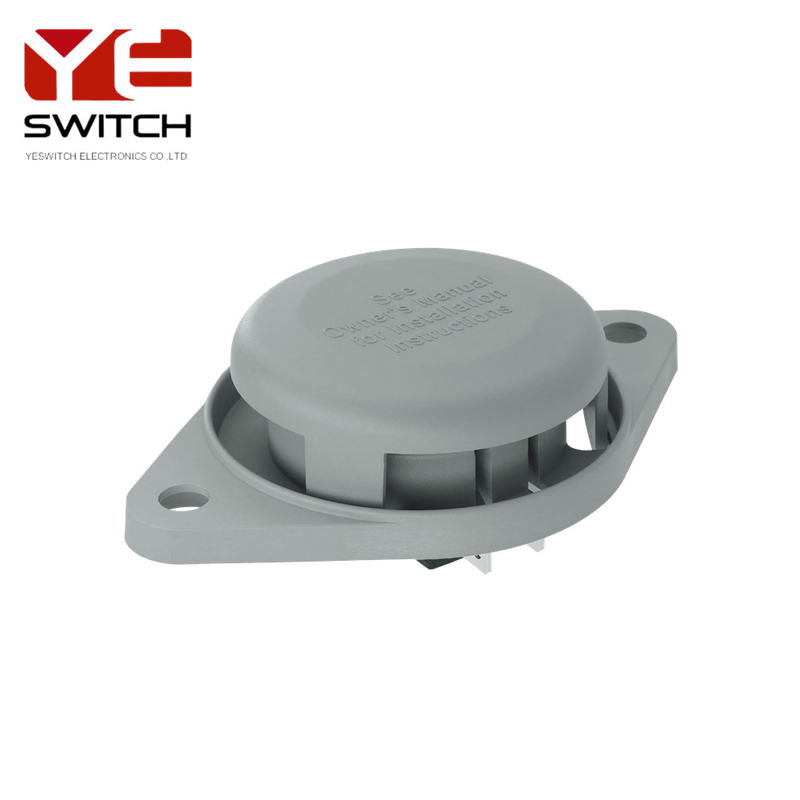

PG -03B Push Button Seat Safety Switch with Momentary for Lawn Mower
Product Description
The PG-03B instantaneous button seat safety switch is a revolutionary addition to the lawn mower safety system. It adopts the principle of instantaneous action and a safe electrical connection can only be established when the operator makes active contact. Once released, the switch immediately disconnects the circuit, cutting off the power supply to the lawn mower engine or moving parts, thereby preventing accidental start-up and ensuring that the operation is stopped immediately when accidentally getting off the vehicle.
This kind of safety switch stands out for its user-centered design feature. The button mechanism is intuitive, allowing the operator to activate or deactivate the safety system with minimal effort. Its compact and durable construction is made of carefully crafted high-impact materials. Installation on various lawn mower models is effortless through a simple two-wire connection, saving time and labor costs.
The advantages of PG-03B are undeniable. Its reliable instantaneous function significantly reduces the risk of accidents and protects operators and bystanders. The solid structure ensures long-term performance and minimizes maintenance requirements to the greatest extent. By integrating the PG-03B into your lawn mower, you not only adhere to strict safety standards, but also improve operational efficiency, providing peace of mind for every lawn mowing task.
Our Company
Yeswitch Electronics Co,.ltd, found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including metal switches, seat safety switches, key switches, push button switches,toggle switches, rocker switches,etc.
Yeswitch have supply all kinds of switches to global market with the good quality and competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
Specification:
|
PG-03B
|
| Operating Pressure: |
1600±300gf |
| Operating Stroke: |
9.5±1.0mm |
| Function: |
(ON)-OFF Momentary |
| Rating(Resistive load): |
5A 124V DC |
| Contact Resistance: |
50mΩMAX |
| Insulation Resistance: |
100mΩMIN |
| Electrical life: |
10,000 cycles |
| Mechanical life: |
75,000 cycles |
| Operating Temperature: |
-40~85 Degree |
| Relative Air Humidity: |
45%~85% |
| Material |
| Body: |
PP,UL rated:94V-2 Black |
| Plunger: |
PP,UL rated:94V-2 Gray |
| Terminal: |
Brass,Silver plate |
