IP68 Heavy Duty Toggle Switch Electrical Lock Handle Screw Terminal

Name: IP68 Heavy Duty Toggle Switch Electrical Lock Handle Screw Terminal
Brand: Dongguan Yeswitch Electronics Co.,Ltd
SKU: HT802 Series
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: IP68/CE/RoHS

Model Number: HT802 Series

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: Negotiable

Packaging Details: Carton

Delivery Time: 4-6 Weeks

Payment Terms: T/T

Supply Ability: 7.000/Day

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ip68 metal toggle switch, ip68 industrial toggle switch, heavy duty metal toggle switch


Contact Resistance:	20m Ohm(Max)	Insulation Resistance:	100VDC-100m Ohm(Min)
Dielectric Strength:	1500VAC-1minute	Mechanical Life Cycle:	100.000 Cycles
Operating Temperature:	-40 To +85 Degrees	Front Seal:	IP68
Resistive Load:	16A 125/250VAC,15A 28VDC	Inductive Load:	15A 28VDC
Actuator:	Copper Alloy	Housing:	Nylon (UL94V-0)
Terminal:	Copper Alloy	Contact:	Copper Alloy
O-Ring:	Silicone Rubber	Sheel:	Stainless Steel
SHOCK ACTION TIME:	11±1M SECONDS	VIBRATION TEST TIME:	2 HOURS EACH DIRECTION

Contact Resistance:	20m Ohm(Max)
Insulation Resistance:	100VDC-100m Ohm(Min)
Dielectric Strength:	1500VAC-1minute
Mechanical Life Cycle:	100.000 Cycles
Operating Temperature:	-40 To +85 Degrees
Front Seal:	IP68
Resistive Load:	16A 125/250VAC,15A 28VDC
Inductive Load:	15A 28VDC
Actuator:	Copper Alloy
Housing:	Nylon (UL94V-0)
Terminal:	Copper Alloy
Contact:	Copper Alloy
O-Ring:	Silicone Rubber
Sheel:	Stainless Steel
SHOCK ACTION TIME:	11±1M SECONDS
VIBRATION TEST TIME:	2 HOURS EACH DIRECTION

Product Description

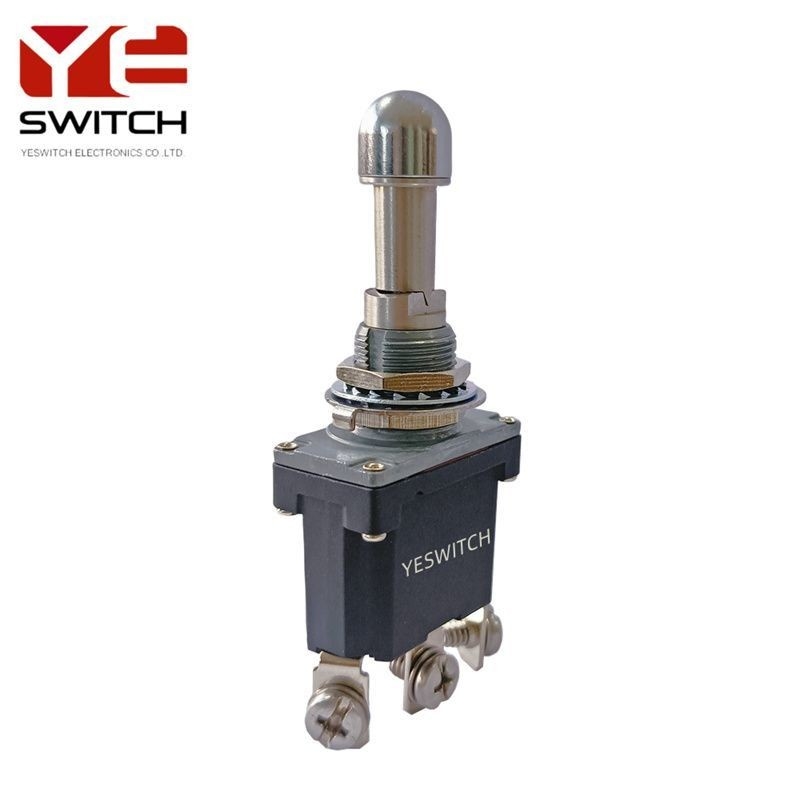

IP68 Heavy Duty Toggle Switch Electrical Lock Handle Screw Terminal

YESWITCH HT802 series toggle switch is specifically designed for industrial-grade applications, incorporating multiple high-performance features that make it exhibit exceptional stability and reliability in the field of engineering machinery equipment, particularly in large and heavy-duty equipment such as road rollers, cranes, milling machines, loaders, and cranes.

Anti-accidental touch handle design: This design effectively prevents operational errors caused by accidental touches, ensuring the safety of operators and the stable operation of equipment. In complex construction site environments, this is particularly important as it significantly reduces the risk of accidents caused by misoperations.

IP68 dust and waterproof rating: This rating means that the toggle switches can withstand extreme outdoor environments, maintaining normal operation whether it's covered in dust or exposed to rain and splashes. This is crucial for engineering machinery that often operates in harsh weather and wet conditions, ensuring continuous operation of the equipment.

SPDT ON-OFF-(ON) function: The single-pole double-throw ON-OFF-(ON) IP68 toggle switch design provides flexible circuit control options. This configuration allows the equipment to waterproof toggle switch between different operating modes, such as transitioning from one operating mode to another or completely shutting off the power when necessary, increasing operational diversity and safety.

Screw terminal connection: Using screw terminals for electrical connections not only simplifies installation but also ensures a secure connection that can withstand high currents and vibrations, guaranteeing the stability and durability of the circuit connection. This is essential for engineering machinery that often operates under high loads and in vibratory environments.

Widely used in engineering machinery equipment: The HT802 series toggle switches, with its rugged durability, high protection level, and flexible functions, is ideal for use in the control systems of heavy machinery such as road rollers, cranes, milling machines, loaders, and cranes. These devices often need to withstand extreme physical pressures and environmental challenges, and the HT802 series metal toggle switch is designed to meet these rigorous requirements.

Our Company

Yeswitch Electronics Co,.ltd, found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including metal switches, seat safety switches, key switches, push button switches,toggle switches, rocker switches,etc.

Yeswitch have supply all kinds of switches to global market with the good quality and competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.

FAQ

Q1: When can I get the quotation ?

A: We are online all day, so you can get quotation within 24h.

Q2: When can I get the samples?

A: It depends on the express, generally 3-10 days.

Q3: Can you accept small order?

A: Yes, we will try our best to help you with your business.

Q4: What's the lead time of mass production?

A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.

SPECIFICATION
CONTACT RESISTANCE:	20m ohm(Max)
INSULATION RESISTANCE:	100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:	1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:	100.000 CYCLES
OPERATING TEMPERATURE:	-40 to +85 DEGREES
FRONT SEAL:	IP68
RESISTIVE LOAD:	10A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:	15A 28VDC

MATERIAL
ACTUATOR:	COPPER ALLOY
HOUSING:	NYLON (UL94V-0)
BUSHING:	ZINC ALLOY
TERMINAL:	COPPER ALLOY
CONTACT:	COPPER ALLOY
O-RING:	SILICONE RUBBER
	STAINLESS STELL
