Highlight:
on off momentary metal push button switch
, oem self lock push button switch
, 8mm momentary switch ISO9001
Model NO.: |
PBM-8 Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Solder,PC Pin,Quick Connect Terminal |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Nut Torque: |
5~14nm |
Operating Pressure: |
350GF ±80GF |
Operating Stroke: |
3.0mm±0.3 |
Protection Grade: |
Ik08 |
Function: |
On-off |
Lamp Type: |
LED |
Lamp Life: |
50000h |
Lamp Current: |
20mA Max |
Rating(Resistive Load): |
0.3A 12V DC |
Contact Resistance: |
50mΩ Max |
Insulation Resistance100mΩ Min: |
100mΩ Min |
Dielectric Strength: |
1000V AC 1 Minute |
Electrical Life: |
50,000 Cycles |
Mechanical Life: |
100,000 Cycles |
Operating Temperature: |
-20°c~80°c |
Transport Package: |
Carton |
Specification: |
8mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Flat |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

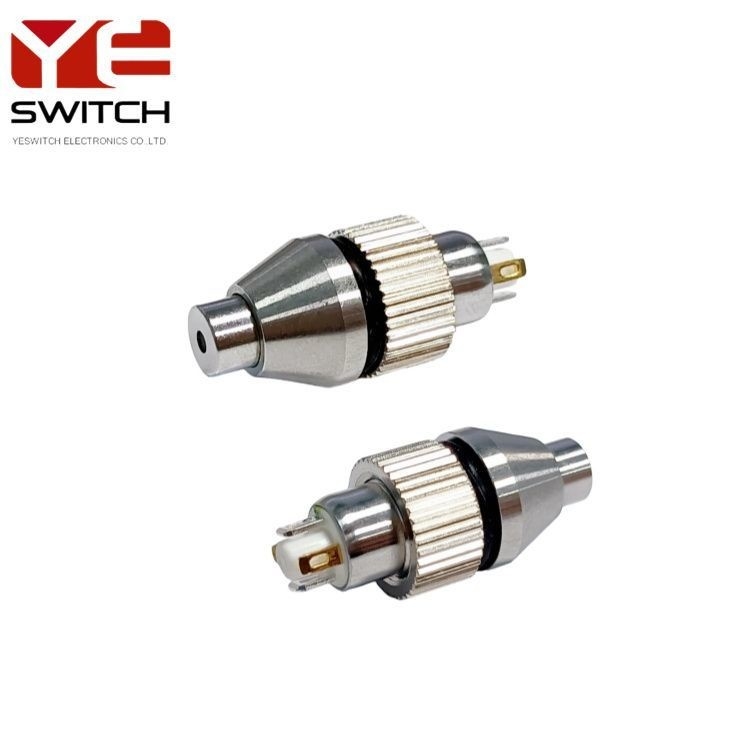

8mm IP68 Self-lock Metal Push Button Switch
Description:
YESWITCH 8mm dust and water resistant IP68 small metal push button switch has self-lock and momentary function.The waterproof push button switch make your equipment more secure.The 8mm waterproof metal switch with high head button design, comfortable grip, which is suitable for a variety of scenes.The 8mm metal switches with stainless steel, corrosion resistant, IP68 dustproof and waterproof,suitable for outdoor waterproof equipment, medical equipment, alarm equipment, lighting fixtures and so on.
The automotive switches with dot luminescence type, red, white, blue, green, yellow, orange and other colors are available to add color to your life. And the metal push button switch has two options with and without lights, can be selected according to your needs. The 8mm automotive push button switches has mechanical life of 1 million cycles, electrical life of 500,000 cycles, long life, the use of rest assured. Whatever,the push button switch operating temperature -20~80 degrees Celsius, a wide range of applications to meet your various needs.
Choose YESWITCH 8mm IP68 dustproof and waterproof metal push button switch to make your equipment smarter and more powerful. Whether outdoors or indoors, this push-button switch gives you the best experience.
