Home Appliance Metal Push Button Switch Momentary 14nm Waterproof Push Button Switch

Name: Home Appliance Metal Push Button Switch Momentary 14nm Waterproof Push Button Switch
Brand: Dongguan Yeswitch Electronics Co.,Ltd
SKU: PBM-8 Series
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YESWITCH

Certification: ISO9001, CCC, VDE, CQC,RoHS,Reach

Model Number: PBM-8 Series

Payment & Shipping Terms

Price: Negotiable

Payment Terms: T/T

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                14nm waterproof push button switch, metal push button switch momentary 14nm, home appliance metal push button switch momentary


Model NO.:	PBM-8 Series	Wiring:	Solder Terminal
Principle:	Capacitive	Application:	Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type:	Normal Close	Number Of Switch:	Single Control Switch
Structure:	Power Built-in Type	Usage:	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind:	Single-pole On-off Switch	Contact Type:	Type C Contact
Detection Method:	Reflection Type	Brand:	Yeswitch
Nut Torque:	5~14nm	Operating Pressure:	350GF±80GF
Operating Stroke:	3.0mm±0.3	Protection Grade:	IP67
Function:	(off)-on	Rating:	0.3A 12V DC
Contact Resistance:	50mΩ Max	Insulation Resistance:	100m0 Min
Dielectric Strength:	1000V AC 1 Minute	Electrical Life:	50,000 Cycles
Mechanical Life:	100,000 Cycles	Operating Temperature:	-20~80 Degree
Button:	SUS	Base:	PA66
Shell:	SUS	Transport Package:	Carton
Specification:	RoHS	Trademark:	Yeswitch
Origin:	Dongguan, China	HS Code:	853650000
Supply Ability:	50, 0000/Month	Package Size:	9.00cm * 8.00cm * 5.00cm
Package Gross Weight:	0.010kg	Customization:	Available
Protection:	Durable, Explosion-Proof, Waterproof, Dust-Proof	Feature:	Flat
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Model NO.:	PBM-8 Series
Wiring:	Solder Terminal
Principle:	Capacitive
Application:	Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type:	Normal Close
Number Of Switch:	Single Control Switch
Structure:	Power Built-in Type
Usage:	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind:	Single-pole On-off Switch
Contact Type:	Type C Contact
Detection Method:	Reflection Type
Brand:	Yeswitch
Nut Torque:	5~14nm
Operating Pressure:	350GF±80GF
Operating Stroke:	3.0mm±0.3
Protection Grade:	IP67
Function:	(off)-on
Rating:	0.3A 12V DC
Contact Resistance:	50mΩ Max
Insulation Resistance:	100m0 Min
Dielectric Strength:	1000V AC 1 Minute
Electrical Life:	50,000 Cycles
Mechanical Life:	100,000 Cycles
Operating Temperature:	-20~80 Degree
Button:	SUS
Base:	PA66
Shell:	SUS
Transport Package:	Carton
Specification:	RoHS
Trademark:	Yeswitch
Origin:	Dongguan, China
HS Code:	853650000
Supply Ability:	50, 0000/Month
Package Size:	9.00cm * 8.00cm * 5.00cm
Package Gross Weight:	0.010kg
Customization:	Available
Protection:	Durable, Explosion-Proof, Waterproof, Dust-Proof
Feature:	Flat
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.
:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.
Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Product Description

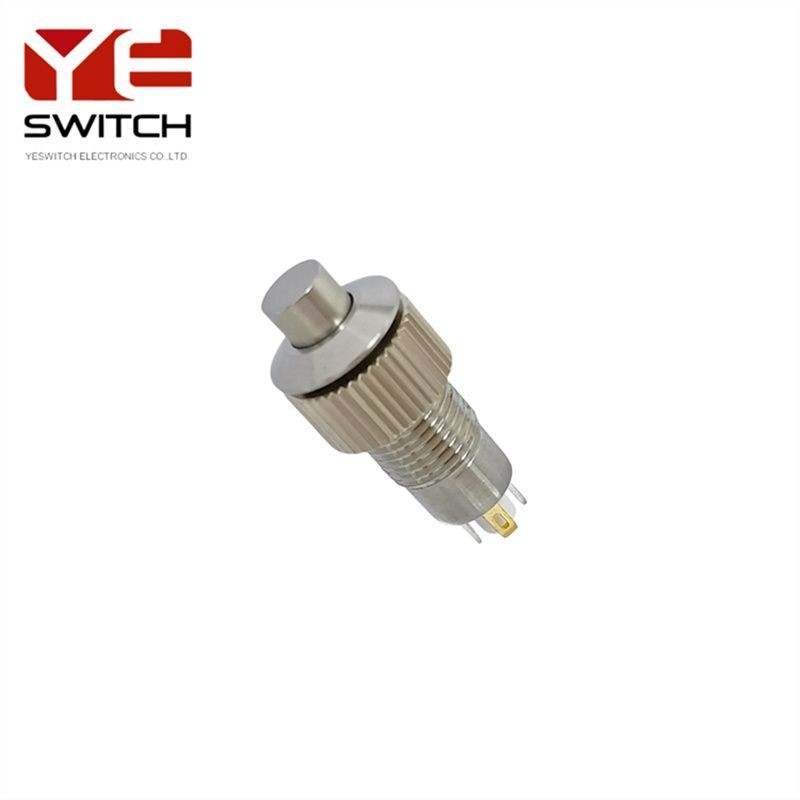

8mm IP67 Waterproof Momentary Metal Push Button Switch
YESWITCH 8mm dust and water resistant IP67 small metal push button switch has momentary function.The waterproof push button switch make your equipment more secure.The 8mm waterproof metal switch with high head button design, comfortable grip, which is suitable for a variety of scenes.

The 8mm automotive push button switches has mechanical life of 1 million cycles, electrical life of 500,000 cycles, long life, the use of rest assured. Whatever,the push button switch operating temperature -20~80 degrees Celsius, a wide range of applications to meet your various needs.

The 8mm metal switches with stainless steel, corrosion resistant, IP67 dustproof and waterproof,suitable for outdoor waterproof equipment, medical equipment, alarm equipment and so on.

Choose YESWITCH 8mm IP67 waterproof momentary metal push button switch to make your equipment smarter and more powerful. Whether outdoors or indoors, this push-button switch gives you the best experience.
