Highlight:
ip67 steel push button
, steel push button with illuminated
, 16a stainless steel momentary push button switch
Model NO.: |
PBM-D22 Series |
Wiring: |
Single Live Line |
Principle: |
Capacitive |
Application: |
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
Type: |
Normal Open |
Number Of Switch: |
Single Control Switch |
Structure: |
Power Built-in Type |
Usage: |
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
Kind: |
Single-pole On-off Switch |
Contact Type: |
Type A Contact |
Detection Method: |
Retro-reflective Mode |
Brand: |
Yeswitch |
Nut Torque: |
0.5~1.4nm |
Operating Pressure: |
700±200GF |
Operating Stroke: |
3.5±0.5mm |
Protection Grade: |
TUV/IP67 Ik08 |
Function: |
On-off Latching |
Lamp Type: |
LED(Green 220VAC) |
Lamp Life: |
50000h |
LED Current: |
20mA Max |
Rating(Resistive Load): |
16A 250V AC |
Contact Resistance: |
50m Ohm Max |
Insulation Resistance: |
100m Ohm Min |
Dielectric Strength: |
3000VAC 1 Minute |
Electrical Life: |
50,000 Cycles |
Mechanical Life: |
100,000 Cycles |
Operating Temperature: |
-20~85 Degrees |
Transport Package: |
Carton |
Specification: |
16/19/22/25/30mm |
Trademark: |
YESWITCH |
Origin: |
China |
HS Code: |
8536500000 |
Supply Ability: |
50, 000/Month |
Package Size: |
9.00cm * 8.00cm * 5.00cm |
Package Gross Weight: |
0.010kg |
Customization: |
Available |
Protection: |
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation |
Feature: |
Flat |
Shipping Cost: |
Contact The Supplier About Freight And Estimated Delivery Time. |
: |
Support Payments In USD |
Secure Payments: |
Every Payment You Make On Made-in-China.com Is Protected By The Platform. |
Refund Policy: |
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

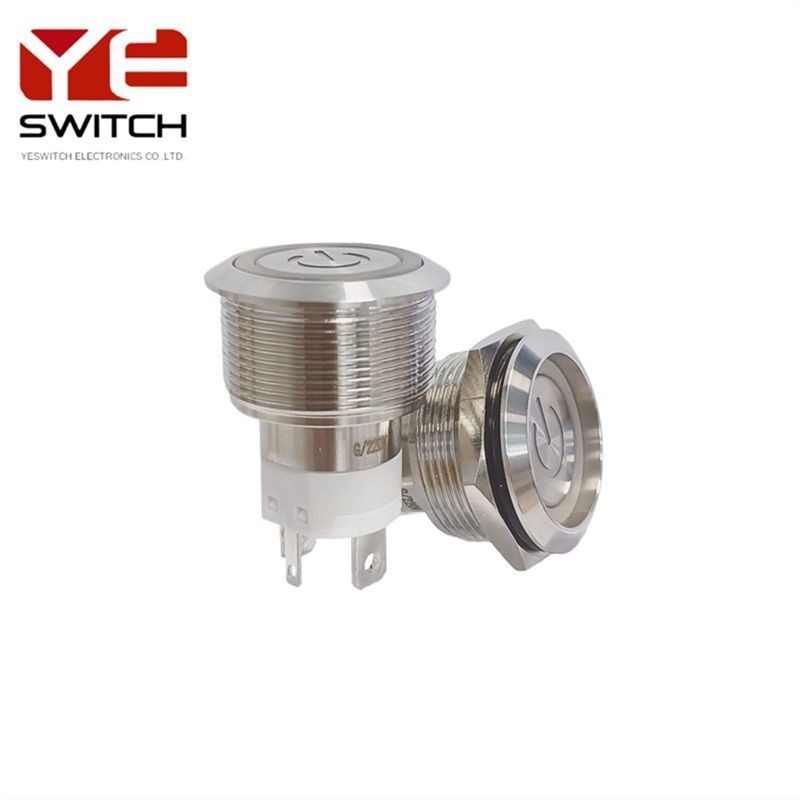

16A High Current IP67 Metal Switch With Illuminated
Product Description
With a remarkable capacity to handle 16A/250VAC,this miniature waterproof push button switches deliver outstanding power in a compact design.The metal push button switch features a 16/19/22/25/30mm mounting diameter and is built to withstand harsh environments with its IP67 waterproof rating, ensuring complete protection against water, dust and moisture. Additionally, it boasts an IK08 rating, making water-proof metal switches highly resistant to impact and mechanical stress.
YESWITCH 16A high current IP67 rated metal push button switch with UL certification.A compact and powerful high-current waterproof push button switch that combines exceptional performance with a premium look and feel. Constructed with a shell made of stainless steel, the metal switches exude durability and sophistication, making it a reliable choice for any application.The anti-vandal switches flat-headed design, coupled with the latching type operation,ensures comfortable and secure operation.
Stay informed with the integrated annular (ring+power) plus luminous line LED indication, providing clear visual feedback on the switch's status.
Upgrade your control system with the 16A PBM series and experience the perfect combination of power, durability, and elegance. With its compact size, high current capacity, and premium design, this metal push button switch is a standout choice for any application that demands reliable performance and exceptional quality.
