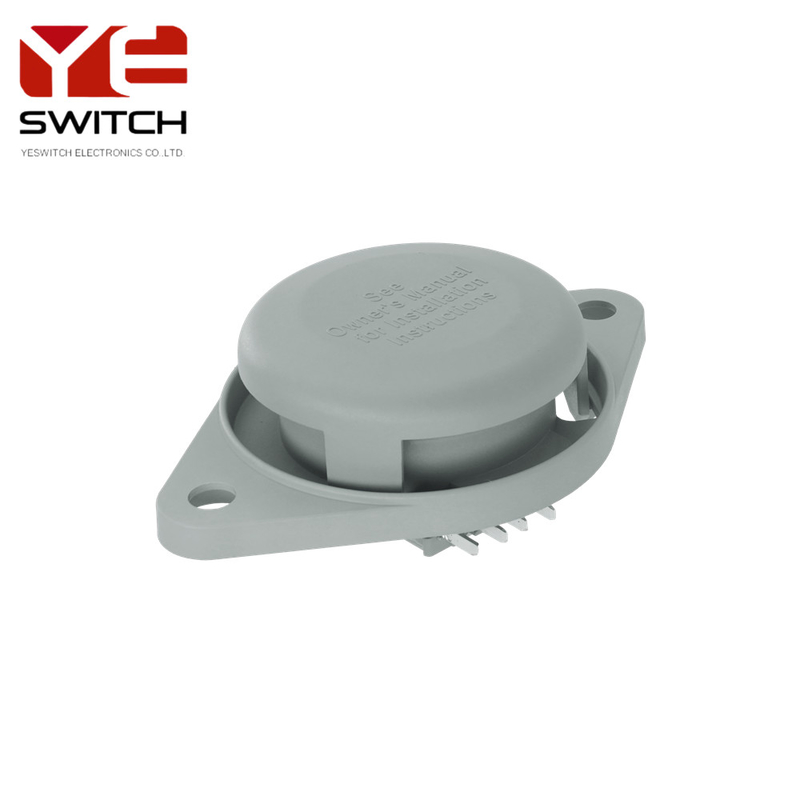

J212F Ncnc Seat Safety Switch For Agricultural Machinery
Product Description
On the riding or lawn mowers, the safety seat switch of the seat is crucial.The YESWITCH J212F push button switch is widely used in lawn mowers, golf carts, heavy mechanical vehicles and other equipment.The seat safety switch replaces Delta 6444-02,6444-602,6444-82 and fits to all kinds of brands STIGA,John Deere,CUB CADET,CRAFTSMAN.
The momentary push button switch Featuring a normally opened normally opened configuration,4 terminals snap mount configuration,specially designed for use in the field of garden machinery.The J212F seat safety switch provides a reliable and efficient solution for controlling the seat and position as well as activating the machine.With a snap-in design that is easy to install and remove,the plunger seat safety switch is a durable and reliable option.
The seat safety switch can withstand the demands of heavy use and is ideal for landscapers,gardeners and industrial workers.And the push button seat switch can ensure the safety of the equipment during use and provide reliable protection for the user.Therefore, it is very important to choose a suitable seat safety switch.Upgrade your equipment with the YESWITCH J212F Push button seat switch and enjoy its convenient,safe,and efficient operation.
Our Company
Yeswitch Electronics Co,.ltd, found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including metal switches, seat safety switches, key switches, push button switches,toggle switches, rocker switches,etc.
Yeswitch have supply all kinds of switches to global market with the good quality and competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
Specification:
|
J212F(2NC)
|
| Operating Pressure: |
1600±300gf |
| Operating Stroke: |
9.5±1.0mm |
| Function: |
2NC |
| Rating(Resistive load): |
5A 24V DC |
| Contact Resistance: |
50mΩMAX |
| Insulation Resistance: |
100mΩMIN |
| Dielectric Strength: |
1500VAC 1 minute |
| Electrical life: |
10,000 cycles |
| Mechanical life: |
75,000 cycles |
| Operating Temperature: |
-40~85 Degree |
| Relative Air Humidity: |
45%~85% |
| Material |
| Body: |
PP,UL rated:94V-2 |
| Plunger: |
PP,UL rated:94V-2 |
| Terminal: |
Brass,Silver plate |
