Product Details
Place of Origin: China
Brand Name: YESWITCH
Certification: IP68,CE,RoHS
Model Number: HT802DG3B3T1D11
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Negotiable
Packaging Details: Carton
Delivery Time: 4-6 Weeks
Payment Terms: T/T
Supply Ability: 7,000/Day
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
VIBRATION DIRECTION: |
3 VERTICAL DIRECTIONS |
RESISTANCE HIGH TEMPERATURE: |
85±2℃ |
RELATIVE HUMIDITY: |
90~95% |
WAVE SOLDERING: |
PCB IS 1.6MM IN THICKNES |
DURATION OF SOLDER HEATED: |
5 SECONDS (MAX) |
CONTACT RESISTANCE: |
20MΩ MAX(INITIAL) |
INSULATION RESISTANCE: |
100MΩ MIN/500VDC |
DIELECTRIC STRENGTH: |
1500VAC-1MINUTE |
MECHANICAL LIFE CYCLE: |
100.000 CYCLES |
OPERATING TEMPERATURE: |
-40 To +85 DEGREES |
FRONT SEAL: |
IP68 |
RESISTIVE LOAD: |
16A 125/250VAC,15A 28VDC |
INDUCTIVE LOAD: |
15A 28VDC |
LEVER: |
COPPER ALLOY |
VIBRATION DIRECTION: |
3 VERTICAL DIRECTIONS |
RESISTANCE HIGH TEMPERATURE: |
85±2℃ |
RELATIVE HUMIDITY: |
90~95% |
WAVE SOLDERING: |
PCB IS 1.6MM IN THICKNES |
DURATION OF SOLDER HEATED: |
5 SECONDS (MAX) |

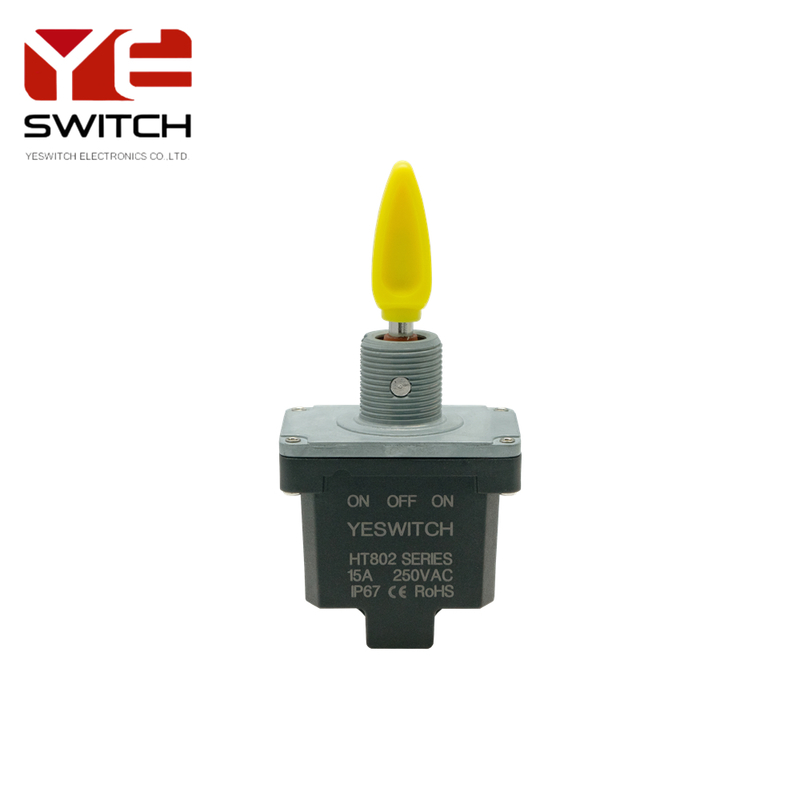

Yellow Booted Handle Metal Toggle Switch With Screw Terminal
| SPECIFICATIONS | |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING | |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL | |
|
ACTUATOR: |
COPPER ALLOY |
|
HOUSING: |
NYLON (UL94V-0) |
|
BUSHING: |
ZINC ALLOY |
|
TERMINAL: |
COPPER ALLOY |
|
CONTACT: |
COPPER ALLOY |
|
O-RING: |
SILICONE RUBBER |
|
SHEEL: |
STAINLESS STELL |
The Yellow Booted Handle Metal Toggle Switch with Screw Terminal merges high visibility with industrial-grade durability, making it a standout choice for applications where both functionality and visibility matter. The vibrant yellow boot covering the handle serves a dual purpose: it enhances visibility in cluttered workspaces, allowing operators to quickly locate the switch even in low-light conditions, and provides an extra layer of protection against dust, moisture, and minor impacts. Crafted from robust metal, the switch body withstands heavy use, corrosion, and extreme temperatures, ensuring reliable performance in factories, construction sites, and outdoor equipment.
At the heart of this switch is its secure screw terminal design, which guarantees stable electrical connections under high vibration or frequent use. The terminals accommodate various wire gauges, simplifying installation and ensuring consistent conductivity without loosening over time—a critical feature for maintaining safety in power distribution or machinery control systems. The toggle mechanism operates with a crisp, tactile action, offering clear feedback to prevent accidental activation or misalignment, while the yellow boot adds a textured grip for easy operation, even with gloved hands.
Engineered for versatility, this metal toggle switch is suitable for a wide range of industrial applications, from controlling conveyor belts and power tools to managing auxiliary systems in heavy vehicles. Its compact size allows for seamless integration into control panels with limited space, while the combination of metal housing and insulated boot ensures compliance with strict safety standards for electrical insulation and mechanical resilience. Whether used in manufacturing facilities, construction equipment, or marine environments, the Yellow Booted Handle Metal Toggle Switch delivers a reliable, user-friendly solution that prioritizes visibility, durability, and secure connectivity.
Our Company
Yeswitch Electronics Co,.ltd, found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including metal switches, seat safety switches, key switches, push button switches,toggle switches, rocker switches,etc.
Yeswitch have supply all kinds of switches to global market with the good quality and competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
